S275J2H EN 10219 Square Hollow Section
Cold Formed EN 10219 S275J2H Square Hollow Section
Cold Formed EN 10219 S275J2H Square Hollow Section Manufacturer & Supplier in Mumbai, India.
Cold Formed S275J2H Mild Steel Square Hollow Section Exporters, S275J2H CS Cold Formed Square Pipes Distributors, Cold Formed EN 10219 S275J2H Square Box Sections, Cold Formed EN 10219 S275J2H SHS Pipe, EN 10219 S275J2H MS Cold Formed Square Tube Stockists, Carbon Steel S275J2H Square Hollow Section Suppliers in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed EN 10219 S275J2H Square Hollow Section. The EN 10219 S275J0H square hollow section is a type of cold-formed steel structural hollow section. These sections are widely used in construction and engineering applications due to their strength, durability, and versatility.
This Cold Formed EN 10219 S275J2H Square Hollow Section ERW pipe has 1.60% manganese, 0.55% silicon, and up to 0.22% carbon, as well as phosphorus and sulfur levels up to 0.030%. The length of Cold Formed EN 10219 S275J2H Square Hollow Section EFW Pipes spans from 6000mm to 14000mm, with wall thicknesses ranging from 0.5mm to 25mm. Customers can order these pipes according to their specifications.
S275J2H Cold Formed Welded Structural SHS are often produced at high temperatures. It is effective at temperatures ranging from 932 to 1472 degrees Fahrenheit. In continuous usage, it can withstand temperatures of up to 1650.2 degrees Celsius. These Cold Formed EN 10219 S275J2H Square Box Sections have lower resistance to air and water. This Cold Formed EN 10219 S275J2H Square Hollow Section pipe and tube standard specification includes ASTM, ASME, DIN, and EN. The producers are also creating it with national and international product standards in mind, ensuring excellence in quality.
EN 10219 S275J2H SHS Tubing is used to construct structural frameworks for buildings and other infrastructure projects. It strengthens and supports the building, ensuring its safety and security.
EN 10219 Cold Formed S275J2H ERW SHS Pipes Dealers in India., Grade S275J2H Cold Formed Welded Structural Square Hollow Section, BS EN 10219 S275J2H Cold Formed SHS Tubes, EN 10219 S275J2H Seamless Cold Formed Square Hollow Section Tubing Supplier in India.
Key Standards
EN 10219: Cold-formed welded structural hollow sections of non-alloy and fine grain steels.
S275: Minimum yield strength is 275 MPa
J2: Impact tested at -20°C with a minimum energy of 27 Joules.
H: Denotes Hollow Sections.
Cold Formed EN 10219 S275JOH Square Hollow Section Specifications
| Standard No | BS EN 10219 - Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels |
| Grade | S275J2H |
| SHS (Square Hollow Sections) Sizes | 20*20mm-400*400mm |
| Outside Diameter | 21.3—457.2mm |
| Wall Thickness | 1.8—-14.27mm |
| Length | 6000 – 12 000/18 000 mm |
| Straightness | Min 1 = 200 of any lengths measured along the centre line unless otherwise specifically managed |
| Tolerance | max 2 ± 0.05 mm |
| End Finish | mill-cut finish without further machining, Plain ended-Mechanically sheared |
| Surface Finish | Black without any surface treatment of oiling /varnishing. |
| Weldability | Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating. |
EN 10219 S275J2H Square Hollow Pipes and Tubing Material Equivalent
| Steel grade | Maximum CEV for nominal thicknesses ≤40mm |
|
| Steel name | Steel number | |
| S275J2H | 1.0138 | 0,40 |
EN 10219 S275J2H Square Hollow Section Chemical Properties
| Steel Grade | Chemical Composition Limits (%) | |||||
|---|---|---|---|---|---|---|
| C Max. | Si Max. | Mn Max. | P Max. | S Max. | N Max. | |
| S275J2H | 0.20 | – | 1.50 | 0.030 | 0.030 | – |
EN 10219 S275J2H Square Hollow Pipes & Tubes Mechanical Strength
| Steel Grade | Mechanical Properties | Impact Energy (KV J) | ||||
|---|---|---|---|---|---|---|
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Test Temperature At Test Temperature of ℃ | |||
| -20 | 0 | 20 | ||||
| S275J2H | 275 | 410-560 | 23 | 27 | – | – |
Types of EN 10219 S275J0H Hollow Section Square

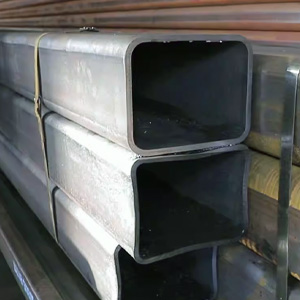

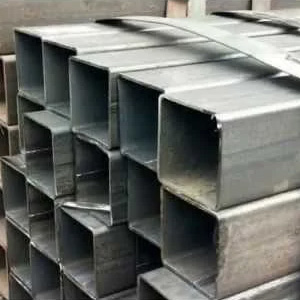

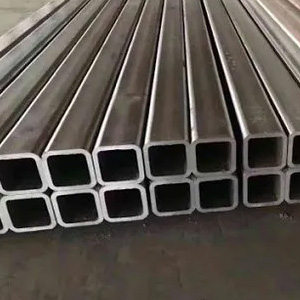

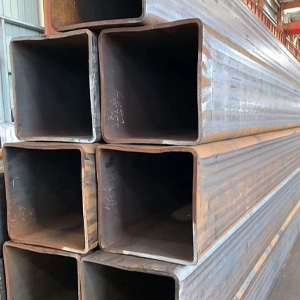

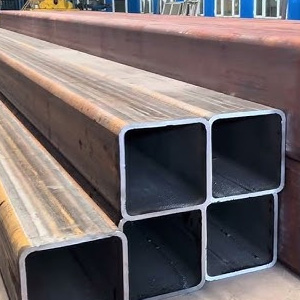

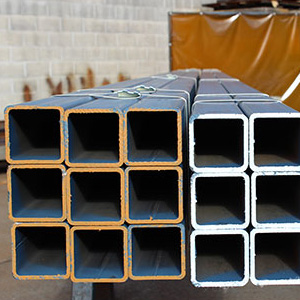

S275J2H EN 10219 Square Hollow Pipes
EN 10219 S275J2H Square Hollow Tubing
S275J2H Structural Square Hollow Sections
EN 10219 S275J2H Welded Square Hollow Pipes
cold formed S275J2H SHS Tube
Cold Formed EN 10219 S275J2H Square Hollow Section Size Chart
| Size mm | kg/m | Size mm | kg/m |
|---|---|---|---|
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
EN 10219 S275J2H SHS Dimensional Tolerances
| Characteristic | Square Hollow Sections |
| Outside Dimension | ± 1% with a min of ± 0.5mm |
| Thickness (T) | T≤5mm: ±10% |
| T>5mm: ± 0.5mm | |
| Out-of-Roundness | – |
| Convexity | Max .8% with min 0.5mm |
| Squareness of side | 90° ± 1° |
| External Corner Profile | T≤6mm: 1.6T to 2.4T |
| 6<T≤10mm: 2.0T to 3.0T | |
| T,10: 2.4T to 3.6T | |
| Twist | 2mm plus 0.5mm/m |
| Straightness | 0.15% of total |
| Mass | ±6% on individual length |
Buy High Quality Cold Formed EN 10219 S275J2H Square Hollow Section
Request the latest EN 10219 S275J2H SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
EN 10219 S275J0H SHS Available Types
| EN 10219 Cold Formed CS Square Hollow Section Supplier in Mumbai | S275J2H Welded Square Tubing, |
| S275J2H Cold Formed Square Box Sections | S275J2H Seamless Square Hollow Section Stockist |
| Cold Formed BS EN 10219 S275J2H CS Hollow Square Tube, | Welded Cold Formed EN 10219 S275J2H SHS Pipe |
| S275J2H Cold Formed SHS Tube | EN 10219 S275J2H Structural Steel Piping |
| High Temperature 10219 S275JOH Pipes | EN 10219 S275J2H MS Square Hollow Section Pipe |
| S275J2H Cold Rolled Square Hollow Sections Supplier | EN 10219 S275J2H Cold Formed ERW SHS Manufacturer |
| EN 10219 S275J2H Cold Formed Seamless Pipe | EN 10219 S275J2H Cold Formed ERW Pipes |
| EN 10219 S275J2H Carbon Steel Welded SHS | EN 10219 Cold Formed S275J2H MS SHS Tube |
| S275J2H Electric Resistance Welded Cold Formed SHS Tubes | S275J2H Cold Formed Square Hollow Structural Sections |
| Schedule 40 S275J2H Seamless Pipes | Cold formed EN 10219 S275J2H structural hollow sections (CFSHS) |
Cold Formed S275J2H SHS Manufacturing Process
EN 10219 S275J2H Cold Formed Square Hollow Sections – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
