S235JRH Hot Finish EN 10210 Square Hollow Section
Hot Finish EN 10210 S235JRH Square Hollow Section
HOT FINISH EN 10210 S235JRH SQUARE HOLLOW SECTION MANUFACTURER, EN 10210 S235JRH SUPPLIER IN MUMBAI, INDIA.
Hot Finish EN 10210 S235JRH Seamless Square Hollow Section, S235JRH Hot Finish SHS, EN 10210 S235JRH HF Square Hollow Sections, EN 10210 S235JRH CS Hot Finish Square Hollow Section, Hot Finish S235JRH CS SHS Tube, S235JRH Hot Finish Square Tube, EN 10210 S235JRH Hot Finish Welded Square Hollow Section, Hot Finish EN 10210 S235JRH ERW SHS Tubing, EN 10210 S235JRH Hot Finish Square Hollow Section Welded Tube, S235JRH MS Hot Finish Square Section, Hot Finish S235JRH SHS Seamless Pipes in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Hot Finish EN 10210 S235JRH Square Hollow Section. The square hollow section shape of this product provides excellent strength-to-weight ratio, making it an ideal choice for applications where weight reduction is critical,.
One of the key benefits of Hot Finish EN 10210 S235JRH Structural Square Hollow Sections Tubing is its hot-finished manufacturing process, which involves heating the steel to a high temperature and then forming it into the desired shape. The Hot Finish EN 10210 S235JRH Welded SHS pipes is available in a range of sizes, from 20x20mm to 500x500mm, and can be supplied in various lengths, including standard lengths of 6 meters and 12 meters, as well as custom lengths to meet specific customer requirements.
These EN 10210 Hot Finish S235JRH Seamless SHS undergoes a finishing process at elevated temperatures, improving mechanical properties like toughness and dimensional accuracy. The benefits of EN 10210 S235JRH Hot Finished Square Metal Box Section include low internal stress, smooth and flat pipe body, tight and strong welds, comprehensive specifications and models, and flexible modification.
Hot Finish EN 10210 S235JRH Square Hollow Section is commonly used in a wide range of applications, including Building frames and structures, Bridge construction, Civil engineering projects, Industrial equipment and machinery, Furniture and fixtures, Automotive and aerospace industries etc.
S235JRH Hot Finish Square Pipe, S235JRH HFSHS Supplier, Hot Rolled S235JRH Mild Steel Square Hollow Section Exporters, Hot Finish EN 10210 S235JRH SHS Pipe, S235JRH CS Hot Finished Square Pipes Distributors in Mumbai, Hot Finish EN10210 S235JRH Square Box Sections, Carbon Steel S235JRH Hot Finish Square Hollow Section Suppliers in Mumbai, EN10210 S235JRH MS Hot Finished Square Tube Stockists, BS EN 10210 S235JRH Hot Finish SHS Tubes, EN 10210 Hot Finish S235JRH ERW SHS Pipes Dealers in India.
Key Standards
EN 10210: covers hot-finished structural hollow sections made of non-alloy and fine-grain structural steels.
S235: Indicates the minimum yield strength of 235 MPa.
JRH: J: Specifies the impact test category at 20°C. R: Stands for "room temperature." H: Refers to hollow section.
Hot Finish EN 10210 S235JRH Square Hollow Section Specifications
| Standard No | BS EN 10210 - Hot finished structural hollow sections of non-alloy and fine grain steels |
| Grade | S235JRH |
| SHS (Square Hollow Sections) Sizes | 20*20mm-400*400mm |
| Outside Diameter | 21.3—457.2mm |
| Wall Thickness | 1.8—-14.27mm |
| Length | 6000 – 12 000/18 000 mm |
| Straightness | Min 1 = 200 of any lengths measured along the centre line unless otherwise specifically managed |
| Tolerance | max 2 ± 0.05 mm |
| End Finish | mill-cut finish without further machining, Plain ended-Mechanically sheared |
| Surface Finish | Black without any surface treatment of oiling /varnishing. |
| Weldability | Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating. |
Hot Finish EN 10210 S235JRH Square Hollow Pipes and Tubing Material Equivalent
| Steel grade | Maximum CEV for nominal thicknesses ≤40mm |
|
| Steel name | Steel number | |
| S235JRH | 1.0039 | 0.35% |
Hot Finish EN 10210 S235JRH Square Hollow Pipes and Tubing Material Equivalent
| Steel grade | Maximum CEV for nominal thicknesses ≤40mm |
|
| Steel name | Steel number | |
| S235JRH | 1.0039 | 0.35% |
Hot Finish EN 10210 S235JRH Square Hollow Section Chemical Composition
| Steel Grade | % by mass maximum | |||||||
| Steel Name | Steel Number | C specified thickness (mm) | Si | Mn | P | S | N | |
| _40 | 40 _ 120 | |||||||
| S235JRH | 1.0039 | 0.17 | 0.20 | - | 1.40 | 0.040 | 0.040 | 0.009 |
Hot Finish EN 10210 S235JRH Square Hollow Pipes & Tubes Mechanical Strength
| Steel Grade | Minimum Yield Strength MPa | Tensile Strength MPa | Elongation | Impact Energy | |||
| Steel name | Steel number | thickness(mm) | thickness(mm) | % (min) | (KV J) (min) | ||
| ≤ 16 | 16 to ≤40 | ≤3 | 3 ≤40 | ≤40 mm | test temperature | ||
| S235JRH | 1.0039 | 235 | 225 | 360-510 | 360-510 | 24 | 20℃ |
Types of EN 10219 S355J2H Hollow Section Square
S235JRH Hot Finish EN 10210 Square Hollow Pipes
Hot Finish EN 10210 S235JRH Square Hollow Tubing
Hot Finish EN 10210 S235JRH Structural Square Hollow Sections
Hot Finish EN 10210 S235JRH Welded Square Hollow Pipes
Hot Finish EN 10210 S235JRH SHS Tube
Hot Finish EN 10210 S235JRH Square Hollow Section Size Chart
| Size mm | kg/m | Size mm | kg/m |
|---|---|---|---|
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
Hot Finish EN 10210 S235JRH SHS Dimensional Tolerances
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD & 80 mmWall 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall 12 mmWall - 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD 40 mmOD 40 - 80 mmOD & 80 Wall Thickness; 6 mm Wall Thickness6 - 8 mm Wall Thickness & 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
En 10210 Grade S235JRH Welded Pipe Standard length Tolerances
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
|---|---|---|
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
Buy High Quality Hot Finish EN 10210 S235JRH Square Hollow Section
Request the latest EN 10219 S235JRH Hot Rolled SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
Hot Finish EN 10210 S235JRH SHS Available Types
| Welded DIN 17120 Hot Finish Pipes | EN 10210 S235JRH Black Mild Steel Tube Square Hollow Section |
| En10210 S235JRH Seamless and Welded Black Square Pipes | EN 10210 S235JRH Hot Formed steel Square Hollow Pipe |
| Hot Finish 10210-1 S235JRH Pipes | 10210-2 S235JRH Lined Pipes |
| SCHED 20 DIN 17120 S235JRH Boiler Seamless Pipes | Hot Dipped Galvanized Gr. S235JRH Square Pipes |
| High Temperature 10210 S235JRH Pipes | EN 10210 S235JRH Structural Steel Seamless Pipes |
| EN 10210 S235JRH Hot Finish SHS Supplier in Mumbai | S235JRH Welded Square Tubing, |
| S235JRH Hot Finish Square Box Sections | S235JRH Seamless Square Hollow Section Stockist |
| Hot Finish BS EN 10210 S235JRH CS Hollow Square Tube, | Welded Hot Finish EN 10210 S235JRH SHS Pipe |
| S235JRH Hot Finish SHS Tube | EN 10210 S235JRH Structural Steel Piping |
| High Temperature 10210 S235JRH Pipes | EN 10210 S235JRH MS Square Hollow Section Pipe |
| S235JRH Cold Rolled Square Hollow Sections Supplier | EN 10210 S235JRH Hot Finish ERW SHS Manufacturer |
| EN 10210 S235JRH Hot Finish Seamless Pipe | EN 10210 S235JRH Hot Finish ERW Pipes |
| Hot Rolled EN 10210 S235JRH Carbon Steel Welded SHS | EN 10210 Hot Finish S235JRH MS SHS Tube |
| S235JRH ERW Hot Finish SHS Tubes | S235JRH Hot Rolled Square Hollow Structural Sections |
| Schedule 40 S235JRH Seamless Pipes | Hot Finish S235JRH Structural Hollow Sections Exporter |

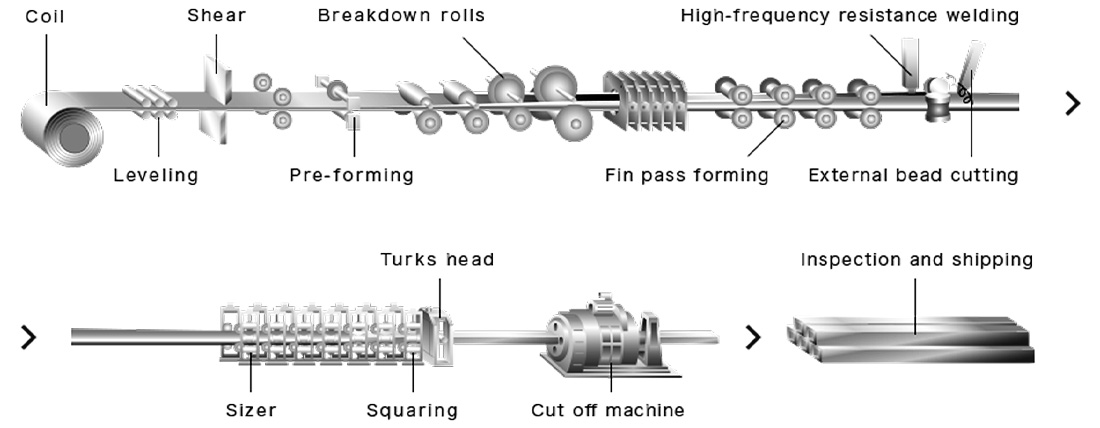

Hot Finish EN 10210 S235JRH SHS Manufacturing Process
EN 10210 S235JRH Hot Finish Square Hollow Sections – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
