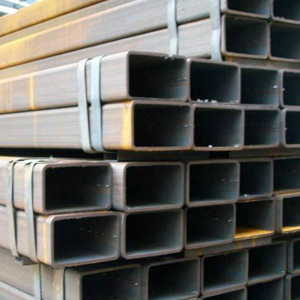

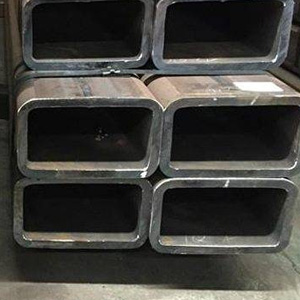

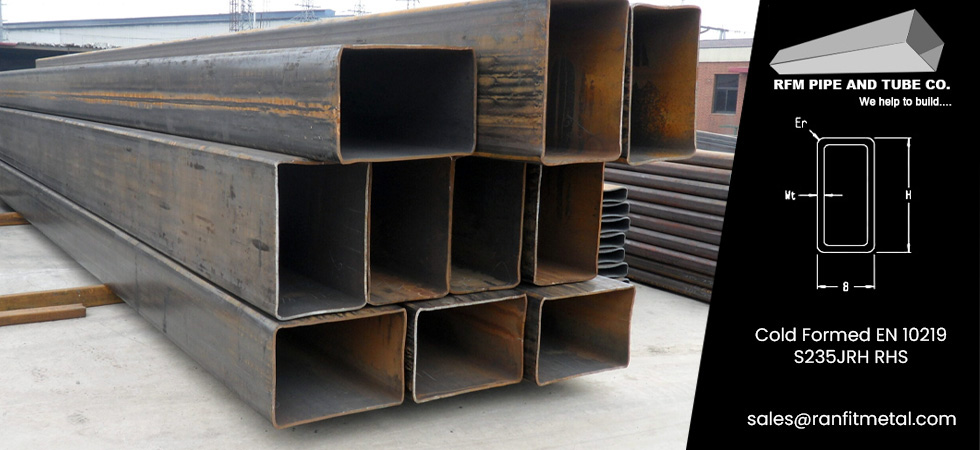

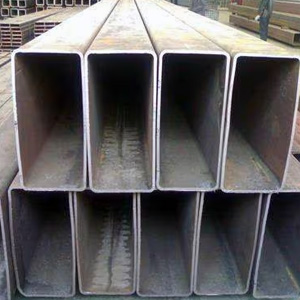

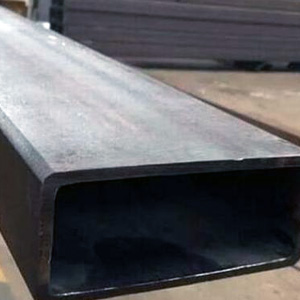

Cold Formed EN 10219 S235JRH Rectangular Hollow Section

S235JRH Rectangular Hollow Section

Cold Formed EN 10219 S235JRH Rectangular Hollow Section Manufacturer & Supplier in Mumbai, India.


Cold Formed EN 10219 S235JRH Seamless Rectangular Hollow Section, S235JRH Cold Formed RHS, Cold Formed EN 10219 S235JRH ERW RHS Tubing, S235JRH Cold Formed Rectangular Pipe, S235JRH Cold Formed Rectangular Tube, S235JRH CF RHS, Cold Formed S235JRH RHS Seamless Pipes, Cold Formed S235JRH CS RHS Tube, EN 10219 S235JRH CS Cold Formed Rectangular Hollow Section Stockist in Mumbai, India.


Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed EN 10219 S235JRH Rectangular Hollow Section. The Cold Formed EN 10219 S235JRH Rectangular Hollow Section is a type of structural steel product commonly used in construction and engineering applications.

The Cold Formed EN 10219 S235JRH RHS Welded Pipes is manufactured without additional heat treatment, ensuring precision and uniformity in dimensions.Produced with high-frequency induction welding (HFIW), resulting in seamless appearance and high strength. These Cold Formed EN 10219 S235JRH Rectangular Hollow Seamless Pipes lengths range from 6000 to 14000 mm, while their wall thicknesses fall between 0.5 and 25 mm.

Rectangular hollow steel sections are available in their natural state or can be shot-blasted, primed, saw cut, drilled or milled. Tomrods offer these services in-house. The EN 10219 standard is followed by the Cold Formed EN10219 Black Rectangular Hollow Section, which is widely used in engineering and construction applications. It is perfect for making sturdy, light structures like buildings, bridges, and machinery.

Cold Formed S235JRH RHS Pipes & Tubes is widely used in appication such as Structural Frameworks, Columns, beams, Machinery, plant construction, and transportation equipment, Fabrications requiring high precision and strength.


Cold Formed S235JRH Mild Steel Rectangular Hollow Section Exporters, EN 10219 S235JRH MS Cold Formed Rectangular Tube Stockists, BS EN 10219 S235JRH Cold Formed RHS Tubes, S235JRH CS Cold Formed Rectangular Pipes Distributors, Carbon Steel S235JRH Rectangular Hollow Section Suppliers in Mumbai, Cold Formed EN 10219 S235JRH Rectangular Box Sections, Cold Formed EN 10219 S235JRH RHS Pipe Supplier in India.


Key Standards

EN 10219: This European standard covers cold-formed structural hollow sections made of non-alloy and fine-grain steels.

S235: Indicates the minimum yield strength is 235 MPa.


JRH: J- Refers to the impact properties at 0°C (27J minimum). Rectangular Hollow Section

Cold Formed EN 10219 S235JRH Rectangular Hollow Section Specifications

Standard No BS EN 10219 - Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels
Grade S235JRH
RHS (Rectangular Hollow Sections) Sizes 10mm x 15mm / 150mmx50mm / 300mmx400mm / 600mmx550mm
Outside Diameter 21.3—457.2mm
Wall Thickness 0.5mm - 25mm
Length 6000-14000 mm
Straightness Minimum 1 : 200th of any length measured along the centre line (mill straightened condition) unless otherwise specifically arranged.
Tolerance Thickness (All sizes +/- 10%)
Surface Protection Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
Packing In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark

EN 10219 S235JRH Rectangular Hollow Pipes and Tubing Material Equivalent

Steel grade Maximum CEV for
nominal thicknesses ≤40mm
Steel name Steel number
S235JRH 1.0149 0,40

EN 10219 S235JRH Rectangular Hollow Section Chemical Composition

Steel Grade Thickness (mm) C Si Mn P S N CEV
S235JRH 6≤ｔ≤16 ≤0.17 - ≤1.40 ≤0.040 ≤0.040 ≤0.009 ≤0.37
16<t≤40 ≤0.39
40<t≤65 ≤0.20 ≤0.41
65<ｔ≤70 ≤0.44

EN 10219 S235JRH Rectangular Hollow Pipes & Tubes Mechanical Strength

Steel Grade Thickness
(mm)		 Yield strength
(N/mm²)		 Tensile strength
(N/mm²)		 Elongation
(%)		 Test temperature
(°C)		 Impact value
(J)
S235JRH 6≤t≤16 235≤ 360–510 26≤ 20 27≤
16<t≤40 225≤ 26≤
40<t≤63 215≤ 25≤
63<t≤70 215≤ 24≤

Types of EN 10219 S235JRH Hollow Section Rectangular

S235JRH EN 10219 Rectangular Hollow Section

S235JRH EN 10219 Rectangular Hollow Pipes

EN 10219 S235JRH Rectangular Hollow Tubing

S235JRH Structural Rectangular Hollow Sections

EN 10219 S235JRH Welded Rectangular Hollow Pipes

cold formed S235JRH Rectangular SHS Tube

Cold Formed EN 10219 S235JRH Rectangular Hollow Section Size Chart

Size mm kg/m Size mm kg/m
40 x 20 x 2.0 1.68 40 x 20 x 2.5 2.03
40 x 20 x 3.0 2.36 40 x 25 x 1.5 1.44
40 x 25 x 2.0 1.89 40 x 25 x 2.5 2.23
50 x 25 x 2.0 2.21 50 x 25 x 2.5 2.72
50 x 25 x 3.0 3.22 50 x 30 x 2.5 2.92
50 x 30 x 3.0 3.45 50 x 30 x 4.0 4.46
50 x 40 x 3.0 3.77 60 x 40 x 2.0 2.93
60 x 40 x 2.5 3.71 60 x 40 x 3.0 4.39
60 x 40 x 4.0 5.72 70 x 50 x 2 3.56
70 x 50 x 2.5 4.39 70 x 50 x 3.0 5.19
70 x 50 x 4.0 6.71 80 x 40 x 2.5 4.26
80 x 40 x 3.0 5.34 80 x 40 x 4.0 6.97
80 x 40 x 5.0 8.54 80 x 50 x 3.0 5.66
80 x 50 x 4.0 7.34 90 x 50 x 3.0 6.28
90 x 50 x 3.6 7.46 90 x 50 x 5.0 10.11
100 x 50 x 2.5 5.63 100 x 50 x 3.0 6.75
100 x 50 x 4.0 8.86 100 x 50 x 5.0 10.90
100 x 60 x 3.0 7.22 100 x 60 x 3.6 8.59
100 x 60 x 5.0 11.70 120 x 80 x 2.5 7.65
120 x 80 x 3.0 9.03 120 x 80 x 4.0 12.00
120 x 80 x 5.0 14.80 120 x 80 x 6.0 17.60
120 x 80 x 8.0 22.9 150 x 100 x 5.0 18.70
150 x 100 x 6.0 22.30 150 x 100 x 8.0 29.10
150 x 100 x 10.0 35.70 160 x 80 x 5.0 18.00
160 x 80 x 6.0 21.30 160 x 80 x 8.0 27.90
200 x 100 x 5.0 22.70 200 x 100 x 6.0 27.00
200 x 100 x 8.0 35.4 200 x 100 x 10.0 43.60
250 x 150 x 5.0 30.5 250 x 150 x 6.0 38.2
250 x 150 x 8.0 48.0 250 x 150 x 10 59.3
300 x 200 x 6.0 48.10 300 x 200 x 8.0 60.50
300 x 200 x 10.0 75.00 400 x 200 x 8.0 73.10
400 x 200 x 10.0 90.70 400 x 200 x 16 142.00

RHS Thickness Sec Area Unit Moment of Inertia Radius of Gyration Elastic Modulus Torsional Constants Outer
Surface Area
mm mm cm2 kg/m cm4 cm4 cm cm cm3 cm3 cm4 cm3 m2
50x25 2 2.74 2.15 8.38 2.81 1.75 1.01 3.35 2.25 6.97 3.79 0.142
2.6 3.46 2.71 10.16 3.36 1.71 0.99 4.06 2.69 8.27 4.53 0.137
3.2 4.13 3.24 11.63 3.8 1.68 0.96 4.35 3.04 9.52 5.12 0.134
4 4.95 3.88 13.13 4.23 1.63 0.92 5.25 3.38 10.86 5.69 0.129
60x40 2.26 4.76 3.73 22.76 12.09 2.19 1.59 7.59 6.05 25.59 9.83 0.187
2.9 5.25 4.12 24.74 13.11 2.17 1.58 8.25 6.56 28.02 10.66 0.185
3.6 6.35 4.98 28.9 15.23 2.13 1.55 9.63 7.62 33.3 12.41 0.181
4.5 7.67 6.02 33.31 17.44 2.08 1.51 11.1 8.72 39.34 14.29 0.177
60x33 2.6 4.7 3.69 25.15 8.43 2.31 1.34 7.62 5.11 20.75 8.71 0.185
2.9 5.19 4.07 27.33 9.12 2.29 1.33 8.28 5.53 22.65 9.43 0.183
3.6 6.28 4.93 31.87 10.52 2.25 1.29 9.66 6.37 26.71 10.9 0.179
4.5 7.58 5.95 36.64 11.93 2.20 1.25 11.1 7.23 31.21 12.43 0.175
80x40 2.6 5.8 4.55 46.58 15.74 2.84 1.65 11.65 7.87 38.5 13.46 0.227
2.9 6.41 5.03 50.87 17.11 2.82 1.63 12.72 8.56 42.23 14.66 0.225
3.2 7.01 5.5 54.94 18.41 2.8 1.62 13.74 9.21 45.83 15.78 0.224
4 8.55 6.71 64.79 21.49 2.75 1.59 16.2 10.74 54.77 18.49 0.219
4.8 10.01 7.85 73.22 24.03 2.71 1.55 18.3 12.02 62.81 20.79 0.215
96x48 3.2 8.54 6.71 98.61 33.28 3.4 1.97 20.54 13.87 82.13 23.82 0.272
4 10.47 8.22 117.54 39.32 3.35 1.94 24.49 16.38 99.11 28.24 0.267
4.8 12.31 9.66 134.35 44.55 3.3 1.9 27.99 18.56 114.8 32.14 0.263
122x61 3.6 12.32 9.67 232.61 78.83 4.34 2.53 38.13 25.85 193.91 44.5 0.347
4.5 15.14 11.88 278.94 93.78 4.29 2.49 45.73 30.75 235.39 53.13 0.343
5.4 17.85 14.01 320.83 107.03 4.24 2.45 52.6 35.09 347.29 60.89 0.338
120x60 3.2 10.85 8.51 199.88 67.95 4.29 2.5 33.31 22.65 165.83 28.95 0.344
3.6 12.11 9.5 220.75 74.77 4.27 2.48 36.79 24.92 184.1 42.91 0.341
4.5 14.87 11.67 264.52 88.88 4.22 2.44 44.09 29.63 223.34 51.19 0.337
145x82 4.8 20.28 15.92 555.16 228.50 5.23 3.36 76.57 55.73 534.27 94.45 0.429
5.4 22.6 17.74 610.85 250.59 5.2 3.33 84.26 61.12 592.7 103.81 0.426

EN 10219 S235JRH RHS Dimensional Tolerances

Dimensions less than 100mm +/- 1.0% with a minimum of +/- 0.5mm
Dimensions 100mm up to 200mm +/- 0.8%
Dimensions over 200mm +/- 0.6%
Wall thickness (excluding weld area) +/-10% for specified thickness of 5mm or below and +/-0.5mm for thickness greater than 5mm
Concavity/Convexity Max. 0.8% with a minimum of 0.5mm
Squareness of sides 90 Degree +/- 1 Degree
Externalcorner radius 6mm thick or below: 1.6 to 2.4 x wall thickness
Straightness 0.15% of total length
Twist 2mm + ( 0.5mm per mtr ) max

Cold Formed EN 10219 S275J0H SHS

Buy High Quality Cold Formed EN 10219 S235JRH Square Rectangular Section

Request the latest EN 10219 S235JRH Rectangular SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

EN 10219 S235JRH SHS Available Types

S235JRH Cold Formed CS Rectangular Hollow Section Supplier S235JRH Welded Rectangular Tubing
EN 10219 S235JRH Cold Formed Rectangular Box Sections EN 10219 S235JRH Seamless Rectangular Hollow Section Stockist
Cold Formed BS EN 10219 S235JRH Hollow Rectangular Tube, Welded Cold Formed EN 10219 S235JRH RHS Pipes
EN 10219 S235JRH Cold Formed RHS Tube Stockist EN 10219 S235JRH Rectangular Structural Steel Piping
High Temperature BS EN 10219 S235JRH Pipes EN 10219 S235JRH MS Rectangular Hollow Section Pipe
S235JRH Cold Rolled Rectangular Hollow Sections Supplier EN 10219 S235JRH Cold Formed ERW RHS Manufacturer
EN 10219 S235JRH Cold Formed Rectangular Seamless Pipe EN 10219 S235JRH Rectangular Cold Formed ERW Pipes
EN 10219 S235JRH Carbon Steel Welded RHS MAnufacturer EN 10219 Cold Formed S235JRH MS RHS Tube
EN 10219 S235JRH Seamless Cold Formed RHS Tubes EN 10219 S235JRH Rectangular Hollow Structural Sections
EN 10219 Schedule 40 S235JRH Seamless Pipes Cold formed EN 10219 S235JRH structural CFRHS

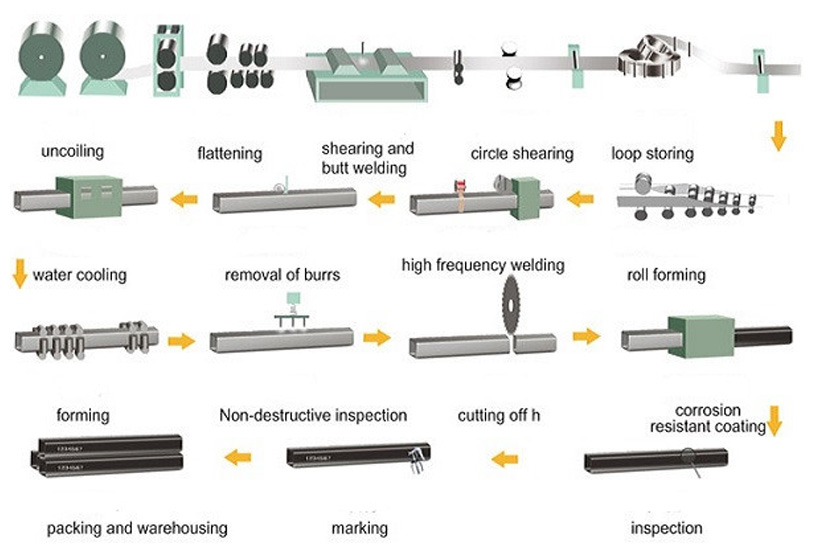

Cold Formed S235JRH SHS Manufacturing Process
