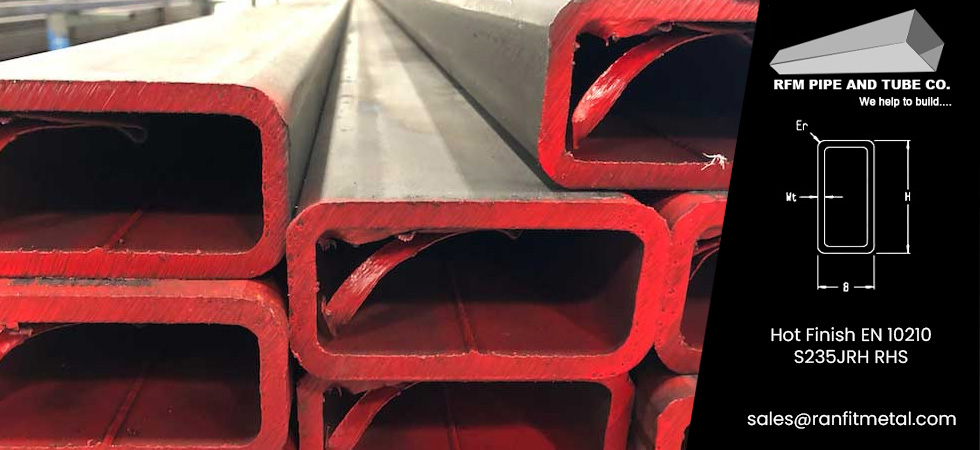

Hot Finish EN 10210 S235JRH Rectangular Hollow Section

HOT FINISH EN 10210 S235JRH RECTANGULAR HOLLOW SECTION MANUFACTURER & SUPPLIER IN MUMBAI, INDIA.

S235JRH Hot Finished CS RHS Tube, S235JRH Hot Finish Rectangular Pipe, S235JRH Hot Finish RHS, S235JRH MS Hot Finish Rectangular Section, EN 10210 S235JRH Hot Finish Welded Rectangular Hollow Section, Hot Finish EN 10210 S235JRH Seamless Rectangular Hollow Section, Hot Finish S235JRH RHS Seamless Pipes, EN 10210 S235JRH HF RHS, S235JRH Hot Rolled Rectangular Tube, EN 10210 S235JRH Hot Finished Rectangular Hollow Section Welded Tube Supplier & Stockist in Mumbai, India.

Ranfit Metal is a well-known manufacturer, supplier, and stockiest of EN 10210 S235JRH Hot Finish Rectangular Hollow Section. Hot-finished EN 10210 S235JRH RHS are commonly used in construction, engineering, and other structural applications. S235JRH Rectangular Hollow Hot-finished Sections are less prone to residual stresses, Easily welded and fabricated, High toughness ensures resistance to brittle fracture under challenging conditions. The EN 10210 S235JRH HFRHS Tubing is a non-alloy structural steel hollow section that conforms to the European standard EN 10210. It has a minimum yield strength of 235 MPa and a minimum tensile strength of 360-510 MPa. EN 10210 S235JRH Seamless RHS Pipes has a rectangular cross-section with internal radii and a smooth surface finish. It is available in a range of sizes, from 20x20 mm to 400x400 mm, and can be supplied in various lengths, including fixed lengths, random lengths, and cut-to-length sizes. The Finish EN 10210 S235JRH rectangular hollow section is a versatile and reliable steel hollow section that offers exceptional strength, durability, and versatility. Its wide range of applications, advantages, and manufacturing process make it an ideal choice for various industries and infrastructure projects.

EN 10210 Hot Finish S235JRH ERW RHS Pipes Dealers in India, EN 10210 S235JRH Seamless Hot Finish Rectangular Hollow Section Tubing, S235JRH CS Hot Finished Rectangular Pipes Distributors, Hot Rolled S235JRH Mild Steel Rectangular Hollow Section Exporters, Hot Finish EN10210 S235JRH Rectangular Box Sections, BS EN 10210 S235JRH Hot Finish RHS Tubes, EN 10210 S235JRH Hot Finished Welded Structural Rectangular Hollow Sections Exporters in Mumbai, India.

Key Standards

EN 10210: A European standard that specifies the technical delivery conditions for hot-finished structural hollow sections made of non-alloy and fine-grain steels.

S235: Minimum yield strength of 235 MPa (megapascals).

JRH: J: Impact tested at 20°C. RH: Rectangular Hollow section.

Hot Finish EN 10210 S235JRH Rectangular Hollow Section Specifications

Standard No	BS EN 10210 - Hot finished structural hollow sections of non-alloy and fine grain steels
Grade	S235JRH (Hot Finish)
RHS (Rectangular Hollow Sections) Sizes	10mm x 15mm / 150mmx50mm / 300mmx400mm / 600mmx550mm
Dimensional Tolerances	Thickness (All sizes +/- 10%)
Wall Thickness	0.5mm - 25mm
Length	6000-14000 mm
Dimension Range	21.3-914mm
End Finish	mill-cut finish without further machining, Plain ended-Mechanically sheared
Surface Finish	Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
Packing	In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark

BS EN 10210 S235JRH Rectangular Hollow Section Material Equivalent

Steel Grade		Maximum CEV for nominal thicknesses ≤40mm
Steel name	Steel number	Maximum CEV for nominal thicknesses ≤40mm
S235JRH	1.0039	0.17

S235JRH EN 10210 Hot Finish Rectangular Hollow Section Chemical Composition

Steel Grade		% by mass maximum
Steel Name	Steel Number	C specified thickness (mm)		Si	Mn	P	S	N
		_40	40 _ 120
S235JRH	1.0039	0.17	0.20	-	1.40	0.040	0.040	0.009

Hot Finish Grade S235JRH Rectangular Hollow Section Mechanical Strength

Steel Grade		Minimum yield strength eH Mpa						Minimum tensile strength Rm Mpa
Steel Name	Steel Number	Specified thickness in mm						Specified thickness in mm
Steel Name	Steel Number	_16	16 _40	40 _63	63 _ 80	80 _100	100 _120	_3	3 _100	100 _ 120
S235JRH	1.0039	235	225	215	215	215	195	360-510	360-510	350-500

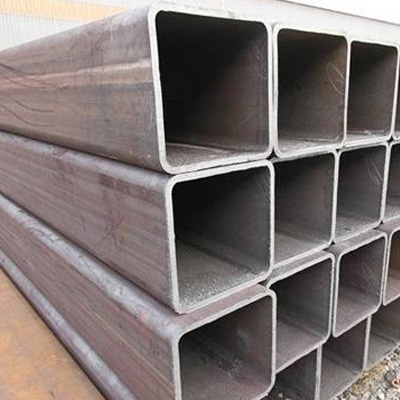

Types of EN 10219 S355J2H Hollow Section Square

EN 10210 Hot Finish Gr. S235JRH Rectangular Hollow Section Size Chart

Nominal Bore mm	Outside diameter mm	Thickness mm	Weight kg/m
Size mm	kg/m	Size mm	kg/m
40 x 20 x 2.0	1.68	40 x 20 x 2.5	2.03
40 x 20 x 3.0	2.36	40 x 25 x 1.5	1.44
40 x 25 x 2.0	1.89	40 x 25 x 2.5	2.23
50 x 25 x 2.0	2.21	50 x 25 x 2.5	2.72
50 x 25 x 3.0	3.22	50 x 30 x 2.5	2.92
50 x 30 x 3.0	3.45	50 x 30 x 4.0	4.46
50 x 40 x 3.0	3.77	60 x 40 x 2.0	2.93
60 x 40 x 2.5	3.71	60 x 40 x 3.0	4.39
60 x 40 x 4.0	5.72	70 x 50 x 2	3.56
70 x 50 x 2.5	4.39	70 x 50 x 3.0	5.19
70 x 50 x 4.0	6.71	80 x 40 x 2.5	4.26
80 x 40 x 3.0	5.34	80 x 40 x 4.0	6.97
80 x 40 x 5.0	8.54	80 x 50 x 3.0	5.66
80 x 50 x 4.0	7.34	90 x 50 x 3.0	6.28
90 x 50 x 3.6	7.46	90 x 50 x 5.0	10.11
100 x 50 x 2.5	5.63	100 x 50 x 3.0	6.75
100 x 50 x 4.0	8.86	100 x 50 x 5.0	10.90
100 x 60 x 3.0	7.22	100 x 60 x 3.6	8.59
100 x 60 x 5.0	11.70	120 x 80 x 2.5	7.65
120 x 80 x 3.0	9.03	120 x 80 x 4.0	12.00
120 x 80 x 5.0	14.80	120 x 80 x 6.0	17.60
120 x 80 x 8.0	22.9	150 x 100 x 5.0	18.70
150 x 100 x 6.0	22.30	150 x 100 x 8.0	29.10
150 x 100 x 10.0	35.70	160 x 80 x 5.0	18.00
160 x 80 x 6.0	21.30	160 x 80 x 8.0	27.90
200 x 100 x 5.0	22.70	200 x 100 x 6.0	27.00
200 x 100 x 8.0	35.4	200 x 100 x 10.0	43.60
250 x 150 x 5.0	30.5	250 x 150 x 6.0	38.2
250 x 150 x 8.0	48.0	250 x 150 x 10	59.3
300 x 200 x 6.0	48.10	300 x 200 x 8.0	60.50
300 x 200 x 10.0	75.00	400 x 200 x 8.0	73.10
400 x 200 x 10.0	90.70	400 x 200 x 16	142.00

RHS	Thickness	Sec Area	Unit	Moment of Inertia		Radius of Gyration		Elastic Modulus		Torsional Constants		Outer Surface Area
mm	mm	cm2	kg/m	cm4	cm4	cm	cm	cm3	cm3	cm4	cm3	m2
50x25	2	2.74	2.15	8.38	2.81	1.75	1.01	3.35	2.25	6.97	3.79	0.142
	2.6	3.46	2.71	10.16	3.36	1.71	0.99	4.06	2.69	8.27	4.53	0.137
	3.2	4.13	3.24	11.63	3.8	1.68	0.96	4.35	3.04	9.52	5.12	0.134
	4	4.95	3.88	13.13	4.23	1.63	0.92	5.25	3.38	10.86	5.69	0.129
60x40	2.26	4.76	3.73	22.76	12.09	2.19	1.59	7.59	6.05	25.59	9.83	0.187
	2.9	5.25	4.12	24.74	13.11	2.17	1.58	8.25	6.56	28.02	10.66	0.185
	3.6	6.35	4.98	28.9	15.23	2.13	1.55	9.63	7.62	33.3	12.41	0.181
	4.5	7.67	6.02	33.31	17.44	2.08	1.51	11.1	8.72	39.34	14.29	0.177
60x33	2.6	4.7	3.69	25.15	8.43	2.31	1.34	7.62	5.11	20.75	8.71	0.185
	2.9	5.19	4.07	27.33	9.12	2.29	1.33	8.28	5.53	22.65	9.43	0.183
	3.6	6.28	4.93	31.87	10.52	2.25	1.29	9.66	6.37	26.71	10.9	0.179
	4.5	7.58	5.95	36.64	11.93	2.20	1.25	11.1	7.23	31.21	12.43	0.175
80x40	2.6	5.8	4.55	46.58	15.74	2.84	1.65	11.65	7.87	38.5	13.46	0.227
	2.9	6.41	5.03	50.87	17.11	2.82	1.63	12.72	8.56	42.23	14.66	0.225
	3.2	7.01	5.5	54.94	18.41	2.8	1.62	13.74	9.21	45.83	15.78	0.224
	4	8.55	6.71	64.79	21.49	2.75	1.59	16.2	10.74	54.77	18.49	0.219
	4.8	10.01	7.85	73.22	24.03	2.71	1.55	18.3	12.02	62.81	20.79	0.215
96x48	3.2	8.54	6.71	98.61	33.28	3.4	1.97	20.54	13.87	82.13	23.82	0.272
	4	10.47	8.22	117.54	39.32	3.35	1.94	24.49	16.38	99.11	28.24	0.267
	4.8	12.31	9.66	134.35	44.55	3.3	1.9	27.99	18.56	114.8	32.14	0.263
122x61	3.6	12.32	9.67	232.61	78.83	4.34	2.53	38.13	25.85	193.91	44.5	0.347
	4.5	15.14	11.88	278.94	93.78	4.29	2.49	45.73	30.75	235.39	53.13	0.343
	5.4	17.85	14.01	320.83	107.03	4.24	2.45	52.6	35.09	347.29	60.89	0.338
120x60	3.2	10.85	8.51	199.88	67.95	4.29	2.5	33.31	22.65	165.83	28.95	0.344
	3.6	12.11	9.5	220.75	74.77	4.27	2.48	36.79	24.92	184.1	42.91	0.341
	4.5	14.87	11.67	264.52	88.88	4.22	2.44	44.09	29.63	223.34	51.19	0.337
145x82	4.8	20.28	15.92	555.16	228.50	5.23	3.36	76.57	55.73	534.27	94.45	0.429
	5.4	22.6	17.74	610.85	250.59	5.2	3.33	84.26	61.12	592.7	103.81	0.426

Hot Finish EN 10210 S235JRH RHS Dimensional Tolerances

Characteristics	Tolerance
Outside Diameter of Size (H: Longest Side; B: Shortest Side)	H ＜ 100mm, B ＜ 100mm	max ±1% with a min of ±0.5mm
	100mm ≤ H ≤ 200mm, 100mm ≤ B ≤ 00mm	±0.8%
	H200mm, B200mm	±0.6%
Wall Thickness	WT ≤ 5mm	±10%
Wall Thickness	WT5mm	±0.5mm
Concavity/Convexity	max ±0.8% with a min of ±0.5mm
Squareness of Sides	90°±1°
External Corner Radius	WT ≤ 6mm	1.6WT ≤ R ≤ 2.4WT
	6mm ＜ WT ≤ 10mm	2.0WT ≤ R ≤ 3.0WT
	WT10mm	2.4WT ≤ R ≤ 3.6WT
Twist	2mm + 0.5mm/m in length
Straightness	1.5mm/1000mm in total length
Mass	±6% in individual lengths
Length	L＜6000mm	+5mm/-0mm
	6000mm ≤ L ≤ 10000mm	+15mm/-0mm
	L 10000mm	+5mm/-0mm plus 1mm/m

S235JRH BS EN 10210 Hot Finish RHS Tolerances on shape, Straightness & Mass

Random Length	4000 to 16000 with a range of 2000 Per order item	10% of sections supplied may be below minimum for the ordered range, but not less than 75% of the minimum of the range.
Approximate Length	4000 to 16000	500 mm
Exact Length	≥ 2000 to 6000 ≥ 6000	+10 /-0 mm +15 /-0 mm

Buy High Quality Hot Finish EN 10210 S235JRH Rectangular Hollow Section

Request the latest EN 10210 S235JRH Hot Rolled RHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

Hot Finish EN 10210 S235JRH RHS Available Types

S235JRH Hot Finish CS Rectangular Hollow Section Supplier	S235JRH Welded Rectangular Tubing
EN 10210 S235JRH Hot Finish Rectangular Box Sections	EN 10210 S235JRH Seamless Rectangular Hollow Section Stockist
Hot Finish BS EN 10210 S235JRH Hollow Rectangular Tube,	Welded Hot Finish EN 10210 S235JRH RHS Pipes
EN 10210 S235JRH Hot Finish RHS Tube Stockist	EN 10210 S235JRH Rectangular Structural Steel Piping
High Temperature BS EN 10210 S235JRH Pipes	EN 10210 S235JRH MS Rectangular Hollow Section Pipe
S235JRH Hot Rolled Rectangular Hollow Sections Supplier	EN 10210 S235JRH Hot Finish ERW RHS Manufacturer
EN 10210 S235JRH Hot Finish Rectangular Seamless Pipe	EN 10210 S235JRH Rectangular Hot Finish ERW Pipes
EN 10210 S235JRH Carbon Steel Welded RHS MAnufacturer	EN 10210 Hot Finish S235JRH MS RHS Tube
EN 10210 S235JRH Seamless Hot Finish RHS Tubes	EN 10210 S235JRH Rectangular Hollow Structural Sections
EN 10210 Schedule 40 S235JRH Seamless Pipes	Hot Finish EN 10210 S235JRH Structural HFRHS
Hot Finish EN 10210 S235JRH Structural Hollow Sections Exporter	SCH 20 EN 10210 S235JRH Boiler Rectangular Seamless Pipes
Hot Dipped Galvanized EN 10210 S235JRH Rectangular Pipes	Welded Hot Finish EN 10210 S235JRH RHS Pipe
EN 10210 S235JRH Hot Finish MS RHS Tube	EN 10210 S235JRH Hot Finish Rectangular Box Sections
Hot Finish EN 10210 S235JRH Piping Supplier	Hot Finish EN 10210 S235JRH Tubing

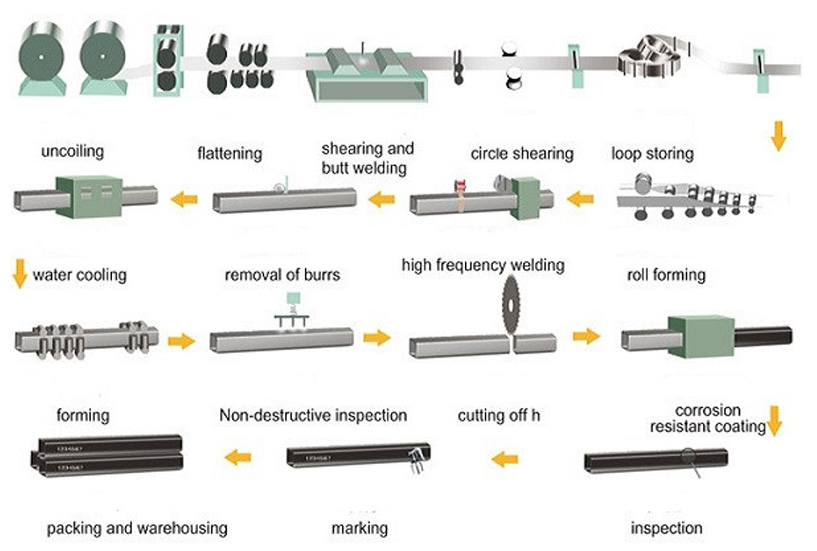

EN 10210 S235JRH Hot Finish RHS Manufacturing Process

BS EN 10210 S235JRH Hot Finish Rectangular Hollow Sections – Application Industrty

Petrochemical Industry
Aerospace Industry
Refineries
Construcion

Chemical Industry
Railway Industry
Oil & Gas Industry
Ship Building
