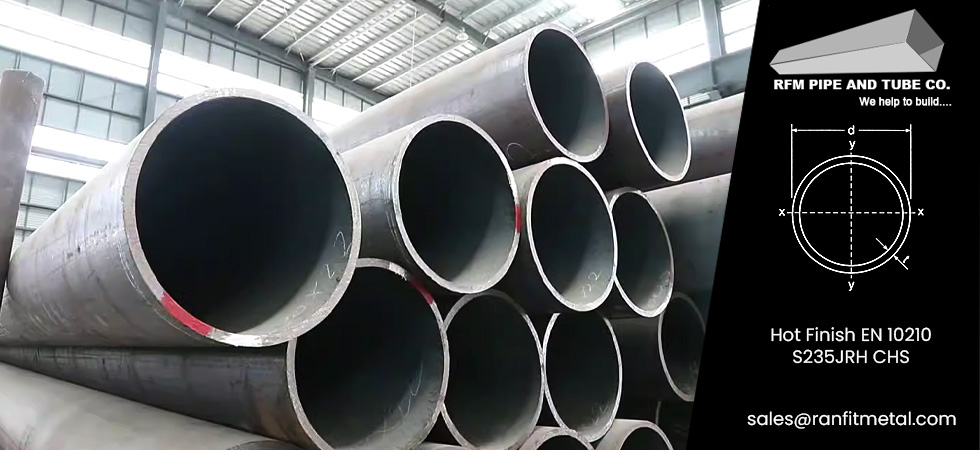

EN 10210 S235JRH Hot Finish Circular Hollow Section
Hot Finish EN 10210 S235JRH Circular Hollow Section
HOT FINISH EN 10210 S235JRH CIRCULAR HOLLOW SECTION MANUFACTURER & SUPPLIER IN MUMBAI, INDIA.
Hot Finish EN 10210 S235JRH Round Steel Pipe, Hot Formed EN 10210 S235JRH ERW CHS Tubing, EN 10210 S235JRH Hot Finished Circular Hollow Section Welded Tube, S235JRH MS Hot Finish Circular Section, Hot Finish EN 10210 S235JRH Round Hollow Sections, Hot Finished EN 10210 S235JRH Round Steel Tube, S235JRH Hot Finish Circular Pipe, EN 10210 S235JRH CS Hot Finish Circular Hollow Section, Hot Finish EN 10210 S235JRH Seamless Circular Hollow Section Supplier & Stockist in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of EN 10210 S235JRH Hot Finish Circular Hollow Section. Hot-finished EN 10210 S235JRH CHS are commonly used in construction, engineering, and other structural applications. S235JRH Circular Hollow Hot-finished Sections are stress-relieved, leading to better dimensional accuracy and uniformity and are suitable for dynamic loads and harsh environments. One of the main advantages The EN 10210 S235JRH HFCHS Tubing is its high strength-to-weight ratio, which makes it an ideal material for structural applications where weight reduction is critical. EN 10210 S235JRH Seamless CHS Pipes is also highly resistant to corrosion, thanks to its low carbon content and the formation of a protective oxide layer on its surface. This makes it an excellent choice for applications in harsh environments, such as coastal areas, industrial facilities, or areas with high humidity. The Finish EN 10210 S235JRH Circular hollow section used in the manufacture of machinery, equipment, and components, where its high strength, toughness, and resistance to corrosion make it an ideal material for demanding applications also in the construction of buildings, bridges, and other infrastructure projects.
S235JRH Hot Rolled Circular Tube, EN 10210 S235JRH Hot Finish Welded Circular Hollow Section, S235JRH Hot Finish CHS, EN 10210 S235JRH HF CHS, EN 10210 Hot Finish S235JRH ERW CHS Pipes Dealers in India, BS EN 10210 S235JRH Hot Finish CHS Tubes in Mumbai, Hot Finish EN 10210 S235JRH Welded Round Tube, Hot Finish EN10210 S235JRH Round Sections, EN 10210 Hot Finish S235JRH Mild Steel Circular Hollow Section Exporters, EN 10210 S235JRH Seamless Hot Finish Circular Hollow Section Tubing Exporters in Mumbai, India.
Key Standards
EN 10210: A European Standard that specifies the technical delivery conditions for Hot-Finished Structural Hollow Sections.
S235: Refers to a minimum yield strength of 235 MPa.
S235: Refers to a minimum yield strength of 235 MPa.
JRH: J: Indicates impact toughness is tested at 20°C (Charpy V-notch test). R: Represents room temperature testing. H: Stands for a Hollow SectionHot Finish EN 10210 S235JRH Circular Hollow Section Specifications
| Standard No | BS EN 10210 - Hot finished structural hollow sections of non-alloy and fine grain steels |
| Grade | S235JRH (Hot Finish) |
| CHS (Circular Hollow Sections) Sizes | 300 mm NB |
| Outer Diameter | 21.3 to 457.2mm |
| Wall Thickness | 1.8mm to 14.27mm |
| Length | 6000 to 12000/18000mm |
| Dimensional Tolerances | Thickness : (All sizes +/- 10%) |
| End Finish | mill-cut finish without further machining, Plain ended-Mechanically sheared |
| Surface Finish | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or Circular cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
BS EN 10210 S235JRH Circular Hollow Section Material Equivalent
| Steel Grade | Maximum CEV for nominal thicknesses ≤40mm&nb |
|
| Steel name | Steel number | |
| S235JRH | 1.0039 | 0.17 |
S235JRH EN 10210 Hot Finish Circular Hollow Section Chemical Composition
| Steel Grade | % by mass maximum | |||||||
| Steel Name | Steel Number | C specified thickness (mm) | Si | Mn | P | S | N | |
| <_40 | > 40 <_ 120 | |||||||
| S235JRH | 1.0039 | 0.17 | 0.20 | - | 1.40 | 0.040 | 0.040 | 0.009 |
Hot Finish Grade S235JRH Circular Hollow Section Mechanical Strength
| Steel Grade | Minimum yield strength eH Mpa | Minimum tensile strength Rm Mpa | ||||||||
| Steel Name | Steel Number | Specified thickness in mm | Specified thickness in mm | |||||||
| 16 | 16 _40 | 40 _63 | 63 _ 80 | 80 _100 | 100 _120 | _3 | 3_100 | 100 _ 120 | ||
| S235JRH | 1.0039 | 235 | 225 | 215 | 215 | 215 | 195 | 360-510 | 360-510 | 350-500 |
Types of EN 10219 S235JRH Hollow Section Square
Hot Finish EN 10210 S235JRH Circular Hollow Pipes
Hot Finish EN 10210 S235JRH Circular Hollow Tubing
Hot Finish EN 10210 S235JRH Structural Circular Hollow Sections
Hot Finish EN 10210 S235JRH Welded Circular Hollow Pipes
Hot Finish EN 10210 S235JRH CHS Tube
EN 10210 Hot Finish S235JRH Circular Hollow Section Size Chart
| Nominal Bore mm |
Outside diameter mm |
Thickness mm |
Weight kg/m |
|---|---|---|---|
| 15 | 21.3 | 2.00 | 0.95 |
| 2.60 | 1.21 | ||
| 3.20 | 1.44 | ||
| 20 | 26.9 | 2.30 | 1.38 |
| 2.60 | 1.56 | ||
| 3.20 | 1.87 | ||
| 25 | 33.7 | 2.60 | 1.98 |
| 3.20 | 0.24 | ||
| 4.00 | 2.93 | ||
| 32 | 42.4 | 2.60 | 2.54 |
| 3.20 | 3.01 | ||
| 4.00 | 3.79 | ||
| 40 | 48.3 | 2.90 | 3.23 |
| 3.20 | 3.56 | ||
| 4.00 | 4.37 | ||
| 50 | 60.3 | 2.90 | 4.08 |
| 3.60 | 5.03 | ||
| 5.00 | 6.19 | ||
| 65 | 76.1 | 3.20 | 5.71 |
| 3.60 | 6.42 | ||
| 4.50 | 7.93 | ||
| 80 | 88.9 | 3.20 | 6.72 |
| 4.00 | 8.36 | ||
| 4.80 | 9.90 | ||
| 100 | 114.3 | 3.60 | 9.75 |
| 4.50 | 12.20 | ||
| 5.40 | 14.50 | ||
| 125 | 139.7 | 4.50 | 15.00 |
| 4.80 | 15.90 | ||
| 5.40 | 17.90 | ||
| 150 | 165.1 | 4.50 | 17.80 |
| 4.80 | 18.90 | ||
| 5.40 | 21.30 | ||
| 150 | 168.3 | 5.00 | 20.1 |
| 6.3 | 25.2 | ||
| 8.00 | 31.6 | ||
| 10.00 | 39 | ||
| 12.5 | 48 | ||
| 200 | 219.1 | 4.80 | 25.38 |
| 6.00 | 31.51 | ||
| 8.00 | 41.67 | ||
| 10.00 | 51.59 | ||
| 250 | 273 | 6.00 | 39.51 |
| 8.00 | 52.30 | ||
| 10.00 | 64.59 | ||
| 300 | 323.9 | 6.30 | 49.36 |
| 8.00 | 62.35 | ||
| 10.00 | 77.44 |
EN 10210 Hot Finish S235JRH Circular Hollow Section Weight Chart
| Outside Diameter (mm) | Thickness (mm) | Kg/Metre |
|---|---|---|
| 21.3 | 2.5 | 1.16 |
| 21.3 | 3.2 | 1.43 |
| 26.9 | 2.5 | 1.51 |
| 26.9 | 3.2 | 1.87 |
| 33.7 | 2 | 1.56 |
| 33.7 | 2.6 | 1.99 |
| 33.7 | 3.2 | 2.41 |
| 33.7 | 4 | 2.93 |
| 42.4 | 2 | 2 |
| 42.4 | 2.6 | 2.55 |
| 42.4 | 3.2 | 3.09 |
| 42.4 | 4 | 3.79 |
| 42.4 | 5 | 4.62 |
| 42.4 | 6.3 | 5.62 |
| 48.3 | 2 | 2.29 |
| 48.3 | 2.5 | 2.83 |
| 48.3 | 3.2 | 3.56 |
| 48.3 | 4 | 4.37 |
| 48.3 | 5 | 5.34 |
| 48.3 | 6.3 | 6.53 |
| 60.3 | 2.5 | 3.57 |
| 60.3 | 3.2 | 4.51 |
| 60.3 | 4 | 5.55 |
| 60.3 | 5 | 6.82 |
| 60.3 | 6.3 | 8.4 |
| 60.3 | 8 | 10.33 |
| 60.3 | 10 | 12.42 |
| 76.1 | 2.5 | 4.54 |
| 76.1 | 3.2 | 5.75 |
| 76.1 | 4 | 7.11 |
| 76.1 | 5 | 8.77 |
| 76.1 | 6.3 | 10.86 |
| 76.1 | 8 | 13.45 |
| 76.1 | 10 | 16.32 |
| 88.9 | 3.2 | 6.76 |
| 88.9 | 4 | 8.38 |
| 88.9 | 5 | 10.3 |
| 88.9 | 6.3 | 12.85 |
| 88.9 | 8 | 15.98 |
| 88.9 | 10 | 19.48 |
| 101.6 | 2 | 4.92 |
| 101.6 | 3 | 7.3 |
| 101.6 | 4 | 9.64 |
| 101.6 | 5 | 11.93 |
| 114.3 | 3.6 | 9.83 |
| 114.3 | 4 | 10.89 |
| 114.3 | 5 | 13.5 |
| 114.3 | 6.3 | 16.8 |
| 127 | 3 | 9.17 |
| 127 | 4 | 12.15 |
| 127 | 5 | 15.04 |
| 139.7 | 3 | 10.13 |
| 139.7 | 4 | 13.4 |
| 139.7 | 5 | 16.6 |
| 139.7 | 6.3 | 20.7 |
| 139.7 | 8 | 26 |
| 139.7 | 10 | 32 |
| 168.3 | 3.6 | 14.64 |
| 168.3 | 4 | 16.23 |
| 168.3 | 5 | 20.1 |
| 168.3 | 6.3 | 25.2 |
| 168.3 | 8 | 31.6 |
| 168.3 | 10 | 39 |
| 168.3 | 12 | 46.3 |
| 193.7 | 5 | 23.3 |
| 193.7 | 6.3 | 29.1 |
| 193.7 | 8 | 36.6 |
| 193.7 | 10 | 45.3 |
| 193.7 | 12.5 | 55.9 |
| 219.1 | 5 | 26.4 |
| 219.1 | 6.3 | 33.1 |
| 219.1 | 8 | 41.6 |
| 219.1 | 10 | 51.6 |
| 219.1 | 12.5 | 63.7 |
| 244.5 | 4 | 23.73 |
| 244.5 | 5 | 29.5 |
| 244.5 | 6.3 | 37 |
| 244.5 | 8 | 46.7 |
| 244.5 | 10 | 57.8 |
| 244.5 | 12.5 | 71.5 |
| 244.5 | 16 | 90.2 |
| 273 | 5 | 33 |
| 273 | 6.3 | 41.4 |
| 273 | 8 | 52.3 |
| 273 | 10 | 64.9 |
| 273 | 12.5 | 80.3 |
| 273 | 16 | 101 |
| 323.9 | 4 | 31.6 |
| 323.9 | 5 | 39.3 |
| 323.9 | 6 | 47 |
| 323.9 | 6.3 | 49.3 |
| 323.9 | 8 | 62.3 |
| 323.9 | 10 | 77.4 |
| 323.9 | 12.5 | 96 |
| 323.9 | 16 | 121 |
| 355.6 | 8 | 68.6 |
| 355.6 | 10 | 85.2 |
| 355.6 | 12.5 | 106 |
| 355.6 | 16 | 134 |
| 406.4 | 6 | 59.2 |
| 406.4 | 8 | 78.6 |
| 406.4 | 10 | 97.8 |
| 406.4 | 12.5 | 121 |
| 406.4 | 16 | 154 |
| 457 | 6 | 66.7 |
| 457 | 8 | 88.6 |
| 457 | 10 | 110 |
| 457 | 12.5 | 137 |
| 457 | 16 | 174 |
| 508 | 6 | 74.3 |
| 508 | 8 | 98.6 |
| 508 | 10 | 123 |
| 508 | 12.5 | 153 |
| 508 | 16 | 194 |
Hot Finish EN 10210 S235JRH CHS Dimensional Tolerances
| Designation | Property | Tolerance | ||
|---|---|---|---|---|
| & | Outside Diameter D | ±1.0% with a min of ±0.5 mm and a max of ±10 mm | ||
| Thickness t | Welded | –10% | ||
| Seamless | –10% but between 10% and 12.5% may occur over not more than 25% of the circumference | |||
| Note: Positive deviation is limited by mass tolerance | ||||
| Measured at the centre of the length | Straightness (x or y direction) | 0.20% L | ||
| Mass per unit length | Mass of section | Welded | ±6.0% on individual lengths | |
| Seamless | +8.0% –6% on individual lengths | |||
| Standard | Length L | +150 mm | –0 mm | |
Buy High Quality Hot Finish EN 10210 S235JRH Circular Hollow Section
Request the latest EN 10210 S235JRH Hot Rolled CHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
Hot Finish EN 10210 S235JRH CHS Available Types
| S235JRH Hot Finish CS Circular Hollow Section Supplier | S235JRH Welded Circular Tubing |
| EN 10210 S235JRH Hot Finish Circular Box Sections | EN 10210 S235JRH Seamless Circular Hollow Section Stockist |
| Hot Finish BS EN 10210 S235JRH Hollow Circular Tube, | Welded Hot Finish EN 10210 S235JRH CHS Pipes |
| EN 10210 S235JRH Hot Finish CHS Tube Stockist | EN 10210 S235JRH Circular Structural Steel Piping |
| High Temperature BS EN 10210 S235JRH Pipes | EN 10210 S235JRH MS Circular Hollow Section Pipe |
| S235JRH Hot Rolled Circular Hollow Sections Supplier | EN 10210 S235JRH Hot Finish ERW CHS Manufacturer |
| EN 10210 S235JRH Hot Finish Circular Seamless Pipe | EN 10210 S235JRH Circular Hot Finish ERW Pipes |
| EN 10210 S235JRH Carbon Steel Welded CHS MAnufacturer | EN 10210 Hot Finish S235JRH MS CHS Tube |
| EN 10210 S235JRH Seamless Hot Finish CHS Tubes | EN 10210 S235JRH Circular Hollow Structural Sections |
| EN 10210 Schedule 40 S235JRH Seamless Pipes | Hot Finish EN 10210 S235JRH Structural HFCHS |
| Hot Finish EN 10210 S235JRH Structural Hollow Sections Exporter | SCH 20 EN 10210 S235JRH Boiler Circular Seamless Pipes |
| Hot Dipped Galvanized EN 10210 S235JRH Circular Pipes | Welded Hot Finish EN 10210 S235JRH CHS Pipe |
| EN 10210 S235JRH Hot Finish MS CHS Tube | EN 10210 S235JRH Hot Finish Circular Box Sections |
| Hot Finish EN 10210 S235JRH Piping Supplier | Hot Finish EN 10210 S235JRH Tubing |

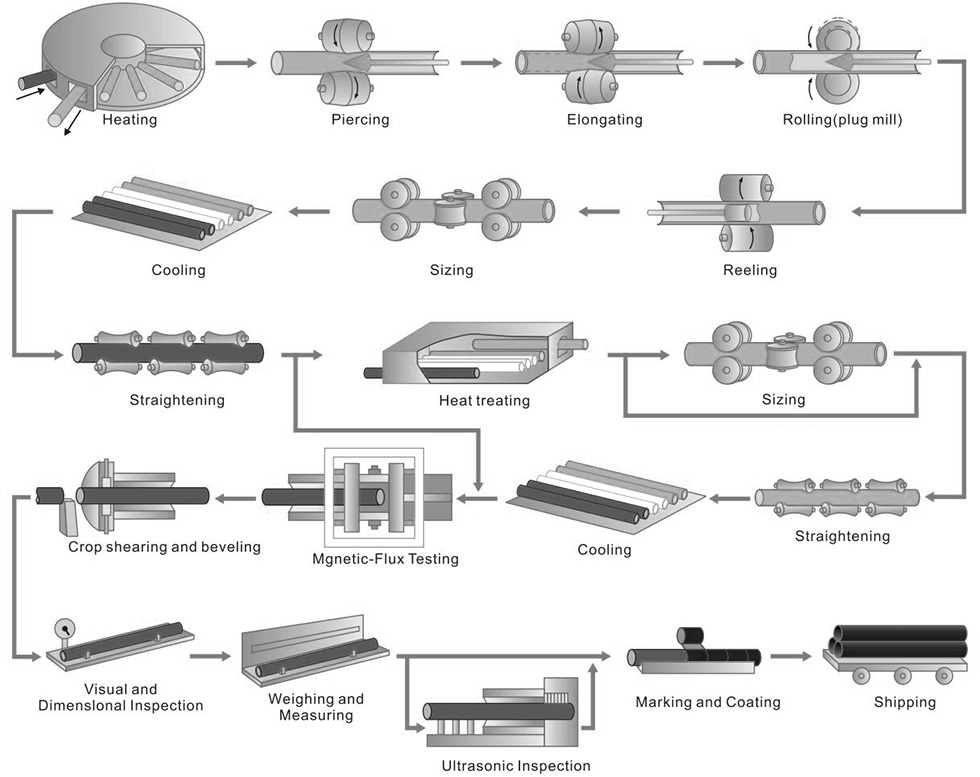

EN 10210 S235JRH Hot Finish CHS Manufacturing Process
BS EN 10210 S235JRH Hot Finish Circular Hollow Sections – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
