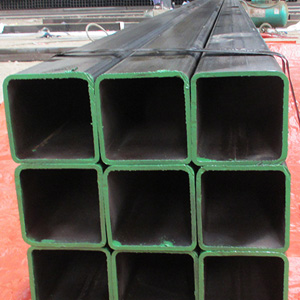

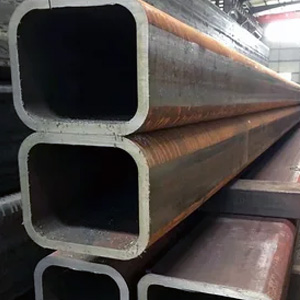

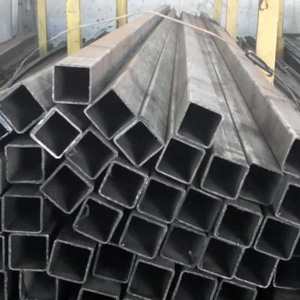

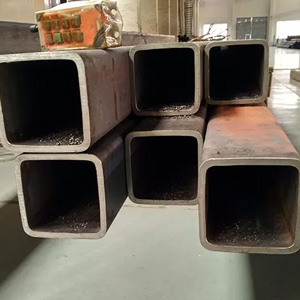

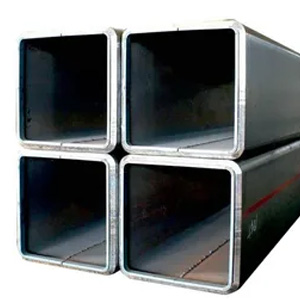

Cold Formed ASTM A500 Gr. A Square Hollow Section

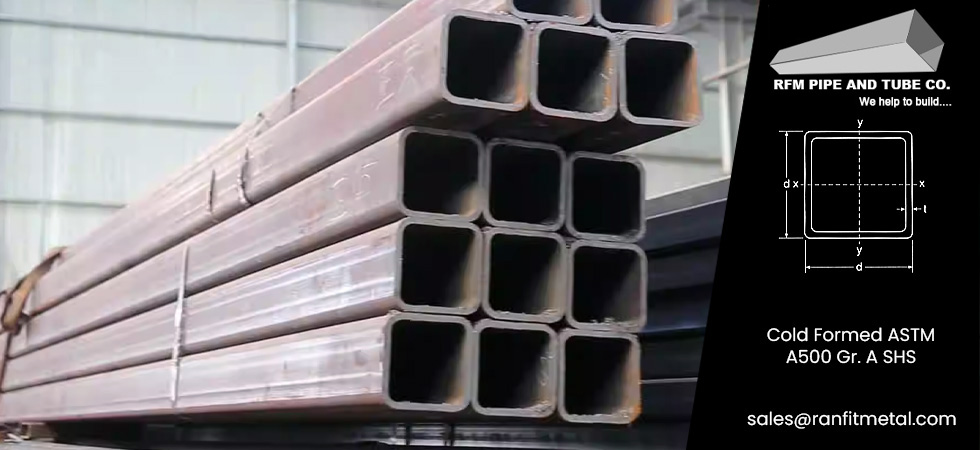

Cold Formed A500 Gr A SHS

Cold Formed ASTM A500 Gr A Square Hollow Section Manufacturer & Supplier in Mumbai, India.


A500 Gr A Cold Formed ERW SHS Pipes, Cold Formed ASTM A500 Gr A SHS Pipe, ASTM A500 Gr A Cold Formed Welded Structural Square Tubing, ASTM A500 Gr A Carbon Steel Square Hollow Section, Gr. A ASTM A500 CS Cold Formed Square Pipes Distributors, ASTM A500 Grade A Cold Formed MS Square Tube Stockists in India, ASTM A500 Gr A Seamless Cold Formed Square Hollow Section Tube, ASME SA500 Gr A Cold Formed SHS Tubing Suppliers in Mumbai, India.


Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed ASTM A500 Gr. A Square Hollow Section. Cold-formed ASTM A500 Grade A SHS are structural steel tubes commonly used in construction and engineering projects.

The ASTM A500 Grade A Square Hollow Section cold-formed welded and seamless tubing for structural purposes. ASTM A500 Gr. A Square Hollow Tubing is produced by either open-hearth, basic-oxygen, or electric-furnace melting process. Cold Formed ASTM A500 Gr. A Welded Square Hollow Pipes is made from flat-rolled steel using electric-resistance welding. In order to join frames and other components together, ASTM A500 Gr. A Square Hollow Box Section are utilized. LSAW, welded, ERW, seamless, and fabricated pipes are all available. They might be hydraulic, round, square, or rectangular. The pipe lengths and ends of ASME SA500 SHS tubing vary.

Because of its strength, ASTM A500 Gr. A SHS Pipe is utilized in structural applications. Because of their geometric shape and recognized structural strength, A500 Grade A Square Hollow Tubes are used. The nominal bore sizes of the pipes range from 1/8 inch to 30 inches.


ASTM A500 Gr A Cold Formed Welded Structural Square Tubing, ASTM A500 Gr A Carbon Steel Square Hollow Section, ASTM A500 Gr A Cold Formed Mild Steel Square Hollow Section Exporters in Mumbai, Cold Formed ASTM A500 Gr A Square Box Sections, Gr. A ASTM A500 CS Cold Formed Square Pipes Distributors, ASTM A500 Grade A Cold Formed MS Square Tube Stockists, ASME SA500 Gr A Cold Formed SHS Tubing, A500 Gr A Cold Formed ERW SHS Pipes Dealers, Cold Formed ASTM A500 Gr A SHS Pipe in India.


Key Standards

ASTM A500: Stands for Standard specification for cold-formed steel structural tubing.

Grade A: has the lowest yield strength compared to other grades (B, C, and D) in the ASTM A500 standard. It is often used when high strength is not critical.


Cold Formed ASTM A500 Gr. A Square Hollow Section Specifications

Standard No ASTM A500/ ASME SA500
Grade Grade A
SHS (Square Hollow Sections) Sizes 20*20mm-400*400mm
Outside Diameter 21.3—457.2mm
Wall Thickness 1.8—-14.27mm
Length 6000 – 12 000/18 000 mm
Straightness Min 1 = 200 of any lengths measured along the centre line unless otherwise specifically managed
Tolerance max 2 ± 0.05 mm
End Finish mill-cut finish without further machining, Plain ended-Mechanically sheared
Surface Finish Black without any surface treatment of oiling /varnishing.
Weldability Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating.

ASTM A500 Gr. A Square Hollow Section Chemical Properties

Steel Grade C, max P, max S, max Cu, min
ASTM A500 Grade A 0.26 0.035 0.035 0.20

ASTM A500 Gr. A Square Hollow Pipes & Tubes Mechanical Strength

Steel Grade Tensile strength, min Yield strength, min, Elongation in 2 in. (50.8 mm) min, %
ASTM A500 Grade A 427 MPa, 62 000 psi>
 345 MPa, 50 000 psi 21

Types of ASTM A500 Gr. A Hollow Section Square

ASTM A500 Gr. A Square Hollow Section

ASTM A500 Gr. A Square Hollow Pipes

ASTM A500 Gr. A Square Hollow Tubing

ASTM A500 Gr. A Structural Square Hollow Sections

ASTM A500 Gr. A Welded Square Hollow Pipes

Cold Formed ASTM A500 Gr. A SHS Tube

Cold Formed ASTM A500 Gr. A Square Hollow Section Size Chart

Size mm kg/m Size mm kg/m
20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35
25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43
25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04
30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14
30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81
40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92
40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46
40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28
50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71
50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72
50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34
60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54
60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28
70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11
70 x 70 x 6.3 12.50 70 x 70 x 8 15.30
75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22
80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70
80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01
90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30
90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40
100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00
100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80
100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90
100 x 100 x 10 27.90 120 x 120 x 5 18.00
120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30
120 x 120 x 8.0 27.90 120 x 120 x 10 34.20
120 X 120 X 12 35.8 120 X 120 X 12.5 41.60
140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30
140 X 140 X 8 32.90 140 X 140 X 10 40.40
140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70
150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40
150 X 150 X 10 43.60 150 X 150 X 12.5 53.40
150 X 150 X 16 66.40 150 X 150 X 16 66.40
180 X 180 X 5 27.40 180 X 180 X 6.3 34.20
180 X 180 X 8 43.00 180 X 180 X 10 53.00
180 X 180 X 12.5 65.20 180 X 180 X 16 81.40
200 X 200 X 5 30.50 200 X 200 X 6 35.8
200 x 200 x 6.3 38.2 200 x 200 x 8 48.00
200 x 200 x 10 59.30 200 x 200 x 12.5 73.00
200 x 200 x 16 91.50 250 x 250 x 6.3 48.10
250 x 250 x 8 60.50 250 x 250 x 10 75.00
250 x 250 x 12.5 92.60 250 x 250 x 16 117.00
300 x 300 x 6.3 57.90 300 x 300 x 8 73.10
300 x 300 x 10 57.90 300 x 300 x 8 90.70
300 x 300 x 12.5 112.00 300 x 300 x 16 142.00
350 x 350 x 8 85.70 350 x 350 x 10 106.00
350 x 350 x 12.5 132.00 350 x 350 x 16 167.00
400 x 400 x 10 122.00 400 x 400 x 12 141.00
400 x 400 x 12.5mm 152.00 400 x 400 x 16 192

ASTM A500 Gr. A CFSHS Tubing Weight Chart

Square Steel Pipe (mm)
OD WT OD WT
15*15 0.6–1.5 120*120 1.7—5.75
20*20 0.6—2.5 125*125 2.75-5.75
25*25 0.6—3.0 130*130 4.0—5.75
30*30 0.6—4.0 140*140 2.75-5.75
40*40 0.7—5.0 150*150 2.5-9.75
50*50 0.7—5.75 160*160 3.0-9.75
60*60 0.7—5.75 180*180 3.0-9.75
70*70 1.0—5.75 200*200 3.5-11.75
75*75 1.3—5.75 250*250 3.75-11.75
80*80 1.3—5.75 300*300 4.75-11.75
90*90 1.5—5.75 350*350 7.75-11.75
100*100 1.2—5.75 400*400 7.75-11.75

ASTM A500 Gr. A CFSHS Permissible Variations in Twist for Square Structural Tubing

Specified Dimension of Longest Side, in. (mm) Maximum Twist in the First 3 ft (1 m) and in each additional 3 ft
  in. mm
1½ (38.1) and under 0.050 1.39
Over 1½ to 2½ (38.1 to 63.5),incl 0.062 1.72
Over 2½ to 4 (63.5 to 101.6), incl 0.075 2.09
Over 4 to 6 (101.6 to 152.4), incl 0.087 2.42
Over 6 to 8 (152.4 to 203.2), incl 0.100 2.78
Over 8 (203) 0.112 3.11

Cold Formed ASTM A500 Gr A SHS

Buy High Quality Cold Formed ASTM A500 Gr A Square Hollow Section

Request the latest ASTM A500 Gr A SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

ASTM A500 Gr A SHS Available Types

ASTM A500 Gr. A Cold Formed Square Hollow Section Supplier in Mumbai ASTM A500 Grade A Welded Square Tubing
ASTM A500 Gr. A Cold Formed Square Box Sections ASTM A500 Gr. A Seamless Square Hollow Section Stockist
Cold Formed BS ASTM A500 Gr. A CS Hollow Square Tube, Welded Cold Formed ASTM A500 Gr. A SHS Pipe
ASTM A500 Grade A Cold Formed SHS Tube Stokist ASTM A500 Gr. A Structural Steel Piping
High Temperature 10219 ASTM A500 Gr. A Pipes ASTM A500 Gr. A MS Square Hollow Section Pipe
ASTM A500 Gr. A Cold Rolled Square Hollow Sections Supplier ASTM A500 Grade A Cold Formed SHS Manufacturer
ASTM A500 Grade A Cold Formed Seamless Pipe ASTM A500 Gr. A Cold Formed ERW Pipes
ASTM A500 Gr. A Carbon Steel Welded SHS Cold Formed ASTM A500 Grade A MS SHS Tube
ASTM A500 Grade A Seamless Cold Formed SHS Tubes ASTM A500 Gr. A Cold Formed Square Hollow Structural Sections
Schedule 40 ASTM A500 Gr. A Seamless Square Hollow Pipes Cold Formed ASTM A500 Grade A structural Hollow Sections (CFSHS)

Cold Formed ASTM A500 Gr. A SHS Manufacturing Process



ASTM A500 Gr. A Cold Formed Square Hollow Sections – Application Industrty

  • Petrochemical Industry
  • Aerospace Industry
  • Refineries
  • Construcion
  • Chemical Industry
  • Railway Industry
  • Oil & Gas Industry
  • Ship Building
