Cold Formed ASTM A500 Grade B Square Hollow Section

Cold Formed A500 Gr B SHS

Cold Formed ASTM A500 Gr B Square Hollow Section Manufacturer & Supplier in Mumbai, India.


A500 Gr. B Cold Formed SHS, ASTM A500 Gr B Cold Formed Square Hollow Section Welded Tube, Cold Formed ASTM A500 Gr B SHS Seamless Pipes, Gr.B ASTM A500 MS Cold Formed Square Section Exporter, ASTM A500 Gr B Carbon Steel Square Hollow Section Suppliers in Mumbai, ASTM A500 Gr B Seamless Cold Formed Square Hollow Section Tube, ASTM A500 Grade B Cold Formed MS Square Tube Stockists in India, A500 Gr B Cold Formed ERW SHS Pipes Dealers, ASTM A500 Gr B Cold Formed Welded Structural Square Tubing,Stockist in Mumbai, India.


Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed ASTM A500 Gr. B Square Hollow Section. ASTM A500 Grade B is a standard specification for cold-formed welded and seamless carbon steel structural tubing. When referring to square hollow sections (SHS), it describes square steel tubing with a uniform cross-section.

The Cold Formed ASTM A500 GR B Square Hollow Section comprises chromium, carbon, copper, and nitrogen content. These Cold Formed ASTM A500 Gr B Square Box Sections are manufactured using cutting-edge technology and excellent craftsmanship. It is prepared in accordance with international quality standards. It is made with materials that meet international requirements and specifications. The hollow section is widely employed in the construction of bridges and structures. This is a non-alloy product, made of steel. Cold Formed ASTM A500 Gr B Square Hollow Section is widely utilized in construction, particularly in the construction of buildings and bridges.

ASTM A500 Grade B SHS pipe has high strength, tensile strength, and malleability, making it suitable for handling significant pressures and loads. Its tremendous strength ensures long-term stability in building constructions and foundation work.


ASTM A500 Gr B Cold Formed Square Pipe, A500 Gr. B CF SHS, ASTM A500 Gr B Cold Formed Welded Square Hollow Section, ASTM A500 Grade B Cold-Formed Welded Carbon Steel SHS Tubing, Cold Formed ASTM A500 Gr B Seamless Square Hollow Section, Cold Formed ASTM A500 Gr B CS SHS Tube, Cold Formed ASTM A500 Gr B ERW SHS Tubing, ASTM A500 Gr B Cold Formed Square Tube, ASTM A500 Gr. B Cold-Formed Seamless Carbon Steel Square Tubing, , ASME SA500 Gr. B CS Cold Formed Square Hollow Section in India.


ASTM A500 Gr. B Key Standards

ASTM A500: Stands for Standard specification for cold-formed steel structural tubing.

Grade B: has the lowest yield strength compared to other grades (B, C, and D) in the ASTM A500 standard.


Cold Formed ASTM A500 Gr. B Square Hollow Section Specifications

Standard No ASTM A500/ ASME SA500
Grade Grade B
SHS (Square Hollow Sections) Sizes 20*20mm-400*400mm
Outside Diameter 21.3—457.2mm
Wall Thickness 1.8—-14.27mm
Length 6000 – 12 000/18 000 mm
Straightness Min 1 = 200 of any lengths measured along the centre line unless otherwise specifically managed
Tolerance max 2 ± 0.05 mm
End Finish mill-cut finish without further machining, Plain ended-Mechanically sheared
Surface Finish Black without any surface treatment of oiling /varnishing.
Weldability Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating.

ASTM A500 Gr. B Square Hollow Section Chemical Properties

Steel Grade C, max P, max S, max Cu, min
ASTM A500 Grade B 0.26 0.035 0.035 0.20

ASTM A500 Gr. B Square Hollow Pipes & Tubes Mechanical Strength

Standard MECHANICAL PROPERTIES
Yield Strength Tensile Strength Elongation min
MPa MPa 2in(50.8mm)
A500 Grade B 290 400 23

Types of ASTM A500 Gr. B Hollow Section Square

ASTM A500 Gr. B Square Hollow Section

ASTM A500 Gr. B Square Hollow Pipes

ASTM A500 Gr.B Square Hollow Tubing

ASTM A500 Gr. B Structural Square Hollow Sections

ASTM A500 Gr. B Welded Square Hollow Pipes

Cold Formed ASTM A500 Gr. B SHS Tube

Cold Formed ASTM A500 Gr. B Square Hollow Section Size Chart

Size mm kg/m Size mm kg/m
20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35
25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43
25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04
30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14
30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81
40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92
40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46
40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28
50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71
50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72
50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34
60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54
60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28
70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11
70 x 70 x 6.3 12.50 70 x 70 x 8 15.30
75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22
80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70
80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01
90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30
90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40
100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00
100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80
100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90
100 x 100 x 10 27.90 120 x 120 x 5 18.00
120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30
120 x 120 x 8.0 27.90 120 x 120 x 10 34.20
120 X 120 X 12 35.8 120 X 120 X 12.5 41.60
140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30
140 X 140 X 8 32.90 140 X 140 X 10 40.40
140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70
150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40
150 X 150 X 10 43.60 150 X 150 X 12.5 53.40
150 X 150 X 16 66.40 150 X 150 X 16 66.40
180 X 180 X 5 27.40 180 X 180 X 6.3 34.20
180 X 180 X 8 43.00 180 X 180 X 10 53.00
180 X 180 X 12.5 65.20 180 X 180 X 16 81.40
200 X 200 X 5 30.50 200 X 200 X 6 35.8
200 x 200 x 6.3 38.2 200 x 200 x 8 48.00
200 x 200 x 10 59.30 200 x 200 x 12.5 73.00
200 x 200 x 16 91.50 250 x 250 x 6.3 48.10
250 x 250 x 8 60.50 250 x 250 x 10 75.00
250 x 250 x 12.5 92.60 250 x 250 x 16 117.00
300 x 300 x 6.3 57.90 300 x 300 x 8 73.10
300 x 300 x 10 57.90 300 x 300 x 8 90.70
300 x 300 x 12.5 112.00 300 x 300 x 16 142.00
350 x 350 x 8 85.70 350 x 350 x 10 106.00
350 x 350 x 12.5 132.00 350 x 350 x 16 167.00
400 x 400 x 10 122.00 400 x 400 x 12 141.00
400 x 400 x 12.5mm 152.00 400 x 400 x 16 192

ASTM A500 Gr. B CFSHS Tubing Weight Chart

Square Steel Pipe (mm)
OD WT OD WT
15*15 0.6–1.5 120*120 1.7—5.75
20*20 0.6—2.5 125*125 2.75-5.75
25*25 0.6—3.0 130*130 4.0—5.75
30*30 0.6—4.0 140*140 2.75-5.75
40*40 0.7—5.0 150*150 2.5-9.75
50*50 0.7—5.75 160*160 3.0-9.75
60*60 0.7—5.75 180*180 3.0-9.75
70*70 1.0—5.75 200*200 3.5-11.75
75*75 1.3—5.75 250*250 3.75-11.75
80*80 1.3—5.75 300*300 4.75-11.75
90*90 1.5—5.75 350*350 7.75-11.75
100*100 1.2—5.75 400*400 7.75-11.75

ASTM A500 Gr. B CFSHS Permissible Variations in Twist for Square Structural Tubing

Specified Dimension of Longest Side, in. (mm) Maximum Twist in the First 3 ft (1 m) and in each additional 3 ft
  in. mm
1½ (38.1) and under 0.050 1.39
Over 1½ to 2½ (38.1 to 63.5),incl 0.062 1.72
Over 2½ to 4 (63.5 to 101.6), incl 0.075 2.09
Over 4 to 6 (101.6 to 152.4), incl 0.087 2.42
Over 6 to 8 (152.4 to 203.2), incl 0.100 2.78
Over 8 (203) 0.112 3.11

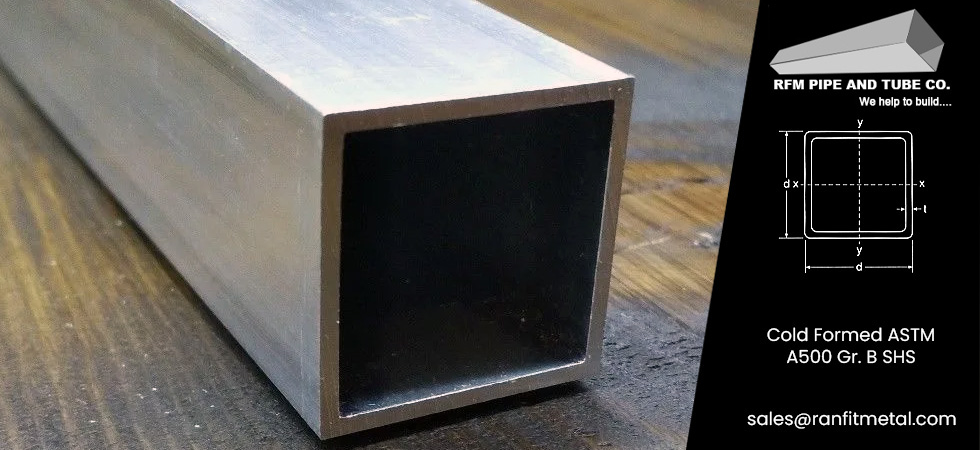

Cold Formed ASTM A500 Gr B SHS

Buy High Quality Cold Formed ASTM A500 Gr B Square Hollow Section

Request the latest ASTM A500 Gr B SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

ASTM A500 Gr B SHS Available Types

ASTM A500 Gr. B Cold Formed Square Hollow Section Supplier in Mumbai ASTM A500 Gr. B Welded Square Tubing,
ASTM A500 Gr. B Cold Formed Square Box Sections ASTM A500 Gr. B Seamless Square Hollow Section Stockist
Cold Formed BS ASTM A500 Gr. B CS Hollow Square Tube, Welded Cold Formed ASTM A500 Gr. B SHS Pipe
ASTM A500 Gr. B Cold Formed SHS Tube Stokist ASTM A500 Gr. B Structural Steel Piping
High Temperature 10219 ASTM A500 Gr. B Pipes ASTM A500 Gr. B MS Square Hollow Section Pipe
ASTM A500 Gr. B Cold Rolled Square Hollow Sections Supplier ASTM A500 Gr. B Cold Formed SHS Manufacturer
ASTM A500 Gr. B Cold Formed Seamless Pipe ASTM A500 Gr. B Cold Formed ERW Pipes
ASTM A500 Gr. B Carbon Steel Welded SHS Cold Formed ASTM A500 Gr. B MS SHS Tube
ASTM A500 Gr. B Seamless Cold Formed SHS Tubes ASTM A500 Gr. B Cold Formed Square Hollow Structural Sections
Schedule 40 ASTM A500 Gr. B Seamless Square Hollow Pipes Cold Formed ASTM A500 Gr. B structural Hollow Sections (CFSHS)

Cold Formed ASTM A500 Gr. B SHS Manufacturing Process



ASTM A500 Gr. B Cold Formed Square Hollow Sections – Application Industrty

  • Petrochemical Industry
  • Aerospace Industry
  • Refineries
  • Construcion
  • Chemical Industry
  • Railway Industry
  • Oil & Gas Industry
  • Ship Building
