ASTM A500 Gr. C Square Hollow Section

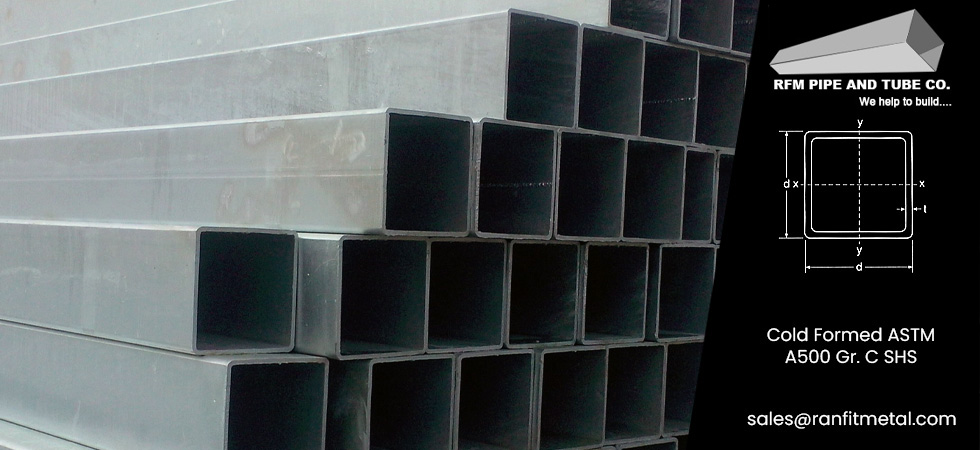

Cold Formed ASTM A500 Grade C Square Hollow Section
Cold Formed ASTM A500 Gr C Square Hollow Section Manufacturer & Supplier in Mumbai, India.
A500 Gr. C Cold Formed SHS, ASTM A500 Gr. C Cold Formed Square Hollow Section Welded Tube, Cold Formed ASTM A500 Gr. C SHS Seamless Pipes, Gr. C ASTM A500 MS Cold Formed Square Section Exporter, ASTM A500 Gr. C Carbon Steel Square Hollow Section Suppliers in Mumbai, ASTM A500 Gr. C Seamless Cold Formed Square Hollow Section Tube, ASTM A500 Grade C Cold Formed MS Square Tube Stockists in India, A500 Gr. C Cold Formed ERW SHS Pipes Dealers, ASTM A500 Gr. C Cold Formed Welded Structural Square Tubing Stockist in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed ASTM A500 Gr. C Square Hollow Section. Cold-formed ASTM A500 Grade C square hollow sections (SHS) are structural steel tubing made to the ASTM A500 specification, a standard in the U.S. for cold-formed, welded, and seamless carbon steel structural tubing.
The Cold Formed ASTM A500 GR C Square Hollow Section Produced without heating the material to high temperatures, improving dimensional accuracy and surface finish. ASTM A500 Gr Cold Formed Welded Structural Square Tubing is distinguished by its durability due to the use of high-quality raw materials, good conductivity and welding qualities, and corrosion resistance to a wide range of corrosive environments. Outside dimensions of A500 Gr, C SHS Pipes, as measured across the flats at least 2 inches [5 centimeters] from the tube ends, shall not differ by more than the tolerance for convexity or concavity. For ASTM A500 Grade C structural tubes, the allowable variance is 1/8in. times the number of feet [10 mm times the number of meters] divided by 5.
ASTM A500 Gr C Square Tube is designed with a square cross-sectional area with all sides having equal lengths. The Cold Formed ASTM A500 Gr C Square Hollow Section has high tensile strength and is utilized for construction and oil field services.
ASTM A500 Gr. C Cold Formed Square Pipe, A500 Grade C CF SHS, ASTM A500 Gr. C Cold Formed Welded Square Hollow Section, ASTM A500 Grade C Cold-Formed Welded Carbon Steel SHS Tubing, Cold Formed ASTM A500 Gr. C Seamless Square Hollow Section, Cold Formed ASTM A500 Gr. C CS SHS Tube, Cold Formed ASTM A500 Gr. C ERW SHS Tubing, ASTM A500 Gr. C Cold Formed Square Tube, ASTM A500 Gr. C Cold-Formed Seamless Carbon Steel Square Tubing, ASME SA500 Gr. C CS Cold Formed Square Hollow Section in India.
ASTM A500 Grade C Key Standards
ASTM A500: Stands for Standard specification for cold-formed steel structural tubing.
Grade C: Represents Grade C, which is the highest strength designation under the ASTM A500 standard.
Cold Formed ASTM A500 Gr. B Square Hollow Section Specifications
| Standard No | ASTM A500/ ASME SA500 |
| Grade | Grade C |
| SHS (Square Hollow Sections) Sizes | 20*20mm-400*400mm |
| Outside Diameter | 21.3—457.2mm |
| Wall Thickness | 1.8—-14.27mm |
| Length | 6000 – 12 000/18 000 mm |
| Straightness | Min 1 = 200 of any lengths measured along the centre line unless otherwise specifically managed |
| Tolerance | max 2 ± 0.05 mm |
| End Finish | mill-cut finish without further machining, Plain ended-Mechanically sheared |
| Surface Finish | Black without any surface treatment of oiling /varnishing. |
| Weldability | Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating. |
ASTM A500 Gr. C Square Hollow Section Chemical Properties
| Standard | CHEMICAL COMPOSITION | ||||
| C | Si | Mn | P | S | |
| Max% | Max% | Max% | Max% | Max% | |
| A500 Gr. C | 0.23 | - | 1.35 | 0.035 | 0.035 |
ASTM A500 Gr. B Square Hollow Pipes & Tubes Mechanical Strength
| Standard | MECHANICAL PROPERTIES | ||
| Yield Strength | Tensile Strength | Elongation min | |
| MPa | MPa | 2in(50.8mm) | |
| A500 Grade B | 315 | 425 | 21 |
Types of ASTM A500 Gr. B Hollow Section Square

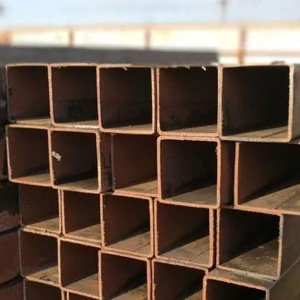

ASTM A500 Gr. C Square Hollow Pipes

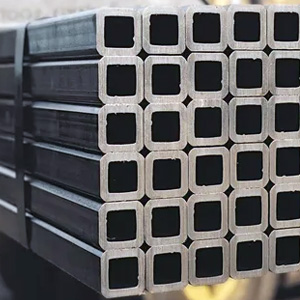

ASTM A500 Gr.C Square Hollow Tubing

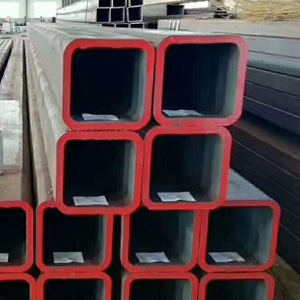

ASTM A500 Gr. C Structural Square Hollow Sections

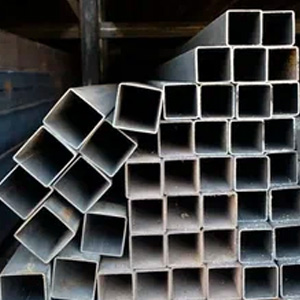

ASTM A500 Gr. C Welded Square Hollow Pipes

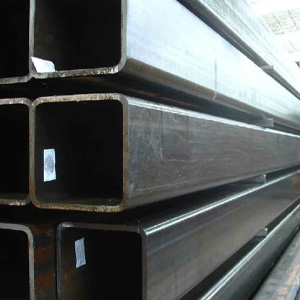

Cold Formed ASTM A500 Grade C SHS Tube
Cold Formed ASTM A500 Gr C Square Hollow Section Size Chart
| Size mm | kg/m | Size mm | kg/m |
|---|---|---|---|
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
ASTM A500 Gr C CFSHS Tubing Weight Chart
| Square Steel Pipe (mm) | |||
|---|---|---|---|
| OD | WT | OD | WT |
| 15*15 | 0.6–1.5 | 120*120 | 1.7—5.75 |
| 20*20 | 0.6—2.5 | 125*125 | 2.75-5.75 |
| 25*25 | 0.6—3.0 | 130*130 | 4.0—5.75 |
| 30*30 | 0.6—4.0 | 140*140 | 2.75-5.75 |
| 40*40 | 0.7—5.0 | 150*150 | 2.5-9.75 |
| 50*50 | 0.7—5.75 | 160*160 | 3.0-9.75 |
| 60*60 | 0.7—5.75 | 180*180 | 3.0-9.75 |
| 70*70 | 1.0—5.75 | 200*200 | 3.5-11.75 |
| 75*75 | 1.3—5.75 | 250*250 | 3.75-11.75 |
| 80*80 | 1.3—5.75 | 300*300 | 4.75-11.75 |
| 90*90 | 1.5—5.75 | 350*350 | 7.75-11.75 |
| 100*100 | 1.2—5.75 | 400*400 | 7.75-11.75 |
ASTM A500 Gr. C CFSHS Permissible Variations in Twist for Square Structural Tubing
| Specified Dimension of Longest Side, in. (mm) | Maximum Twist in the First 3 ft (1 m) and in each additional 3 ft | |
|---|---|---|
| in. | mm | |
| 1½ (38.1) and under | 0.050 | 1.39 |
| Over 1½ to 2½ (38.1 to 63.5),incl | 0.062 | 1.72 |
| Over 2½ to 4 (63.5 to 101.6), incl | 0.075 | 2.09 |
| Over 4 to 6 (101.6 to 152.4), incl | 0.087 | 2.42 |
| Over 6 to 8 (152.4 to 203.2), incl | 0.100 | 2.78 |
| Over 8 (203) | 0.112 | 3.11 |
Buy High Quality Cold Formed ASTM A500 Gr C Square Hollow Section
Request the latest ASTM A500 Gr C SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
ASTM A500 Gr C SHS Available Types
| ASTM A500 Gr. C Cold Formed Square Hollow Section Supplier in Mumbai | ASTM A500 Gr. C Welded Square Tubing, |
| ASTM A500 Gr. C Cold Formed Square Box Sections | ASTM A500 Gr. C Seamless Square Hollow Section Stockist |
| Cold Formed ASTM A500 Gr. C CS Hollow Square Tube, | Welded Cold Formed ASTM A500 Gr. C SHS Pipe |
| ASTM A500 Gr. C Cold Formed SHS Tube Stokist | ASTM A500 Gr. C Structural Steel Piping |
| High Temperature ASTM A500 Gr. C Pipes | ASTM A500 Gr. C MS Square Hollow Section Pipe |
| ASTM A500 Gr. C Cold Rolled Square Hollow Sections Supplier | ASTM A500 Gr. C Cold Formed SHS Manufacturer |
| ASTM A500 Gr. C Cold Formed Seamless Pipe | ASTM A500 Gr. C Cold Formed ERW Pipes |
| ASTM A500 Gr. C Carbon Steel Welded SHS | Cold Formed ASTM A500 Gr. C MS SHS Tube |
| ASTM A500 Gr. C Seamless Cold Formed SHS Tubes | ASTM A500 Gr. C Cold Formed Square Hollow Structural Sections |
| Schedule 40 ASTM A500 Gr. C Seamless Square Hollow Pipes | Cold Formed ASTM A500 Gr. C structural Hollow Sections (CFSHS) |
Cold Formed ASTM A500 Grade C SHS Manufacturing Process
ASTM A500 Grade C Cold Formed Square Hollow Sections – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
