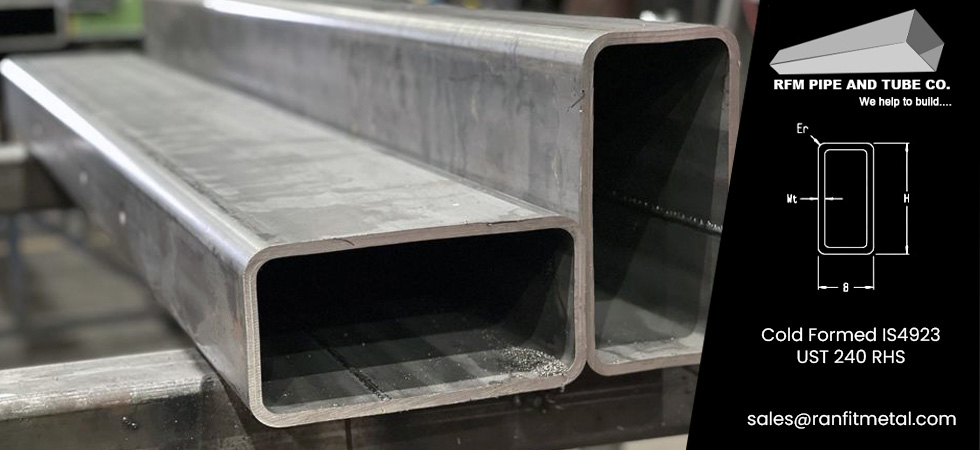

Cold Formed IS 4923 YST 240 Rectangular Hollow Section

IS 4923 yst 240 Carbon Pipe

Cold Formed IS 4923 YST 210 Rectangular Hollow Section Manufacturer, SS IS 4923 YST 210 Hollow Section Supplier in Mumbai, India.


Cold Formed YST 240 CS RHS Tube, IS 4923 YST 240 Cold Formed Rectangular Hollow Section Welded Tube, IS4923 YST 240 MS Cold Formed Rectangular Section, IS 4923 YST 240 Cold Formed Rectangular Pipe, IS 4923 YST 240 Cold Formed Rectangular Tube, IS 4923 YST 240 CS Cold Formed Rectangular Hollow Section, IS 4923 YST 240 Cold Formed Welded Rectangular Hollow Section, IS 4923 Cold Formed YST 240 RHS Seamless Pipes, Cold Formed IS 4923 YST 240 Seamless Rectangular Hollow Section, Stockist in Mumbai, India.


Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed IS4923 YST 240 Rectangular Hollow Section. Cold Formed IS 4923 YST 240 Rectangular Hollow Section refers to a type of structural steel tubing manufactured according to the Indian Standard (IS 4923).

Cold Formed IS4923 YST 240 Carbon Pipe is High strength-to-weight ratio, allowing for reduced material usage and cost savings. Cold Formed IS4923 YST 240 RHS Tubing is easy to fabricate and assemble, reducing construction time and costs. The cold forming process used to manufacture these IS4923 YST 240 Rectangular Hollow Section ensures a high degree of accuracy and precision, resulting in a consistent and reliable product. The "YST 240" designation refers to the yield strength of the steel, which is 240 MPa (Megapascals).

Cold Formed IS4923 YST 240 RHS is a versatile and reliable structural steel section that offers a range of benefits and applications. Its high strength, precision, and corrosion resistance make it an ideal choice for many industries and projects.


YST240 Cold Formed RHS, IS-4923 YST 240 CF RHS, Cold Formed IS-4923 YST 240 ERW RHS Tubing Suppliers, IS 4923 YST 240 Cold Formed RHS Tubes, IS 4923 YST-240 Cold Formed Rectangular Box Sections, IS 4923 YST 240 Cold Formed Carbon Steel Rectangular Hollow Section, Cold Formed IS 4923 YST 240 RHS Pipe, IS-4923 YST 240 MS Cold Formed Rectangular Tube, IS 4923 YST-240 Cold Formed Rectangular Box Section, Cold Formed YST240 Mild Steel Rectangular Hollow Section Supplier in India.


Key Standards

IS 4923: Indian Standard for Hollow Steel Sections for Structural Use.

YST 240: YST 240 (Yield Strength of 240 MPa).


Cold Formed IS4923 YST 240 Rectangular Hollow Section Specifications

Standard IS 4923
Grade YST 240
RHS (Rectangular Hollow Sections) Sizes 10mm x 15mm / 150mmx50mm / 300mmx400mm / 600mmx550mm
Outside Diameter 21.3—457.2mm
Wall Thickness 0.5mm - 25mm
Length 6000-14000 mm
Straightness Minimum 1 : 200th of any length measured along the centre line (mill straightened condition) unless otherwise specifically arranged.
Tolerance Thickness (All sizes +/- 10%)
Surface Protection Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
Packing In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark

Cold Formed IS 4923 YST 240 Rectangular Hollow Section Chemical Composition

Specification Steel Grade C Si Mn P S
IS 4923 YST 240 0.12% max. 0.03% to 0.08% 0.50% max. 0.05% max. 0.05% max.

IS 4923 YST 240 CFRHS Pipes & Tubes Mechanical Strength

Grade Min. Tensile Strength Mpa Min. Yield Stress Mpa Min. Elongation Percent for size
25.4 and under over25.4
YST 210 410 240 10 15

Types of IS 4923 YST 240 Hollow Section Rectangular

IS 4923 YST 240 Rectangular Hollow Section

IS 4923 YST 240 Rectangular Hollow Pipes

IS 4923 YST 240 Rectangular Hollow Tubing

IS 4923 YST 240 Structural Rectangular Hollow Sections

IS 4923 YST 240 Welded Rectangular Hollow Pipes

cold formed IS 4923 YST 240 Rectangular SHS Tube

Cold Formed IS 4923 YST 240 Rectangular Hollow Section Size Chart

Size mm kg/m Size mm kg/m
40 x 20 x 2.0 1.68 40 x 20 x 2.5 2.03
40 x 20 x 3.0 2.36 40 x 25 x 1.5 1.44
40 x 25 x 2.0 1.89 40 x 25 x 2.5 2.23
50 x 25 x 2.0 2.21 50 x 25 x 2.5 2.72
50 x 25 x 3.0 3.22 50 x 30 x 2.5 2.92
50 x 30 x 3.0 3.45 50 x 30 x 4.0 4.46
50 x 40 x 3.0 3.77 60 x 40 x 2.0 2.93
60 x 40 x 2.5 3.71 60 x 40 x 3.0 4.39
60 x 40 x 4.0 5.72 70 x 50 x 2 3.56
70 x 50 x 2.5 4.39 70 x 50 x 3.0 5.19
70 x 50 x 4.0 6.71 80 x 40 x 2.5 4.26
80 x 40 x 3.0 5.34 80 x 40 x 4.0 6.97
80 x 40 x 5.0 8.54 80 x 50 x 3.0 5.66
80 x 50 x 4.0 7.34 90 x 50 x 3.0 6.28
90 x 50 x 3.6 7.46 90 x 50 x 5.0 10.11
100 x 50 x 2.5 5.63 100 x 50 x 3.0 6.75
100 x 50 x 4.0 8.86 100 x 50 x 5.0 10.90
100 x 60 x 3.0 7.22 100 x 60 x 3.6 8.59
100 x 60 x 5.0 11.70 120 x 80 x 2.5 7.65
120 x 80 x 3.0 9.03 120 x 80 x 4.0 12.00
120 x 80 x 5.0 14.80 120 x 80 x 6.0 17.60
120 x 80 x 8.0 22.9 150 x 100 x 5.0 18.70
150 x 100 x 6.0 22.30 150 x 100 x 8.0 29.10
150 x 100 x 10.0 35.70 160 x 80 x 5.0 18.00
160 x 80 x 6.0 21.30 160 x 80 x 8.0 27.90
200 x 100 x 5.0 22.70 200 x 100 x 6.0 27.00
200 x 100 x 8.0 35.4 200 x 100 x 10.0 43.60
250 x 150 x 5.0 30.5 250 x 150 x 6.0 38.2
250 x 150 x 8.0 48.0 250 x 150 x 10 59.3
300 x 200 x 6.0 48.10 300 x 200 x 8.0 60.50
300 x 200 x 10.0 75.00 400 x 200 x 8.0 73.10
400 x 200 x 10.0 90.70 400 x 200 x 16 142.00

RHS Thickness Sec Area Unit Moment of Inertia Radius of Gyration Elastic Modulus Torsional Constants Outer
Surface Area
mm mm cm2 kg/m cm4 cm4 cm cm cm3 cm3 cm4 cm3 m2
50x25 2 2.74 2.15 8.38 2.81 1.75 1.01 3.35 2.25 6.97 3.79 0.142
2.6 3.46 2.71 10.16 3.36 1.71 0.99 4.06 2.69 8.27 4.53 0.137
3.2 4.13 3.24 11.63 3.8 1.68 0.96 4.35 3.04 9.52 5.12 0.134
4 4.95 3.88 13.13 4.23 1.63 0.92 5.25 3.38 10.86 5.69 0.129
60x40 2.26 4.76 3.73 22.76 12.09 2.19 1.59 7.59 6.05 25.59 9.83 0.187
2.9 5.25 4.12 24.74 13.11 2.17 1.58 8.25 6.56 28.02 10.66 0.185
3.6 6.35 4.98 28.9 15.23 2.13 1.55 9.63 7.62 33.3 12.41 0.181
4.5 7.67 6.02 33.31 17.44 2.08 1.51 11.1 8.72 39.34 14.29 0.177
60x33 2.6 4.7 3.69 25.15 8.43 2.31 1.34 7.62 5.11 20.75 8.71 0.185
2.9 5.19 4.07 27.33 9.12 2.29 1.33 8.28 5.53 22.65 9.43 0.183
3.6 6.28 4.93 31.87 10.52 2.25 1.29 9.66 6.37 26.71 10.9 0.179
4.5 7.58 5.95 36.64 11.93 2.20 1.25 11.1 7.23 31.21 12.43 0.175
80x40 2.6 5.8 4.55 46.58 15.74 2.84 1.65 11.65 7.87 38.5 13.46 0.227
2.9 6.41 5.03 50.87 17.11 2.82 1.63 12.72 8.56 42.23 14.66 0.225
3.2 7.01 5.5 54.94 18.41 2.8 1.62 13.74 9.21 45.83 15.78 0.224
4 8.55 6.71 64.79 21.49 2.75 1.59 16.2 10.74 54.77 18.49 0.219
4.8 10.01 7.85 73.22 24.03 2.71 1.55 18.3 12.02 62.81 20.79 0.215
96x48 3.2 8.54 6.71 98.61 33.28 3.4 1.97 20.54 13.87 82.13 23.82 0.272
4 10.47 8.22 117.54 39.32 3.35 1.94 24.49 16.38 99.11 28.24 0.267
4.8 12.31 9.66 134.35 44.55 3.3 1.9 27.99 18.56 114.8 32.14 0.263
122x61 3.6 12.32 9.67 232.61 78.83 4.34 2.53 38.13 25.85 193.91 44.5 0.347
4.5 15.14 11.88 278.94 93.78 4.29 2.49 45.73 30.75 235.39 53.13 0.343
5.4 17.85 14.01 320.83 107.03 4.24 2.45 52.6 35.09 347.29 60.89 0.338
120x60 3.2 10.85 8.51 199.88 67.95 4.29 2.5 33.31 22.65 165.83 28.95 0.344
3.6 12.11 9.5 220.75 74.77 4.27 2.48 36.79 24.92 184.1 42.91 0.341
4.5 14.87 11.67 264.52 88.88 4.22 2.44 44.09 29.63 223.34 51.19 0.337
145x82 4.8 20.28 15.92 555.16 228.50 5.23 3.36 76.57 55.73 534.27 94.45 0.429
5.4 22.6 17.74 610.85 250.59 5.2 3.33 84.26 61.12 592.7 103.81 0.426

Cold Formed IS 4923 YST 240 RHS Pipes Dimension

Size (inches) Wall Thickness (inches) Outside Diameter (inches)
Inside Diameter (inches)
1/2 x 1/2 0.065 0.84 0.61
3/4 x 3/4 0.065 1.05 0.82
1 x 1 0.065 1.315 1.049
1 x 1 0.083 1.315 1.035
1 x 1 0.109 1.315 0.957
1-1/4 x 1-1/4 0.065 1.66 1.38
1-1/4 x 1-1/4 0.083 1.66 1.334
1-1/4 x 1-1/4 0.109 1.66 1.278
1-1/2 x 1-1/2 0.065 1.9 1.61
1-1/2 x 1-1/2 0.083 1.9 1.584
1-1/2 x 1-1/2 0.109 1.9 1.5
2 x 2 0.065 2.375 2.245
2 x 2 0.083 2.375 2.307
2 x 2 0.109 2.375 2.245
2-1/2 x 2-1/2 0.083 2.875 2.709
2-1/2 x 2-1/2 0.109 2.875 2.625
3 x 3 0.083 3.5 3.334
3 x 3 0.109 3.5 3.26
3-1/2 x 3-1/2 0.109 4 3.834
4 x 4 0.083 4.5 4.334
4 x 4 0.109 4.5 4.26
4 x 4 0.188 4.5 4.124
5 x 5 0.188 5 4.624
6 x 6 0.188 6 5.624

Cold Formed IS 4923 YST 240 Dimensional Tolerances

Dimensions less than 100mm +/- 1.0% with a minimum of +/- 0.5mm
Dimensions 100mm up to 200mm +/- 0.8%
Dimensions over 200mm +/- 0.6%
Wall thickness (excluding weld area) +/-10% for specified thickness of 5mm or below and +/-0.5mm for thickness greater than 5mm
Concavity/Convexity Max. 0.8% with a minimum of 0.5mm
Squareness of sides 90 Degree +/- 1 Degree
Externalcorner radius 6mm thick or below: 1.6 to 2.4 x wall thickness
Straightness 0.15% of total length
Twist 2mm + ( 0.5mm per mtr ) max

IS 4923 YST 240

Buy High Quality Cold Formed IS 4923 YST 240 Square Rectangular Section

Request the latest IS 4923 YST 240 Rectangular SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

ASTM A500 IS 4923 YST 240 RHS Available Types

Cold formed IS 4923 YST 240 welded structural hollow sections IS 4923 YST 240 Cold Formed RHS Corner Radius
IS 4923 YST 240 Rectangular Hollow Cold Formed Section IS 4923 YST 240 Carbon Steel Seamless RHS Tube
IS 4923 Cold Formed YST 240 MS RHS Tube YST 240 Welded RHS Tubes
Cold formed IS 4923 YST 240 structural hollow sections (CFRHS) YST 240 Cold Formed Rectangular Hollow Section
IS 4923 YST 240 Cold finished Rectangular hollow section IS 4923 Cold Formed YST 240 RHS
IS 4923 YST 240 Seamless Cold Formed Rectangular Hollow Section Tubing Cold Formed IS 4923 YST 240 Carbon Steel Tubes
IS 4923 Grade YST 240 Cold Formed ERW Rectangular Hollow Section Cold Formed IS 4923 YST 240 MS RHS Pipe
IS 4923 YST 240 Cold Formed RHS Tube IS4923 YST 240 Steel Cold Formed Rectangular Section
Cold Formed IS 4923 YST 240 CS Hollow Rectangular Tube IS 4923 YST 240 Mild Steel Pipes and tubes
IS 4923 YST 240 Cold Formed Rectangular Hollow Section YST 240 Cold Formed Rectangular Welded box sections
IS 4923 YST 240 Cold Formed CS Rectangular Hollow Section IS 4923 YST 240 Cold Rolled Rectangular hollow sections
Cold Formed Hollow Section IS 4923 YST 240 Cold Formed YST 240 Rectangular Hollow Section
IS 4923 YST 240 Hollow Section Rectangular IS 4923 YST 240 Cold Formed Seamless Pipe
Welded Cold Formed IS-4923 YST240 RHS Pipe IS 4923 YST 240 Cold formed hollow sections with Rectangular section
IS 4923 YST 240 Cold Formed Rectangular Hollow Structural Sections Cold Formed IS 4923 YST 240 Rectangular hollow section Tubes
YST 240 Electric Resistance Welded Cold Formed RHS Tubes IS 4923 YST 240 Rectangular Hollow Section Corner Radius
Cold Formed IS 4923 YST 240 Carbon Steel Rectangular Hollow Section YST 240 Cold Formed Rectangular Box Sections
IS 4923 YST 240 RHS Section IS 4923 YST 240 Cold Rolled Steel Hollow Section
Cold Formed YST 240 Rectangular Hollow Section IS 4923 YST 240 MS Rectangular Hollow Section Pipe
YST 240 Rectangular Hollow Section YST 240 Seamless Rectangular Hollow Section
YST 240 Cold Formed Seamless RHS Tube IS 4923 YST 240 Cold Formed Welded Rectangular Hollow Section
IS 4923 YST 240 Cold Formed Rectangular steel box section Cold Formed IS 4923 YST 240 Seamless RHS Pipe
YST 240 Rectangular Pipe Weight Chart India IS 4923 YST 240 Cold Formed Rectangular Structural Section
Cheap Cold Formed IS-4923 YST 240 ERW RHS Pipe Cold Formed IS 4923 YST-240 Hollow Section Rectangular Pipe
YST 240 Welded Rectangular Tubing IS 4923 YST 240 Cold Formed Welded Tube

Cold Formed IS 4923 YST 240 SHS Manufacturing Process



IS 4923 YST 240 Cold Formed Rectangular Hollow Sections – Application Industrty
