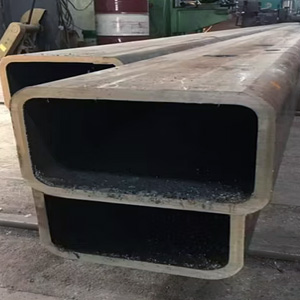

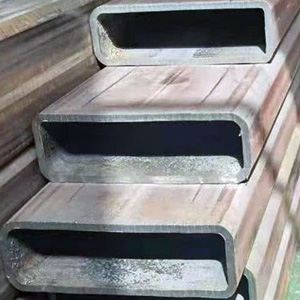

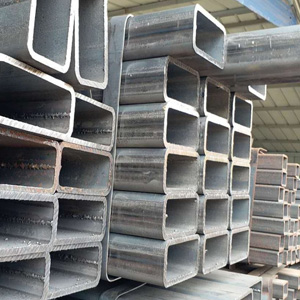

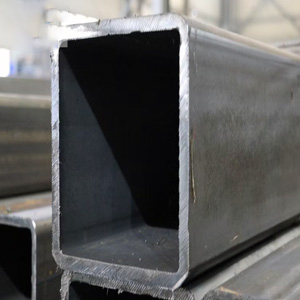

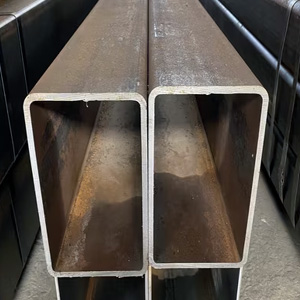

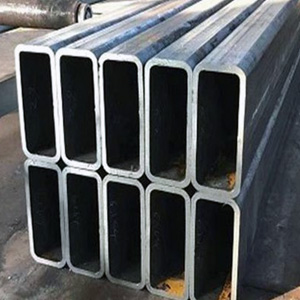

Cold Formed IS 4923 YST 210 Rectangular Hollow Section

IS 4923 yst 210 Carbon Pipe

Cold Formed IS 4923 YST 210 Rectangular Hollow Section Manufacturer, SS IS 4923 YST 210 Hollow Section Supplier in Mumbai, India.


IS 4923 YST 210 Cold Formed Welded Rectangular Hollow Section, IS-4923 YST 210 CF RHS, Cold Formed IS 4923 YST 210 Seamless Rectangular Hollow Section, Cold Formed IS-4923 YST 210 ERW RHS Tubing, IS 4923 YST 210 Cold Formed Rectangular Pipe, IS 4923 YST 210 Cold Formed Rectangular Tube, YST210 Cold Formed RHS, Cold Formed YST 210 CS RHS Tube, IS 4923 YST 210 CS Cold Formed Rectangular Hollow Section , IS 4923 YST 210 Cold Formed Rectangular Hollow Section Welded Tube, Stockist in Mumbai, India.


Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed IS4923 YST 210 Rectangular Hollow Section. These sections are typically used in construction and engineering applications due to their strength, versatility, and ability to withstand various loads

Cold Formed IS4923 YST 210 Carbon Line Pipe is excellent corrosion resistance, making it suitable for use in harsh environments. Cold Formed IS4923 YST 210 RHS Tubing are a reliable and versatile choice for a wide range of construction and engineering projects. The cold forming process used to manufacture these IS4923 YST 210 Rectangular Hollow Section ensures a high degree of accuracy and precision, resulting in a consistent and reliable product.

The different grade IS 4923 YST 210 Hollow Section Tubing material has different combination of compositions which provide the different yield strengths. These IS 4923 YST RHS Pipes possesses high tensile strength and can be used in high elevated temperature.


IS4923 YST 210 MS Cold Formed Rectangular Section, IS 4923 Cold Formed YST 210 RHS Seamless Pipes, IS-4923 YST 210 MS Cold Formed Rectangular Tube, Cold Formed IS 4923 YST 210 RHS Pipe, Cold Formed YST210 Mild Steel Rectangular Hollow Section Exporters, YST 210 CS Cold Formed Rectangular Pipes Distributors, IS 4923 YST 210 Cold Formed Carbon Steel Rectangular Hollow Section Suppliers in Mumbai, IS 4923 YST 210 Cold Formed RHS Tubes, IS 4923 YST-210 Cold Formed Rectangular Box Sections Supplier in India.


Key Standards

IS 4923: Indian Standard for Hollow Steel Sections for Structural Use.

YST 210: Yield Strength designation (210 MPa).


Cold Formed IS 4923 YST 210 Rectangular Hollow Section Specifications

Standard IS 4923
Grade YST 210
RHS (Rectangular Hollow Sections) Sizes 10mm x 15mm / 150mmx50mm / 300mmx400mm / 600mmx550mm
Outside Diameter 21.3—457.2mm
Wall Thickness 0.5mm - 25mm
Length 6000-14000 mm
Straightness Minimum 1 : 200th of any length measured along the centre line (mill straightened condition) unless otherwise specifically arranged.
Tolerance Thickness (All sizes +/- 10%)
Surface Protection Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
Packing In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark

Cold Formed IS 4923 YST 210 Rectangular Hollow Section Chemical Composition

Specification Steel Grade C Si Mn P S
IS 4923 YST 210 0.12% max. 0.03% to 0.08% 0.50% max. 0.05% max. 0.05% max.

IS 4923 YST 210 CFRHS Pipes & Tubes Mechanical Strength

Grade Min. Tensile Strength Mpa Min. Yield Stress Mpa Min. Elongation Percent for size
25.4 and under over25.4
YST 210 330 210 12 20

Types of IS 4923 YST 210 Hollow Section Rectangular

IS 4923 YST 210 Rectangular Hollow Section

IS 4923 YST 210 Rectangular Hollow Pipes

IS 4923 YST 210 Rectangular Hollow Tubing

IS 4923 YST 210 Structural Rectangular Hollow Sections

IS 4923 YST 210 Welded Rectangular Hollow Pipes

cold formed IS 4923 YST 210 Rectangular SHS Tube

Cold Formed IS 4923 YST 210 Rectangular Hollow Section Size Chart

Size mm kg/m Size mm kg/m
40 x 20 x 2.0 1.68 40 x 20 x 2.5 2.03
40 x 20 x 3.0 2.36 40 x 25 x 1.5 1.44
40 x 25 x 2.0 1.89 40 x 25 x 2.5 2.23
50 x 25 x 2.0 2.21 50 x 25 x 2.5 2.72
50 x 25 x 3.0 3.22 50 x 30 x 2.5 2.92
50 x 30 x 3.0 3.45 50 x 30 x 4.0 4.46
50 x 40 x 3.0 3.77 60 x 40 x 2.0 2.93
60 x 40 x 2.5 3.71 60 x 40 x 3.0 4.39
60 x 40 x 4.0 5.72 70 x 50 x 2 3.56
70 x 50 x 2.5 4.39 70 x 50 x 3.0 5.19
70 x 50 x 4.0 6.71 80 x 40 x 2.5 4.26
80 x 40 x 3.0 5.34 80 x 40 x 4.0 6.97
80 x 40 x 5.0 8.54 80 x 50 x 3.0 5.66
80 x 50 x 4.0 7.34 90 x 50 x 3.0 6.28
90 x 50 x 3.6 7.46 90 x 50 x 5.0 10.11
100 x 50 x 2.5 5.63 100 x 50 x 3.0 6.75
100 x 50 x 4.0 8.86 100 x 50 x 5.0 10.90
100 x 60 x 3.0 7.22 100 x 60 x 3.6 8.59
100 x 60 x 5.0 11.70 120 x 80 x 2.5 7.65
120 x 80 x 3.0 9.03 120 x 80 x 4.0 12.00
120 x 80 x 5.0 14.80 120 x 80 x 6.0 17.60
120 x 80 x 8.0 22.9 150 x 100 x 5.0 18.70
150 x 100 x 6.0 22.30 150 x 100 x 8.0 29.10
150 x 100 x 10.0 35.70 160 x 80 x 5.0 18.00
160 x 80 x 6.0 21.30 160 x 80 x 8.0 27.90
200 x 100 x 5.0 22.70 200 x 100 x 6.0 27.00
200 x 100 x 8.0 35.4 200 x 100 x 10.0 43.60
250 x 150 x 5.0 30.5 250 x 150 x 6.0 38.2
250 x 150 x 8.0 48.0 250 x 150 x 10 59.3
300 x 200 x 6.0 48.10 300 x 200 x 8.0 60.50
300 x 200 x 10.0 75.00 400 x 200 x 8.0 73.10
400 x 200 x 10.0 90.70 400 x 200 x 16 142.00

RHS Thickness Sec Area Unit Moment of Inertia Radius of Gyration Elastic Modulus Torsional Constants Outer
Surface Area
mm mm cm2 kg/m cm4 cm4 cm cm cm3 cm3 cm4 cm3 m2
50x25 2 2.74 2.15 8.38 2.81 1.75 1.01 3.35 2.25 6.97 3.79 0.142
2.6 3.46 2.71 10.16 3.36 1.71 0.99 4.06 2.69 8.27 4.53 0.137
3.2 4.13 3.24 11.63 3.8 1.68 0.96 4.35 3.04 9.52 5.12 0.134
4 4.95 3.88 13.13 4.23 1.63 0.92 5.25 3.38 10.86 5.69 0.129
60x40 2.26 4.76 3.73 22.76 12.09 2.19 1.59 7.59 6.05 25.59 9.83 0.187
2.9 5.25 4.12 24.74 13.11 2.17 1.58 8.25 6.56 28.02 10.66 0.185
3.6 6.35 4.98 28.9 15.23 2.13 1.55 9.63 7.62 33.3 12.41 0.181
4.5 7.67 6.02 33.31 17.44 2.08 1.51 11.1 8.72 39.34 14.29 0.177
60x33 2.6 4.7 3.69 25.15 8.43 2.31 1.34 7.62 5.11 20.75 8.71 0.185
2.9 5.19 4.07 27.33 9.12 2.29 1.33 8.28 5.53 22.65 9.43 0.183
3.6 6.28 4.93 31.87 10.52 2.25 1.29 9.66 6.37 26.71 10.9 0.179
4.5 7.58 5.95 36.64 11.93 2.20 1.25 11.1 7.23 31.21 12.43 0.175
80x40 2.6 5.8 4.55 46.58 15.74 2.84 1.65 11.65 7.87 38.5 13.46 0.227
2.9 6.41 5.03 50.87 17.11 2.82 1.63 12.72 8.56 42.23 14.66 0.225
3.2 7.01 5.5 54.94 18.41 2.8 1.62 13.74 9.21 45.83 15.78 0.224
4 8.55 6.71 64.79 21.49 2.75 1.59 16.2 10.74 54.77 18.49 0.219
4.8 10.01 7.85 73.22 24.03 2.71 1.55 18.3 12.02 62.81 20.79 0.215
96x48 3.2 8.54 6.71 98.61 33.28 3.4 1.97 20.54 13.87 82.13 23.82 0.272
4 10.47 8.22 117.54 39.32 3.35 1.94 24.49 16.38 99.11 28.24 0.267
4.8 12.31 9.66 134.35 44.55 3.3 1.9 27.99 18.56 114.8 32.14 0.263
122x61 3.6 12.32 9.67 232.61 78.83 4.34 2.53 38.13 25.85 193.91 44.5 0.347
4.5 15.14 11.88 278.94 93.78 4.29 2.49 45.73 30.75 235.39 53.13 0.343
5.4 17.85 14.01 320.83 107.03 4.24 2.45 52.6 35.09 347.29 60.89 0.338
120x60 3.2 10.85 8.51 199.88 67.95 4.29 2.5 33.31 22.65 165.83 28.95 0.344
3.6 12.11 9.5 220.75 74.77 4.27 2.48 36.79 24.92 184.1 42.91 0.341
4.5 14.87 11.67 264.52 88.88 4.22 2.44 44.09 29.63 223.34 51.19 0.337
145x82 4.8 20.28 15.92 555.16 228.50 5.23 3.36 76.57 55.73 534.27 94.45 0.429
5.4 22.6 17.74 610.85 250.59 5.2 3.33 84.26 61.12 592.7 103.81 0.426

Cold Formed IS 4923 YST 210 RHS Pipes Dimension

Size (inches) Wall Thickness (inches) Outside Diameter (inches)
Inside Diameter (inches)
1/2 x 1/2 0.065 0.84 0.61
3/4 x 3/4 0.065 1.05 0.82
1 x 1 0.065 1.315 1.049
1 x 1 0.083 1.315 1.035
1 x 1 0.109 1.315 0.957
1-1/4 x 1-1/4 0.065 1.66 1.38
1-1/4 x 1-1/4 0.083 1.66 1.334
1-1/4 x 1-1/4 0.109 1.66 1.278
1-1/2 x 1-1/2 0.065 1.9 1.61
1-1/2 x 1-1/2 0.083 1.9 1.584
1-1/2 x 1-1/2 0.109 1.9 1.5
2 x 2 0.065 2.375 2.245
2 x 2 0.083 2.375 2.307
2 x 2 0.109 2.375 2.245
2-1/2 x 2-1/2 0.083 2.875 2.709
2-1/2 x 2-1/2 0.109 2.875 2.625
3 x 3 0.083 3.5 3.334
3 x 3 0.109 3.5 3.26
3-1/2 x 3-1/2 0.109 4 3.834
4 x 4 0.083 4.5 4.334
4 x 4 0.109 4.5 4.26
4 x 4 0.188 4.5 4.124
5 x 5 0.188 5 4.624
6 x 6 0.188 6 5.624

Cold Formed IS 4923 YST 210 Dimensional Tolerances

Dimensions less than 100mm +/- 1.0% with a minimum of +/- 0.5mm
Dimensions 100mm up to 200mm +/- 0.8%
Dimensions over 200mm +/- 0.6%
Wall thickness (excluding weld area) +/-10% for specified thickness of 5mm or below and +/-0.5mm for thickness greater than 5mm
Concavity/Convexity Max. 0.8% with a minimum of 0.5mm
Squareness of sides 90 Degree +/- 1 Degree
Externalcorner radius 6mm thick or below: 1.6 to 2.4 x wall thickness
Straightness 0.15% of total length
Twist 2mm + ( 0.5mm per mtr ) max

IS 4923 YST 210

Buy High Quality Cold Formed IS 4923 YST 210 Square Rectangular Section

Request the latest IS 4923 YST 210 Rectangular SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

ASTM A500 IS 4923 YST 210 RHS Available Types

IS 4923 YST 210 Seamless Cold Formed Rectangular Hollow Section Tubing Cold Formed IS 4923 YST 210 Carbon Steel Tubes
IS 4923 Grade YST 210 Cold Formed ERW Rectangular Hollow Section Cold Formed IS 4923 YST 210 MS RHS Pipe
Cold formed IS 4923 YST 210 structural hollow sections (CFRHS) YST 210 Cold Formed Rectangular Hollow Section
IS 4923 YST 210 Cold finished Rectangular hollow section IS 4923 Cold Formed YST 210 RHS
IS 4923 YST 210 Cold Formed RHS Tube IS4923 YST210 Steel Cold Formed Rectangular Section
Cold formed IS 4923 YST 210 welded structural hollow sections IS 4923 YST 210 Cold Formed RHS Corner Radius
IS 4923 YST 210 Rectangular Hollow Cold Formed Section IS 4923 YST 210 Carbon Steel Seamless RHS Tube
IS 4923 Cold Formed YST 210 MS RHS Tube YST 210 Welded RHS Tubes
Cold Formed IS 4923 YST 210 CS Hollow Rectangular Tube IS 4923 YST 210 Mild Steel Pipes and tubes
IS 4923 YST 210 Cold Formed Rectangular Hollow Section YST 210 Cold Formed Rectangular Welded box sections
IS 4923 YST210 Cold Formed CS Rectangular Hollow Section IS 4923 YST 210 Cold Rolled Rectangular hollow sections
Cold Formed Hollow Section IS 4923 YST 210 Cold Formed YST 210 Rectangular Hollow Section
IS 4923 YST 210 Hollow Section Rectangular IS 4923 YST 210 Cold Formed Seamless Pipe
YST 210 Cold Formed Seamless RHS Tube IS 4923 YST 210 Cold Formed Welded Rectangular Hollow Section
IS 4923 YST 210 Cold Formed Rectangular steel box section Cold Formed IS 4923 YST 210 Seamless RHS Pipe
YST 210 Rectangular Pipe Weight Chart India IS 4923 YST 210 Cold Formed Rectangular Structural Section
Cold Formed IS 4923 YST 210 Carbon Steel Rectangular Hollow Section YST 210 Cold Formed Rectangular Box Sections
IS 4923 YST 210 RHS Section IS 4923 YST 210 Cold Rolled Steel Hollow Section
Cold Formed YST 210 Rectangular Hollow Section IS 4923 YST 210 MS Rectangular Hollow Section Pipe
YST 210 Rectangular Hollow Section YST 210 Seamless Rectangular Hollow Section
Cheap Cold Formed IS-4923 YST210 ERW RHS Pipe Cold Formed IS 4923 YST-210 Hollow Section Rectangular Pipe
YST 210 Welded Rectangular Tubing IS 4923 YST 210 Cold Formed Welded Tube
Welded Cold Formed IS-4923 YST210 RHS Pipe IS 4923 YST 210 Cold formed hollow sections with Rectangular section
IS 4923 YST 210 Cold Formed Rectangular Hollow Structural Sections Cold Formed IS 4923 YST 210 Rectangular hollow section Tubes
YST 210 Electric Resistance Welded Cold Formed RHS Tubes IS 4923 YST 210 Rectangular Hollow Section Corner Radius

Cold Formed IS 4923 YST 210 SHS Manufacturing Process



IS 4923 YST 210 Cold Formed Rectangular Hollow Sections – Application Industrty

  • Petrochemical Industry
  • Aerospace Industry
  • Refineries
  • Construcion
  • Chemical Industry
  • Railway Industry
  • Oil & Gas Industry
  • Ship Building
