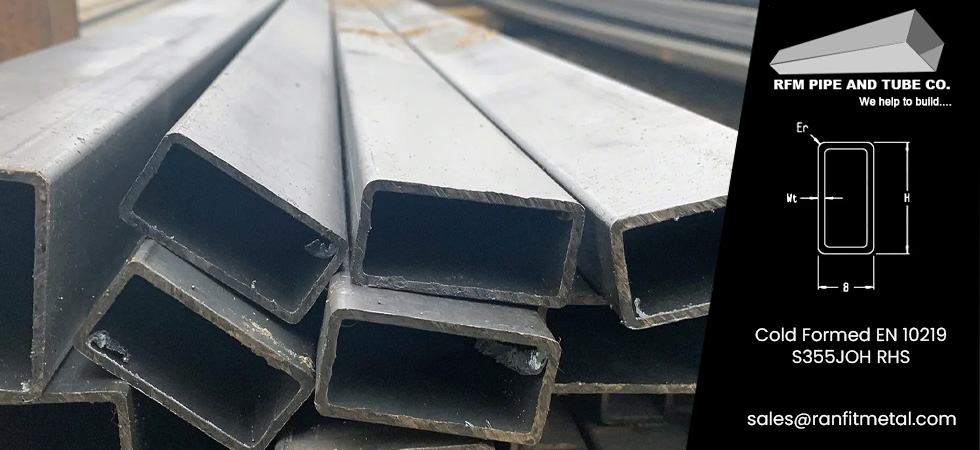

Cold Formed EN 10219 S355JOH Rectangular Hollow Section

S355JOH Carbon Pipe

Cold Formed EN 10219 S355JOH Rectangular Hollow Section Manufacturer, SS S355JOH Hollow Section Supplier in Mumbai, India.


Cold Formed EN 10219 S355JOH ERW RHS Tubing, EN 10219 S355JOH Cold Formed Welded Rectangular Hollow Section, S355JOH Cold Formed Rectangular Pipe, Gr S355JOH MS Cold Formed Rectangular Section, EN 10219 S355JOH CS Cold Formed Rectangular Hollow Section, Cold Formed EN 10219 S355JOH Seamless Rectangular Hollow Section, EN 10219 S355JOH Cold Formed Rectangular Hollow Section Welded Tube, S355JOH Cold Formed Rectangular Tube, S355JOH Cold Formed RHS, Stockist in Mumbai, India.


Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Cold Formed EN 10219 S355JOH Rectangular Hollow Section. The EN 10219 S355JOH is a cold-formed structural hollow section, specifically designed for construction and engineering applications.

The hollow construction of S355JOH Rectangular Hollow Sections leads to increased overall stability, which is essential for dynamic loads and long spans in architectural applications. Cold Formed EN 10219 S355JOH Seamless RHS is higher strength-to-weight ratio when compared to traditional solid sections, making it a more efficient choice for building structures. Its unique properties encourage innovation while ensuring safety, making it a preferred choice for engineers and architects alike.

Among these, the EN 10219 S355JOH rectangular hollow section stands out as a preferred choice in a variety of applications, from structural frameworks to architectural enhancements. In sum, the cold formed EN 10219 S355JOH rectangular hollow section is a remarkable engineering material, merging strength, flexibility, and style in a range of influential applications.


Cold Formed S355JOH CS RHS Tube, S355JOH CF RHS, Cold Formed S355JOH RHS Seamless Pipes, S355JOH CS Cold Formed Rectangular Pipes Distributors, , EN 10219 Cold Formed S355JOH ERW RHS Pipes Dealers in India, EN 10219 S355JOH Seamless Cold Formed Rectangular Hollow Section Tubing, BS EN 10219 S355JOH Cold Formed RHS Tubes, Cold Formed S355JOH Mild Steel Rectangular Hollow Section Exporters, Cold Formed EN 10219 S355JOH Rectangular Box Sections, Cold Formed EN 10219 S355JOH Rectangular Box Sections, Cold Formed EN 10219 S355JOH RHS Pipe Supplier in India.


Key Standards

EN 10219: This standard specifies the technical delivery conditions for cold-formed welded structural hollow sections of non-alloy and fine-grain structural steels.

S355: Structural steel with a minimum yield strength of 355 MPa.

JOH: Indicates impact properties at 0°C (J = impact energy, O = tested at 0°C, H = hollow section).


Cold Formed EN 10219 S355JOH Rectangular Hollow Section Specifications

Standard No BS EN 10219 - Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels
Grade S355JOH
RHS (Rectangular Hollow Sections) Sizes 10mm x 15mm / 150mmx50mm / 300mmx400mm / 600mmx550mm
Outside Diameter 21.3—457.2mm
Wall Thickness 0.5mm - 25mm
Length 6000-14000 mm
Straightness Minimum 1 : 200th of any length measured along the centre line (mill straightened condition) unless otherwise specifically arranged.
Tolerance Thickness (All sizes +/- 10%)
Surface Protection Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
Packing In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark

EN 10219 S355JOH Rectangular Hollow Pipes and Tubing Material Equivalent

Steel Grade C Si Mn P S N Carbon Equivalent(CEV)
S355J0H 0.22 0.55 1.60 0.035 0.035 0.009 0.45

EN 10219 S355JOH Rectangular Hollow Pipes & Tubes Mechanical Strength

Grade Min. Yield Strength Reh(Mpa) Tensile Strength Rm (MPa) Elongation % Min. Min. Impact Energy(J)
Thk≤ 16 mm Thk>16 ≤ 40 mm Thk<3 mm Thk≥3 mm -20°C 0°C 20°C
S355J0H 355 345 510-680 470-630 20 27 - -

Types of EN 10219 S355JOH Hollow Section Rectangular

S355JOH EN 10219 Rectangular Hollow Section

S355JOH EN 10219 Rectangular Hollow Pipes

EN 10219 S355JOH Rectangular Hollow Tubing

S355JOH Structural Rectangular Hollow Sections

EN 10219 S355JOH Welded Rectangular Hollow Pipes

cold formed S355JOH Rectangular SHS Tube

Cold Formed EN 10219 S355JOH Rectangular Hollow Section Size Chart

Size mm kg/m Size mm kg/m
40 x 20 x 2.0 1.68 40 x 20 x 2.5 2.03
40 x 20 x 3.0 2.36 40 x 25 x 1.5 1.44
40 x 25 x 2.0 1.89 40 x 25 x 2.5 2.23
50 x 25 x 2.0 2.21 50 x 25 x 2.5 2.72
50 x 25 x 3.0 3.22 50 x 30 x 2.5 2.92
50 x 30 x 3.0 3.45 50 x 30 x 4.0 4.46
50 x 40 x 3.0 3.77 60 x 40 x 2.0 2.93
60 x 40 x 2.5 3.71 60 x 40 x 3.0 4.39
60 x 40 x 4.0 5.72 70 x 50 x 2 3.56
70 x 50 x 2.5 4.39 70 x 50 x 3.0 5.19
70 x 50 x 4.0 6.71 80 x 40 x 2.5 4.26
80 x 40 x 3.0 5.34 80 x 40 x 4.0 6.97
80 x 40 x 5.0 8.54 80 x 50 x 3.0 5.66
80 x 50 x 4.0 7.34 90 x 50 x 3.0 6.28
90 x 50 x 3.6 7.46 90 x 50 x 5.0 10.11
100 x 50 x 2.5 5.63 100 x 50 x 3.0 6.75
100 x 50 x 4.0 8.86 100 x 50 x 5.0 10.90
100 x 60 x 3.0 7.22 100 x 60 x 3.6 8.59
100 x 60 x 5.0 11.70 120 x 80 x 2.5 7.65
120 x 80 x 3.0 9.03 120 x 80 x 4.0 12.00
120 x 80 x 5.0 14.80 120 x 80 x 6.0 17.60
120 x 80 x 8.0 22.9 150 x 100 x 5.0 18.70
150 x 100 x 6.0 22.30 150 x 100 x 8.0 29.10
150 x 100 x 10.0 35.70 160 x 80 x 5.0 18.00
160 x 80 x 6.0 21.30 160 x 80 x 8.0 27.90
200 x 100 x 5.0 22.70 200 x 100 x 6.0 27.00
200 x 100 x 8.0 35.4 200 x 100 x 10.0 43.60
250 x 150 x 5.0 30.5 250 x 150 x 6.0 38.2
250 x 150 x 8.0 48.0 250 x 150 x 10 59.3
300 x 200 x 6.0 48.10 300 x 200 x 8.0 60.50
300 x 200 x 10.0 75.00 400 x 200 x 8.0 73.10
400 x 200 x 10.0 90.70 400 x 200 x 16 142.00

RHS Thickness Sec Area Unit Moment of Inertia Radius of Gyration Elastic Modulus Torsional Constants Outer
Surface Area
mm mm cm2 kg/m cm4 cm4 cm cm cm3 cm3 cm4 cm3 m2
50x25 2 2.74 2.15 8.38 2.81 1.75 1.01 3.35 2.25 6.97 3.79 0.142
2.6 3.46 2.71 10.16 3.36 1.71 0.99 4.06 2.69 8.27 4.53 0.137
3.2 4.13 3.24 11.63 3.8 1.68 0.96 4.35 3.04 9.52 5.12 0.134
4 4.95 3.88 13.13 4.23 1.63 0.92 5.25 3.38 10.86 5.69 0.129
60x40 2.26 4.76 3.73 22.76 12.09 2.19 1.59 7.59 6.05 25.59 9.83 0.187
2.9 5.25 4.12 24.74 13.11 2.17 1.58 8.25 6.56 28.02 10.66 0.185
3.6 6.35 4.98 28.9 15.23 2.13 1.55 9.63 7.62 33.3 12.41 0.181
4.5 7.67 6.02 33.31 17.44 2.08 1.51 11.1 8.72 39.34 14.29 0.177
60x33 2.6 4.7 3.69 25.15 8.43 2.31 1.34 7.62 5.11 20.75 8.71 0.185
2.9 5.19 4.07 27.33 9.12 2.29 1.33 8.28 5.53 22.65 9.43 0.183
3.6 6.28 4.93 31.87 10.52 2.25 1.29 9.66 6.37 26.71 10.9 0.179
4.5 7.58 5.95 36.64 11.93 2.20 1.25 11.1 7.23 31.21 12.43 0.175
80x40 2.6 5.8 4.55 46.58 15.74 2.84 1.65 11.65 7.87 38.5 13.46 0.227
2.9 6.41 5.03 50.87 17.11 2.82 1.63 12.72 8.56 42.23 14.66 0.225
3.2 7.01 5.5 54.94 18.41 2.8 1.62 13.74 9.21 45.83 15.78 0.224
4 8.55 6.71 64.79 21.49 2.75 1.59 16.2 10.74 54.77 18.49 0.219
4.8 10.01 7.85 73.22 24.03 2.71 1.55 18.3 12.02 62.81 20.79 0.215
96x48 3.2 8.54 6.71 98.61 33.28 3.4 1.97 20.54 13.87 82.13 23.82 0.272
4 10.47 8.22 117.54 39.32 3.35 1.94 24.49 16.38 99.11 28.24 0.267
4.8 12.31 9.66 134.35 44.55 3.3 1.9 27.99 18.56 114.8 32.14 0.263
122x61 3.6 12.32 9.67 232.61 78.83 4.34 2.53 38.13 25.85 193.91 44.5 0.347
4.5 15.14 11.88 278.94 93.78 4.29 2.49 45.73 30.75 235.39 53.13 0.343
5.4 17.85 14.01 320.83 107.03 4.24 2.45 52.6 35.09 347.29 60.89 0.338
120x60 3.2 10.85 8.51 199.88 67.95 4.29 2.5 33.31 22.65 165.83 28.95 0.344
3.6 12.11 9.5 220.75 74.77 4.27 2.48 36.79 24.92 184.1 42.91 0.341
4.5 14.87 11.67 264.52 88.88 4.22 2.44 44.09 29.63 223.34 51.19 0.337
145x82 4.8 20.28 15.92 555.16 228.50 5.23 3.36 76.57 55.73 534.27 94.45 0.429
5.4 22.6 17.74 610.85 250.59 5.2 3.33 84.26 61.12 592.7 103.81 0.426

EN 10219 S355JOH RHS Dimensional Tolerances

Dimensions less than 100mm +/- 1.0% with a minimum of +/- 0.5mm
Dimensions 100mm up to 200mm +/- 0.8%
Dimensions over 200mm +/- 0.6%
Wall thickness (excluding weld area) +/-10% for specified thickness of 5mm or below and +/-0.5mm for thickness greater than 5mm
Concavity/Convexity Max. 0.8% with a minimum of 0.5mm
Squareness of sides 90 Degree +/- 1 Degree
Externalcorner radius 6mm thick or below: 1.6 to 2.4 x wall thickness
Straightness 0.15% of total length
Twist 2mm + ( 0.5mm per mtr ) max

Cold Formed EN 10219 S355JOH SHS

Buy High Quality Cold Formed EN 10219 S355JOH Square Rectangular Section

Request the latest EN 10219 S355JOH Rectangular SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

EN 10219 S355JOH SHS Available Types

S355JOH Cold Formed CS Rectangular Hollow Section Supplier Grade S355JOH Welded Rectangular Tubing
EN 10219 Grade S355JOH Cold Formed Rectangular Box Sections EN 10219 S355JOH Seamless Rectangular Hollow Section Stockist
Cold Formed BS EN 10219 S355JOH Hollow Rectangular Tube, Welded Cold Formed EN 10219 S355JOH RHS Pipes
EN 10219 S355JOH Cold Formed RHS Tube Stockist EN 10219 S355JOH Rectangular Structural Steel Piping
High Temperature BS EN 10219 S355JOH Pipes EN 10219 S355JOH MS Rectangular Hollow Section Pipe
S355JOH Cold Rolled Rectangular Hollow Sections Supplier EN 10219 S355JOH Cold Formed ERW RHS Manufacturer
EN 10219 Grade S355JOH Cold Formed Rectangular Seamless Pipe EN 10219 S355JOH Rectangular Cold Formed ERW Pipes
EN 10219 S355JOH Carbon Steel Welded RHS MAnufacturer EN 10219 Cold Formed S355JOH MS RHS Tube
EN 10219 S355JOH Seamless Cold Formed RHS Tubes EN 10219 S355JOH Rectangular Hollow Structural Sections
EN 10219 Schedule 40 S355JOH Seamless Pipes Cold formed EN 10219 Grade S355JOH structural CFRHS

Cold Formed S355JOH SHS Manufacturing Process



EN 10219 S355JOH Cold Formed Rectangular Hollow Sections – Application Industrty

  • Petrochemical Industry
  • Aerospace Industry
  • Refineries
  • Construcion
  • Chemical Industry
  • Railway Industry
  • Oil & Gas Industry
  • Ship Building
