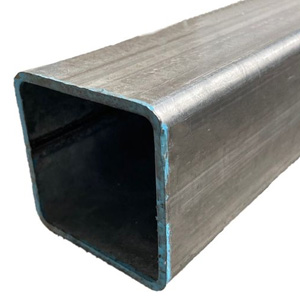

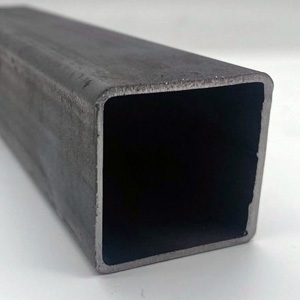

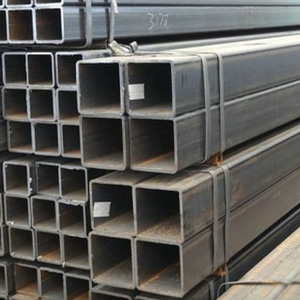

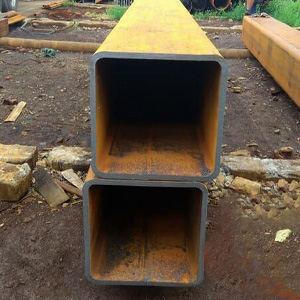

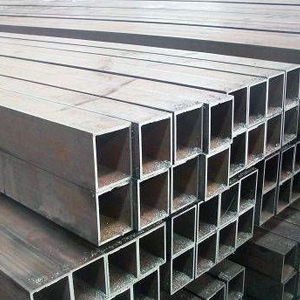

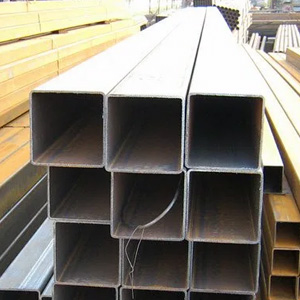

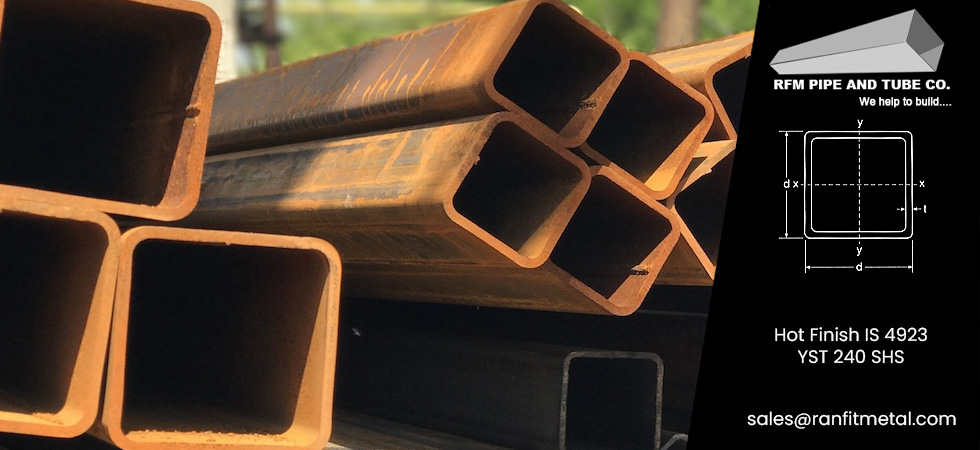

IS 4923 YST 240 Hot Finish Square Hollow Section
Hot Finish IS 4923 YST 240 Square Hollow Section
HOT FINISH IS 4923 YST 240 SQUARE HOLLOW SECTION MANUFACTURER & SUPPLIER IN MUMBAI, INDIA.
IS 4923 YST 240 MS Hot Finish Square Section, Hot Finish IS 4923 YST 240 ERW SHS Tubing, IS 4923 YST 240 Hot Finish Welded Square Hollow Section, IS 4923 Hot Finish YST 240 SHS Seamless Pipes, IS 4923 YST 240 Hot Rolled Square Hollow Section Welded Tube, IS 4923 YST 240 Hot Finish Square Tube, IS4923 YST240 Hot Finished SHS, Hot Finish YST 240 CS SHS Tube, IS-4923 YST-240 CS Hot Finish Square Hollow Section Supplier & Stockist in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of IS 4923 YST 240 Hot Finish Square Hollow Section. Hot Finished IS4923 YST 240 SHS commonly used in structural applications due to their uniform strength and aesthetic appeal. The hot finish process involves heating the IS 4923 YST 240 MS Hot Finish Square Section to a high temperature, typically around 800°C (1472°F), to make it more malleable and easier to form into the desired shape. The dimensions of the IS 4923 YST 240 Hot Finish Welded Square Tube will vary based on the application, with standard sizes available (e.g., 50x50 mm, 100x100 mm, etc.) and wall thickness options depending on the required strength and load-bearing capacity. The Hot Finish IS 4923 YST 240 Seamless Square Hollow Section is a type of hollow steel section that is manufactured using a hot finishing process. This process involves heating the steel to high temperatures, which helps improve its overall quality and strength. The Hot Finish IS 4923 YST 240 Structural Square Hollow Section offers exceptional strength, making it suitable for load-bearing structures that require high durability. The Hot Finish IS 4923 YST 240 SHS is a versatile and reliable product that offers exceptional performance and durability in a wide range of applications. Its high strength, excellent corrosion resistance, and good weldability make it an ideal choice for engineers, architects, and manufacturers looking for a reliable and efficient solution.
IS-4923 YST- 240 Hot Finish SHS Tubes, IS 4923 YST 240 Carbon Steel Hot Finish Square Hollow Section Suppliers in Mumbai, YST 240 CS Hot Finished Square Pipes Distributors, Hot Rolled IS 4923 YST 240 Mild Steel Square Hollow Section Exporters, Hot Finish IS4923 YST240 Square Box Sections, IS-4923 YST-240 MS Hot Finished Square Tube Stockists, Hot Finish IS4923 YST240 SHS Tubing Exporters in Mumbai, India.
Key Standards
IS4923: Indian Standard 4923
YST 240 The "YST" stands for "Yield Strength of Tubes," with 240 indicating a minimum yield strength of 240 MPa.
Hot Finish IS 4923 YST 240 Square Hollow Section Specifications
| Standard No | IS 4923 |
| Grade | YST 240 (Hot Finish) |
| SHS (Square Hollow Sections) Sizes | 20*20mm-400*400mm |
| Outside Diameter | 21.3—457.2mm |
| Wall Thickness | 1.8—-14.27mm |
| Length | 6000 – 12 000/18 000 mm |
| Straightness | Min 1 = 200&of any lengths measured along the centre line unless otherwise specifically managed |
| Twist Tolerance | Maximum 2 mm ± 0.05 mm/m length-measured relative vertical shift of any adjacent corner of the section, measured by keeping one side on flat surface |
| End Finish | mill-cut finish without further machining, Plain ended-Mechanically sheared |
| Surface Finish | Black without any surface treatment of oiling /varnishing. |
| Weldability | Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating. |
IS 4923 YST 240 Hot Finish Square Hollow Section Chemical Composition
| Specification | Steel Grade | C | Si | Mn | P | S |
| IS 4923 | YST 310 | 0.12% max. | 0.03% to 0.08% | 0.50% max. | 0.05% max. | 0.05% max. |
Hot Finish IS 4923 YST 240 Square Hollow Pipes & Tubes Mechanical Strength
| Grade | Min. Tensile Strength Mpa | Min. Yield Stress Mpa | Min. Elongation Percent for size | |
| 25.4 and under | over25.4 | |||
| YST 240 | 330 | 240 | 12 | 20 |
Types of EN 10219 S355J2H Hollow Section Square
Hot Finish IS 4923 YST 240 Square Hollow Pipes
Hot Finish IS 4923 YST 240 Square Hollow Tubing
Hot Finish IS 4923 YST 240 Structural Square Hollow Sections
Hot Finish IS 4923 YST 240 Welded Square Hollow Pipes
Hot Finish IS 4923 YST 240 SHS Tube
Hot Finish IS 4923 YST 240 Square Hollow Section Size Chart
| Size mm | kg/m | Size mm | kg/m |
|---|---|---|---|
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
Hot Finish IS 4923 YST 240 SHS Dimensional Tolerances
| Characteristics | Tolerances | |
|---|---|---|
| Outside dimensions | (H,B2.5in.) | ±0.020in. (0.5mm) |
| H : Longest side | (2.5in.H, B3.5in.) | ±0.025in. (0.6mm) |
| B : Shortest side | (3.5in.H, B5.5in.) | ±0.030in. (0.8mm) |
| & | (5.5in.H, B) | 1% in dimensions |
| Wall thickness(T) | ±10% in thickness | & |
| Squareness of sides | 90±2 | & |
| External corner radius(R) | R3T | & |
| Twist | (H1.5in.) | ±0.050in./3feet length (1.3mm/1m length) |
| & | (1.5in.H2.5in.) | ±0.062in./3feet length (1.6mm/1m length) |
| & | (2.5in.H4.0in.) | ±0.075in./3feet length (1.9mm/1m length) |
| & | (4.0in.H6.0in.) | ±0.087in./3feet length (2.2mm/1m length) |
| & | (6.0in.H8.0in.) | ±0.100in./3feet length (2.5mm/1m length) |
| & | (8.0in.H) | ±0.112in./3feet length (2.8mm/1m length) |
| Straightness | 1/8 in./1 feet length (10.4mm/1m length) | |
| Length(L) | 0, +50mm (Private standard tolerance) | |
| NOTE 1) The tolerance of outside dimensions includes an allowance for convexity or concavity. 2) Outside dimensions are measured across the flats at positions at least 2in. from the end of the HSS. |
||
IS 4923 YST 240 Hot Finish Square Hollow Section Thickness
| IS 4923 SHS Types | Out diameter | Wall thickness | Length |
|---|---|---|---|
| IS 4923 YST 240 Seamless Square Pipe | 1/2 To 60 | Schedule 5/40/10/160/80 | Custom |
| IS 4923 YST 240 ERW Square Pipe | 1/2 to 24 | As per requirement | Custom |
| IS 4923 YST 240 Welded Square Pipe | 1/2 To 24 | As per requirement | Custom |
| IS 4923 YST 240 SAW Square Pipe | 16 To 100 | As per requirement | Custom |
IS 4923 YST 240 Welded Square Section Standard length Tolerances
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
IS 4923 YST 240 Square Section Pressure Chart
| Nominal pipe size in Mm | Pipes Size in inch | Outer Diameter in MM | Sch 20 | Sch 30 | Sch STD | Sch 40 | Sch 60 | Sch EXTRA | Sch XS | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 240 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | & | & | 22.2 | 294 | 12.7 | 171 |
Buy High Quality Hot Finish IS 4923 YST 240 Square Hollow Section
Request the latest IS 4923 YST 240 Hot Rolled SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
Hot Finish IS 4923 YST 240 SHS Available Types
| IS 4923 YST 240 ERW Hot Finish SHS Tubes | IS 4923 YST 240 Hot Rolled Square Hollow Structural Sections |
| Schedule 40 IS 4923 YST 240 Seamless Square Pipes | Hot Finish IS 4923 YST 240 Structural Hollow Sections Exporter |
| IS 4923 YST 240 Hot Finish Seamless Pipe | IS 4923 YST 240 Hot Finish ERW Pipes |
| IS 4923 YST 240 Hot Finish Square Box Sections | IS 4923 YST 240 Seamless Square Hollow Section Stockist |
| High Temperature IS 4923 YST 240 SHS Pipes | IS 4923 YST 240 Structural Steel Seamless Square Pipes |
| IS 4923 YST 240 Seamless and Welded Black Square Pipes | IS 4923 YST 240 Hot Formed steel Square Hollow Pipe |
| SCH 20 IS 4923 YST 240 Boiler Square Seamless Pipes | Hot Dipped Galvanized YST 240 Square Pipes |
| IS 4923 YST 240 Hot Rolled Square Hollow Sections Supplier | IS 4923 YST 240 Hot Finish ERW SHS Manufacturer |
| IS 4923 YST 240 Hot Finish SHS Supplier in Mumbai | IS 4923 YST 240 HFSHS Tubing |
| Hot Finish IS 4923 YST 240 CS Hollow Square Tube | Welded Hot Finish IS 4923 YST 240 SHS Pipe |
| IS 4923 YST 240 Hot Finish SHS Tube | IS 4923 YST 240 Structural Steel Piping |
| Hot Finish BS IS 4923 YST 240 CS Hollow Square Tube | IS 4923 YST 240 MS Square Hollow Section Pipe |
| Hot Finish IS 4923 YST 240 Square Hollow Pipes | IS 4923 YST 240 Hot Finished Square Box Sections in Mumbai |
| Hot Finish IS 4923 YST 240 Welded Pipes | Hot Finish IS 4923 YST 240 Piping |
| Hot Rolled IS 4923 YST 240 Carbon Steel Welded SHS | IS 4923 YST 240 Hot Finish MS SHS Tube |
IS 4923 YST 240 Hot Finish SHS Manufacturing Process
IS 4923 YST 240 Hot Finish Square Hollow Sections – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
