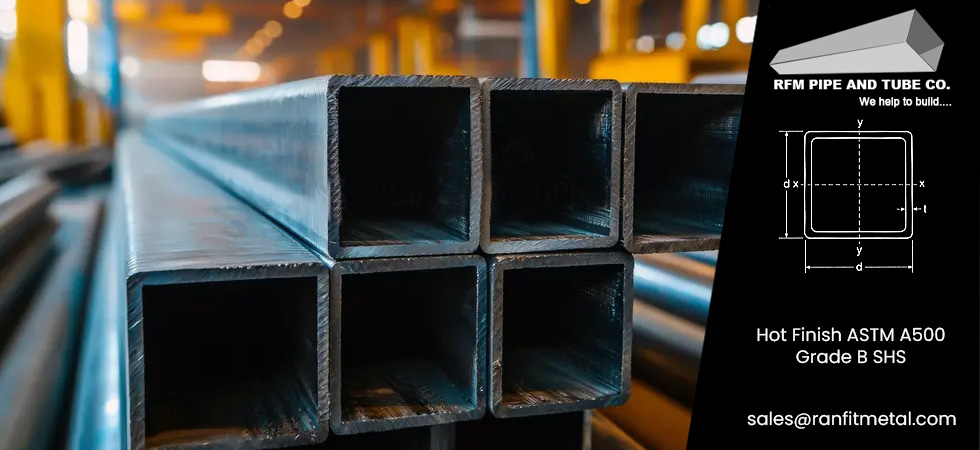

S355J2H Hot Finish EN 10210 Square Hollow Section
Hot Finish ASTM A500 Gr. B Square Hollow Section
HOT FINISH ASTM A500 GR. A SQUARE HOLLOW SECTION MANUFACTURER & SUPPLIER IN MUMBAI, INDIA.
ASTM A500 Grade A Hot Formed Welded Carbon Steel SHS Tubing, Hot Finish ASTM A500 Gr A SHS Seamless Pipes, Hot Finish ASTM A500 Gr A ERW SHS Tubing, ASTM A500 Gr A Hot Finish Welded Square Hollow Sections, Hot Rolled ASTM A500 Gr A Seamless Square Hollow Sections, ASTM A500 Gr. B Hot Finished Seamless Carbon Steel Square Tubing, ASTM A500 Gr A Hot Finish Square Tube, A500 Gr. B HF SHS, Hot Finish ASTM A500 Gr A CS SHS Tube, ASTM A500 Gr A Hot Finish Square Hollow Section Welded Tube in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Hot Finish ASTM A500 Gr. B Square Hollow Section. These Hot Finish A500 SHS is widely used in various industries due to its exceptional strength, durability, and versatility. The Hot Finish A500 Welded Square Hollow Piping is made from high-strength, low-alloy steel that is specifically designed to provide superior weldability, formability, and corrosion resistance. ASTM A500 Gr. B Hot Finish Seamless Square Hollow Section is high strength-to-weight ratio, which makes it an ideal choice for structural applications where weight reduction is crucial. All Hot Finish ASTM A500 Gr. B Structural Square Hollow Sections are supplied with a mill certificate, which guarantees that the product meets the specified chemical composition, mechanical properties, and dimensional tolerances. The Hot Finish ASTM A500 Gr. B SHS Pipes are widely used in various industries, including construction, automotive, manufacturing, and energy. Some of the common applications include Structural frameworks and supports, Columns and beams, Archways and door frames, Handrails and guardrails, Furniture and decorative features, Automotive parts and components, Industrial equipment and machinery etc.
Gr. B ASTM A500 MS Hot Finished Square Section, ASTM A500 Gr A Hot Finish Square Pipe, Hot Finish ASTM A500 Gr A Square Box Sections, Hot Rolled ASTM A500 Gr A SHS Pipe, ASME SA500 Gr A Hot Finished SHS Tubing, ASTM A500 Gr. B CS Hot Finish Square Pipes Distributors, ASTM A500 Grade A Hot Finish MS Square Tube Stockists in India, ASTM A500 Gr A Carbon Steel Square Hollow Section Suppliers, ASTM A500 Gr A Hot Finish Mild Steel Square Hollow Section Exporters, in Mumbai, India.
Key Standards
ASTM A500: is the most common specification in North America for Hollow Structural Sections (HSS).
Gr. B: Minimum yield strength of 33 ksi (227 MPa) and minimum tensile strength of 45 ksi (310 MPa).
Hot Finish ASTM A500 Gr. B Square Hollow Section Specifications
| Standard No | ASTM A500/ASME SA500 |
| Grade | Grade A |
| SHS (Square Hollow Sections) Sizes | 20*20mm-400*400mm |
| Outside Diameter | 21.3—457.2mm |
| Wall Thickness | 1.8—-14.27mm |
| Length | 6000 – 12 000/18 000 mm |
| Straightness | Min 1 = 200&of any lengths measured along the centre line unless otherwise specifically managed |
| Tolerance | max 2 ± 0.05 mm |
| End Finish | mill-cut finish without further machining, Plain ended-Mechanically sheared |
| Surface Finish | Black without any surface treatment of oiling /varnishing. |
| Weldability | Square Hollow Sections are weldable with standard M.S. Electrodes without any pre-heating. |
ASTM A500 Gr. B Hot Finish Square Hollow Section Chemical Composition
| ASTM A500 | C, max | P, max | S, max | Cu, min |
| Grade A | 0.26 | 0.035 | 0.035 | 0.20 |
Hot Finish ASTM A500 Gr. B Square Hollow Pipes & Tubes Mechanical Strength
| ASTM A500 | Tensile strength, min | Yield strength, min, | Elongation in 2 in. (50.8 mm) min, % |
| Grade A | 310 MPa, 45 000 psi | 269 MPa, 39 000 psi | 25 |
Hot Finish EN 10210 S355J2H Square Hollow Section Chemical Composition
| Steel Grade | % by mass maximum | |||||||
| Steel Name | Steel Number | C specified thickness (mm) | Si | Mn | P | S | N | |
| _40 | 40 _ 120 | |||||||
| S355J2H | 1.0039 | 0.17 | 0.20 | - | 1.40 | 0.040 | 0.040 | 0.009 |
Hot Finish EN 10210 S355J2H Square Hollow Pipes & Tubes Mechanical Strength
| Steel Grade | Minimum Yield Strength MPa | Tensile Strength MPa | Elongation | Impact Energy | |||
| Steel name | Steel number | thickness(mm) | thickness(mm) | % (min) | (KV J) (min) | ||
| ≤ 16 | 16 to ≤40 | ≤3 | 3 ≤40 | ≤40 mm | test temperature | ||
| S355J2H | 1.0039 | 235 | 225 | 360-510 | 360-510 | 24 | 20℃ |
Types of EN 10219 S355J2H Hollow Section Square
S355J2H Hot Finish EN 10210 Square Hollow Pipes
Hot Finish EN 10210 S355J2H Square Hollow Tubing
Hot Finish EN 10210 S355J2H Structural Square Hollow Sections
Hot Finish EN 10210 S355J2H Welded Square Hollow Pipes
Hot Finish EN 10210 S355J2H SHS Tube
Hot Finish ASTM A500 Gr. B Square Hollow Section Size Chart
| Size mm | kg/m | Size mm | kg/m |
|---|---|---|---|
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
Hot Finish ASTM A500 Gr. B SHS Dimensional Tolerances
| Characteristics | Tolerances | |
|---|---|---|
| Outside dimensions | (H,B2.5in.) | ±0.020in. (0.5mm) |
| H : Longest side | (2.5in.H, B3.5in.) | ±0.025in. (0.6mm) |
| B : Shortest side | (3.5in.H, B5.5in.) | ±0.030in. (0.8mm) |
| & | (5.5in.H, B) | 1% in dimensions |
| Wall thickness(T) | ±10% in thickness | & |
| Squareness of sides | 90±2 | & |
| External corner radius(R) | R3T | & |
| Twist | (H1.5in.) | ±0.050in./3feet length (1.3mm/1m length) |
| & | (1.5in.H2.5in.) | ±0.062in./3feet length (1.6mm/1m length) |
| & | (2.5in.H4.0in.) | ±0.075in./3feet length (1.9mm/1m length) |
| & | (4.0in.H6.0in.) | ±0.087in./3feet length (2.2mm/1m length) |
| & | (6.0in.H8.0in.) | ±0.100in./3feet length (2.5mm/1m length) |
| & | (8.0in.H) | ±0.112in./3feet length (2.8mm/1m length) |
| Straightness | 1/8 in./1 feet length (10.4mm/1m length) | |
| Length(L) | 0, +50mm (Private standard tolerance) | |
| NOTE 1) The tolerance of outside dimensions includes an allowance for convexity or concavity. 2) Outside dimensions are measured across the flats at positions at least 2in. from the end of the HSS. |
||
ASTM A500 Gr. B Hot Finish Square Hollow Section Pre galvanized specification
| 16*16 | 0.8-1.5 |
| 19*19 | 0.8-2.0 |
| 20*20 | 0.8-2.0 |
| 25*25 | 0.8-2.0 |
| 30*30 | 0.8-2.0 |
| 32*32 | 0.8-2.0 |
| 35*35 | 0.8-2.0 |
| 38*38 | 0.8-2.0 |
| 40*40 | 0.8-2.0 |
| 50*50 | 0.8-2.0 |
| 60*60 | 1.0-2.2 |
| 80*80 | 1.0-2.2 |
| 100*100 | 1.0-2.3 |
ASTM A500 Gr. B Welded Square Section Standard length Tolerances
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
|---|---|---|
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
Buy High Quality Hot Finish ASTM A500 Gr. B Square Hollow Section
Request the latest ASTM A500 Gr. B Hot Rolled SHS Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
Hot Finish ASTM A500 Gr. B SHS Available Types
| ASTM A500 Gr. B ERW Hot Finish SHS Tubes | ASTM A500 Gr. B Hot Rolled Square Hollow Structural Sections |
| Schedule 40 ASTM A500 Gr. B Seamless Pipes | Hot Finish ASTM A500 Gr. B Structural Hollow Sections Exporter |
| ASTM A500 Gr. B Hot Finish Seamless Pipe | ASTM A500 Gr. B Hot Finish ERW Pipes |
| ASTM A500 Gr. B Hot Finish Square Box Sections | ASTM A500 Gr. B Seamless Square Hollow Section Stockist |
| High Temperature ASTM A500 Gr. B Pipes | ASTM A500 Gr. B Structural Steel Seamless Pipes |
| ASME SA500 Gr. B Seamless and Welded Black Square Pipes | ASTM A500 Gr. B Hot Formed steel Square Hollow Pipe |
| SCHED 20 DIN ASTM A500 Gr. B Boiler Seamless Pipes | Hot Dipped Galvanized Gr. BSTM A500 Gr. B Square Pipes |
| ASTM A500 Gr. B Hot Rolled Square Hollow Sections Supplier | ASTM A500 Gr. B Hot Finish ERW SHS Manufacturer |
| ASTM A500 Gr. B Hot Finish SHS Supplier in Mumbai | ASTM A500 Gr. B HFSHS Tubing |
| Hot Finish ASTM A500 Gr. B CS Hollow Square Tube, | Welded Hot Finish ASTM A500 Gr. B SHS Pipe |
| ASTM A500 Gr. B Hot Finish SHS Tube | ASTM A500 Gr. B Structural Steel Piping |
| Hot Finish BS ASTM A500 Gr. B CS Hollow Square Tube | ASTM A500 Gr. B MS Square Hollow Section Pipe |
| Hot Finish ASTM A500 Gr. B Square Hollow Pipes | ASTM A500 Gr. B Hot Finished Square Box Sections in Mumbai |
| Hot Finish ASTM A500 Gr. B Welded Pipes | Hot Finish ASTM A500 Gr. B Piping |
| Hot Rolled ASTM A500 Gr. B Carbon Steel Welded SHS | ASTM A500 Gr. B Hot Finish MS SHS Tube |
ASTM A500 Gr. B Hot Finish SHS Manufacturing Process
ASTM A500 Gr. B Hot Finish Square Hollow Sections – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
