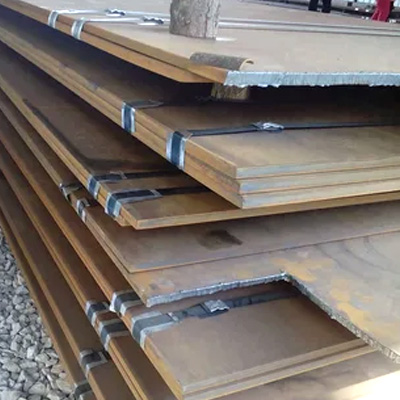

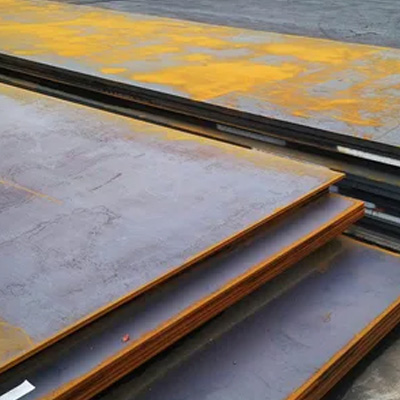

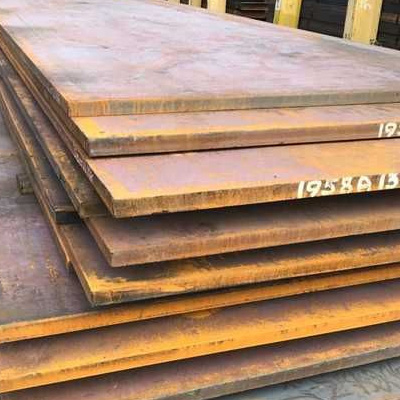

Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Gr. S275JR Structural Steel Plates. S275JR is a low-carbon, hot-rolled structural steel grade under the EN 10025-2 standard. It is commonly used in construction, engineering, and fabrication due to its good strength and weldability.

Among the various types of structural steel plates available, S275JR Stryuctural Steel Plates stand out for their exceptional strength, durability, and versatility. S275JR steel plates offer remarkable strength while lowering the structure's weight, which lowers the building's overall cost. Because S275JR steel plates don't corrode easily, they last longer and require less maintenance. For construction projects, IS 2062 E250 S275JR steel plates are a desirable option due to their minimal maintenance needs. S275JR steel plates are an economical choice for building projects since they are comparatively less expensive than other kinds of structural steel.

The "S" stands for "structural," while "275" represents the minimum yield strength in MPa. The "JR" indicates that the material has undergone a 27J impact test at 20°C.

In terms of certification, S275JR structural steel plates meet the requirements of various international standards, including EN 10025-2:2004, ASTM A36/A36M-08, and ASME SA-36/SA-36M-08. They are also certified by leading industry organizations, such as the American Society for Testing and Materials (ASTM) and the International Association of Classification Societies (IACS).

Key Features of S275JR Specification

Equivalent Grades: ASTM A36 / DIN ST37-2 / JIS SS400 / EN 10025-2 S275JR

International Standards: EN 10025-2 / ASTM A36 / DIN EN 10025-2 / JIS G3101

Gr. S275JR Structural Steel Plates Specifications

Gr. S275JR Structural Steel Plates Equivalent Grades

EN	DIN,WNr	JIS	AFNOR	IS	ISO	UNI	ASTM
S275JR	RSt37-2 RSt37-2	SM400A SS400	E24	IS226	E235B Fe360B	FE360B	A283 C

S275JR Structural Steel Plates Chemical Composition

<

Carbon (C)	0.17 – 0.20%
Manganese (Mn)	1.40%
Phosphorus (P)	0.035%
Sulfur (S)	0.035%
Silicon (Si)	0.55%
Copper (Cu)	0.55%

Structural Steel Gr. S275JR Plates Mechanical Properties

Property	Value
Yield Strength (MPa)	235 (for thickness ≤16mm)
Tensile Strength (MPa)	360 – 510
Elongation (%)	17 – 20%
Impact Test (Charpy V-Notch)	27J @ 20°C

Structural Steel Gr. S275JR Plates Physical Properties

Property	Value
Density	7.85 g/cm³
Melting Point	1420-1460°C
Specific Heat Capacity	500 J/kg°C
Thermal Conductivity	50 W/mK

Types of EN 10219 S355J2H Hollow Section Square

Structural Steel Grade S275JR Analogues

S275JR Steel Plate Weight Chart

Are you trying to find reliable S275JR Structural Plates manufacturers?

You're in the proper location!
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

Hot Finish EN 10210 S275JRH RHS Available Types

S275JR Structural Steel Manufacturing Process

S275JR Structural Steel Plates – Application Industrty
