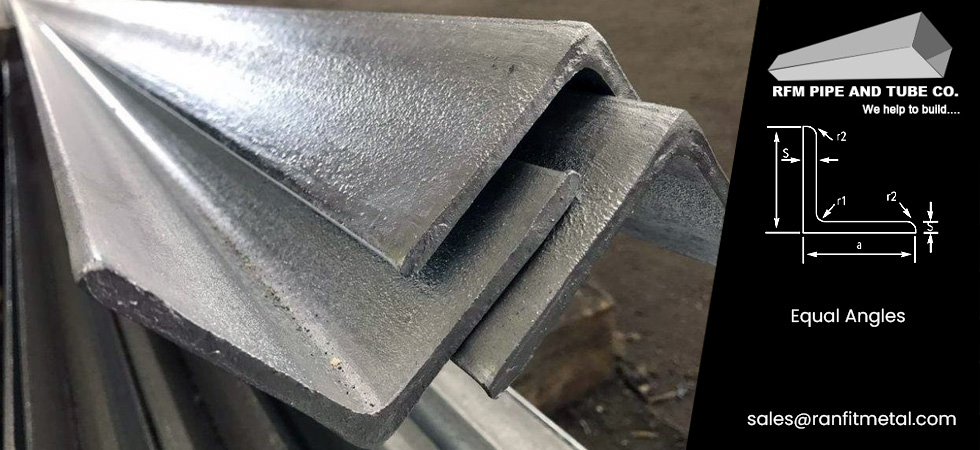

S355JR, S355JO, S355J2, S275JR Equal Angles/ Equal Leg Angles
Equal Angles
EQUAL ANGLES MANUFACTURER & SUPPLIER IN MUMBAI, INDIA.
Equal Angle Manufacturer, Equal Leg Angle Structural Steel Size, Properties of Structural Steel Equal Angles in UK, S355JR hot rolled equal angles, Structural Steel Equal Angle in Mumbai, Grade S275 Equal Angle Stockist, Grade S355J2 Equal Angle Exporter & Stockist in Mumbai, India.
Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Structural Equal Angles, these are also known as Equal Leg Angles or simply Angle Sections, are structural steel sections with two legs of equal length forming a right angle (90 degrees).
These Equal Angles are distinguished by their identical leg lengths, which contribute strength and stability to the construction. They are commonly employed in applications that require great tensile strength and resistance to corrosion, including as building frames, bridges, and industrial machinery.
Structural equal angles are not only strong and durable, but also extremely adaptable. Fabricators and engineers prefer them because they are easily cut, drilled, and welded to meet specific design needs. They are often treated with a protective coating, such as galvanizing or epoxy, to prevent rust and decay. This makes them well-suited for use in harsh environments, such as coastal areas, chemical plants, and outdoor infrastructure projects. They are also available in a variety of sizes, from little to huge, to meet various project requirements.
Structural equal angles are manufactured in numerous phases, including rolling, cutting, and finishing. The rolling process comprises heating and shaping the steel to the appropriate angle shape. The cutting process entails reducing the angles to the desired length, whereas the finishing step comprises polishing the surface to prevent corrosion and enhance beauty.
Key Features of Equal Angles
- Equal Leg Lengths : Both sides of the angle have the same dimension.
- 90-Degree Angle : Forms a right-angle shape, making it ideal for load-bearing applications.
- Parameters : Leg Length × Leg Length × Thickness (e.g., 50 × 50 × 5 mm)
Equal Angles Stockists in UK, Equal Angles Supplier in India, BS EN 10025-2:2004 Equal Angles Exporter, SANS 50025/EN 10025 Grade S355JR Equal Angles Exporters, SS355J2 Equal Angles Stockist in Mumbai, India.
Standard of Equal Angles
Associated Standard: BS EN 10025-2:2004
Dimensions and properties: BS4-1:2005
Equal Angles Specifications
| Product Name | Equal Angles |
| Grades | S355JR, S355JO, S355J2, S275JR |
| Size Range (mm) | 100x50x10 mm to 356 x 406 mm |
| Thickness (mm) | 3 mm to 25 mm |
| Finish | Hot-rolled, galvanized, or as specified by customer |
| Application | Building Construction, Infrastructure Projects, Offshore Platforms, Stadiums and Public Areas, Parking Structures, Architectural Features, Renovation and Reinforcement |
Types of EN 10219 S355J2H Hollow Section Square
S355JR, S355JO, S355J2, S275JR Equal Angles/ Equal Leg Angles
Equal Angles Chemical Composition
| Element | C | Cu | Fe | Mn | P | S |
| Percentage | 0.26 | 0.2 | 99 | 0.75 | 0.04 max | 0.05 max |
Equal Angles Dimensions, Properties & Size Chart
| Serial Size A x A x t mm x mm x mm |
Mass per metre kg/m |
Area of section cm 2 |
Distance to centre of gravity C cm |
Second moment of area Axis x-x, y-y cm4 |
Radius of gyration Axis x-x, y-y cm |
Elastic modulus Axis x-x, y-y cm3 |
|---|---|---|---|---|---|---|
| 50x50x6 | 4.47 | 5.69 | 1.45 | 12.8 | 1.5 | 3.61 |
| 50x50x8 | 5.82 | 7.41 | 1.52 | 16.3 | 1.48 | 4.68 |
| 60x60x6 | 5.42 | 6.91 | 1.69 | 22.8 | 1.82 | 5.29 |
| 60x60x8 | 7.09 | 9.03 | 1.77 | 29.2 | 1.8 | 6.89 |
| 70x70x6 | 6.38 | 8.13 | 1.83 | 36.9 | 2.13 | 7.27 |
| 70x70x8 | 8.36 | 10.6 | 2.01 | 47.5 | 2.11 | 9.52 |
| 80x80x6 | 7.34 | 9.25 | 2.17 | 55.8 | 2.44 | 9.57 |
| 80x80x8 | 9.63 | 12.3 | 2.26 | 72.2 | 2.43 | 12.6 |
| 80x80x10 | 11.9 | 15.1 | 2.34 | 87.5 | 2.41 | 15.4 |
| 90x90x7 | 9.61 | 12.2 | 2.45 | 92.6 | 2.75 | 14.1 |
| 90x90x8 | 10.9 | 13.9 | 2.5 | 104 | 2.74 | 16.1 |
| 90x90x10 | 13.4 | 17.1 | 2.58 | 127 | 2.72 | 19.8 |
| 90x90x12 | 15.9 | 20.3 | 2.66 | 149 | 2.71 | 23.5 |
| 100x100x8 | 12.2 | 15.5 | 2.74 | 145 | 3.06 | 19.9 |
| 100x100x10 | 15 | 19.2 | 2.82 | 177 | 3.04 | 24.6 |
| 100x100x12 | 17.8 | 22.7 | 2.9 | 207 | 3.02 | 29.1 |
| 100x100x15 | 21.9 | 28 | 3.02 | 250 | 2.99 | 35.8 |
| 120x120x8 | 14.7 | 18.8 | 3.24 | 259 | 3.71 | 29.5 |
| 120x120x10 | 18.2 | 23.2 | 3.31 | 313 | 3.67 | 36 |
| 120x120x12 | 21.6 | 27.5 | 3.4 | 368 | 3.65 | 42.7 |
| 120x120x15 | 26.6 | 34 | 3.52 | 448 | 3.63 | 52.8 |
| 150x150x10 | 23 | 29.3 | 4.03 | 624 | 4.62 | 56.9 |
| 150x150x12 | 27.3 | 34.8 | 4.12 | 737 | 4.6 | 67.7 |
| 150x150x15 | 33.8 | 43 | 4.25 | 898 | 4.57 | 83.5 |
| 150x150x18 | 40.1 | 51.2 | 4.38 | 1060 | 4.55 | 99.8 |
| 200x200x16 | 48.5 | 61.8 | 5.52 | 2340 | 6.16 | 162 |
| 200x200x18 | 54.3 | 69.1 | 5.6 | 2600 | 6.13 | 181 |
| 200x200x20 | 59.9 | 76.3 | 5.68 | 2850 | 6.11 | 199 |
| 200x200x24 | 71.1 | 90.6 | 5.84 | 3330 | 6.06 | 235 |
| Flange thickness (F) | Web thickness (Wb) | ||||||
|---|---|---|---|---|---|---|---|
| Tolerance band | Tol (mm) | Tolerance band | Tol ± (mm) | ||||
| 6.5 | – | 10 | +2 -1 | 4 | – | 7 | 0.7 |
| 10.0 | – | 20 | +2.5 -1.5 | 7 | – | 10 | 1.0 |
| 20.0 | – | 30 | +2.5 -2 | 10 | – | 20 | 1.5 |
| Squareness of section | Web off centre (F &40) | ||||
|---|---|---|---|---|---|
| Tolerance band | Tol (mm) | Tolerance band | Tol (mm) | ||
| B &110 | 1.5 | B &110 | 2.5 | ||
| B 110 | 2% max 6.5 | 110 | – | 325 | 3.5 |
| Bar Length (L) m | Tol (mm) | ||
|---|---|---|---|
| 6 | – | 14 | +100 -0 |
Are you trying to find reliable Equal Angles manufacturers?
You're in the proper location !
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
