Structural HEA Beam
HEA (IPBL) - European Wide Flange Beams
HEA (IPBL)- EUROPEAN WIDE FLANGE BEAMS MANUFACTURER & SUPPLIER IN MUMBAI, INDIA.
HEA Beams, European Standard S235J2 HEA Beams, European Steel BN S420 HEA Beams, HEA (IPBL) Beams Supplier, HEA (IPBL) Beams, HEA (IPBL) Profiles, S355J2 Wide Flange Beam, DIN 1026 - HEA (IPBL) Beams, EN S355J2 Wide Flange Beam, Welded European Standard S235J2 Hea Beams, S235JR HEA Beams, S355J2 Wide Flange Beam, Wide Flange Beams, HEA (IPBL) Beams Exporter in Mumbai, India.

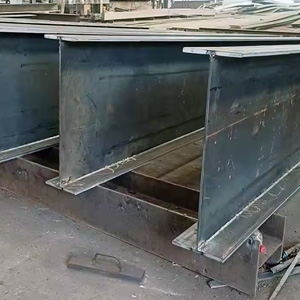

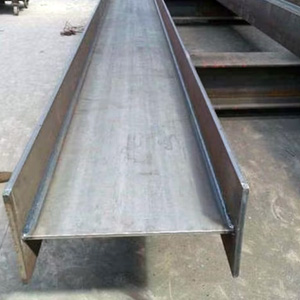

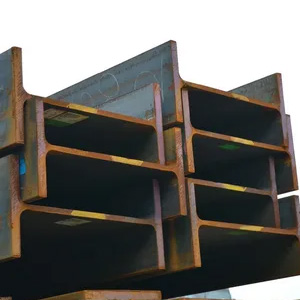

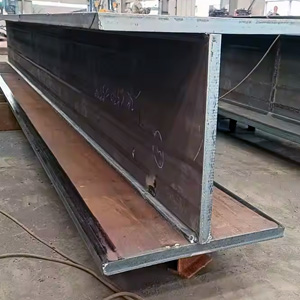

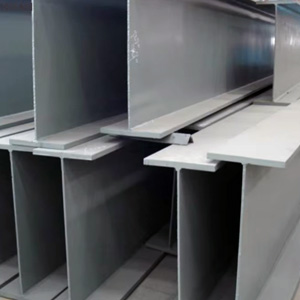

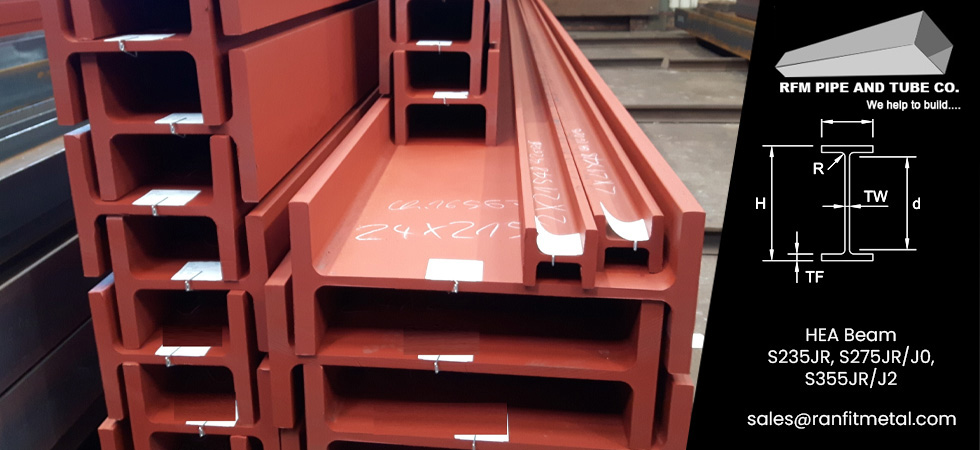

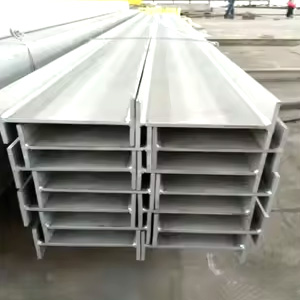

Ranfit Metal is a well-known manufacturer, supplier, and stockiest of HEB (IPBL) European Wide Flange Beams, these are a type of structural steel profile widely used in construction and engineering projects. These beams have an "I" or "H" cross-section, which is characterized by a vertical web and two horizontal flanges.
HEA beams are available in a range of dimensions, from HEA 100 to HEA 1000, with varying heights, widths, and web thicknesses. The dimensions of HEA beams are standardized according to European norms, ensuring compatibility and interchangeability across different regions.
HEA beams are widely used in a variety of construction projects, including commercial and residential buildings, bridges, highways, and industrial facilities. They are particularly suitable for applications that require high strength, stiffness, and resistance to corrosion.
The HEA (IPBL) European Wide Flange Beams are a type of steel beam used in construction and engineering projects. They are characterized by their H-shaped cross-section, which provides exceptional strength and stability. The IPBL designation stands for "IPE Broad Flange," which refers to the beam's broad flange and I-shaped cross-section.
HEA (IPBL) European Wide Flange Beams are a versatile and reliable choice for construction projects. Their unique properties, dimensions, and applications make them an ideal solution for engineers, architects, and builders. By understanding the benefits and advantages of HEA beams, construction professionals can design and build structures that meet the demands of modern construction while minimizing costs and environmental impact.
HEA beams are available in various material grades
- S235JR: A general-purpose structural steel with a minimum yield strength of 235 MPa
- S275JR: A high-strength structural steel with a minimum yield strength of 275 MPa
- S355JR: A high-strength, low-alloy steel with a minimum yield strength of 355 MPa
- S420JR: A high-strength, low-alloy steel with a minimum yield strength of 420 MPa
Advantages of HEA Beam
- High Load-Bearing Capacity: Due to the wide flange and robust design, HEA beams can bear large loads with ease.
- Versatility: They are used in a wide variety of structural applications, from residential buildings to heavy industrial projects.
- Material Efficiency: The design maximizes the strength-to-weight ratio, making them cost-effective while maintaining structural integrity.
- Easy Installation: HEA (IPBL) beams are easy to install, saving time and labor costs on construction sites. This quick installation process is beneficial for meeting tight project deadlines.
- Durability: HEA (IPBL) beams have a long lifespan and require minimal maintenance. This durability ensures that your structure remains strong and stable for years to come.
DIN 1026-1 HEA (IPBL) Beams, HEA (IPBL) Beams Distributors in India, European Standard S235 Wide Flange Beam, HEA (IPBL) Beams Exporters, S235JR Wide Flange Beam, Welded European Standard S235J2 HEA Beams, HEA (IPBL) Beams Suppliers, S275J2 HEA Beams, European Standard Wide Flange H Beams, Wide Flange Beam, EN 10025-2 HEA (IPBL) Beams, Structural EN S235j0 HEA Beams, HEA (IPBL) Beams in Mumbai, India.
Key Features of HEA (IPBL) Beams
Shape: IPE profiles have a U-shaped cross-section with parallel flanges and a flat web.
Standardization: They are produced according to European standards, specifically the EN 10365 standard.
Material: Typically made from carbon steel or alloy steel, which provides high tensile strength and durability. such as S235, S275, S355.
IPE Profile Specifications
| Description | Structural Steel HEA (IPBL)- European Wide Flange Beams |
| Standard Steel | DIN EN 10025-2 |
| Steel Grade | S235JR, S275JR/J0, S355JR/J2 |
| Tolerances in Shape and Dimensions | EN 10034:2001. |
| Surface Standard | DIN EN 10163-3 |
| Dimensions | Straight bars with Height 30 mm and from 80 mm up to 140 mm. |
| Standard Length | 6000, 6100 mm / 12000, 12100 mm |
| Finish | Bright Annealed, Polished or Annealed and Pickled |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification supplementary test, Finishing &Identity Mark |
HEA (IPBL) Beams Grades Material Equivalent
| EU | US |
|---|---|
| S235 | A283C/ EN 1.0038 |
| S275 | A570Gr40 / EN 1.0044 |
| S355 | A572Gr50 / EN 1.0045 / EN 1.0577 |
HEA (IPBL) Beams Grades Chemical Composition
| Grade | C% | Mn% | P% | S% | Si% |
|---|---|---|---|---|---|
| S235 | 0.22 max | 1.60 max | 0.05 max | 0.05 max | 0.05 max |
| S275 | 0.25 max | 1.60 max | 0.04 max | 0.05 max | 0.05 max |
| S355 | 0.23 max | 1.60 max | 0.05 max | 0.05 max | 0.05 max |
HEA (IPBL) Beams Grades Mechanical Properties
| Structural Steel Grade at 16mm | Minimum Yield Strength at nominal thickness 16mm | |
|---|---|---|
| psi | N/mm2 (MPa) | |
| S235 | 33 000 | 235 N/mm2 |
| S275 | 36 000 | 275 N/mm2 |
| S355 | 50 000 | 355 N/mm2 |
Types of HEA (IPBL) Beams Grades Hollow Section Square
S235JR HEA (IPBL)- European Wide Flange Beams
S275JR HEA (IPBL)- European Wide Flange Beams
S275J0 HEA (IPBL)- European Wide Flange Beams
S355JR HEA (IPBL)- European Wide Flange Beams
S355J2 HEA (IPBL)- European Wide Flange Beams
HEA Beams Size Chart
| Name | Weight | Size (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| kg / ml | ||||||||
| Theoretical | Commercial | h1 | b | s | t | h2 | h3 | |
| HEA 100 | 16,7 | 17,1 | 96 | 100 | 5,0 | 8,0 | 80 | 56 |
| HEA 120 | 19,9 | 20,4 | 114 | 120 | 5,0 | 8,0 | 98 | 74 |
| HEA 140 | 24,7 | 25,3 | 133 | 140 | 5,5 | 8,5 | 116 | 92 |
| HEA 160 | 30,4 | 31,2 | 152 | 160 | 6,0 | 9,0 | 134 | 104 |
| HEA 180 | 35,5 | 36,4 | 171 | 180 | 6,0 | 9,5 | 152 | 122 |
| HEA 200 | 42,3 | 43,0 | 190 | 200 | 6,5 | 10,0 | 170 | 134 |
| HEA 220 | 50,5 | 52,0 | 210 | 220 | 7,0 | 11,0 | 188 | 152 |
| HEA 240 | 60,3 | 62,0 | 230 | 240 | 7,5 | 12,0 | 206 | 164 |
| HEA 260 | 68,2 | 70,0 | 250 | 260 | 7,5 | 12,5 | 225 | 177 |
| HEA 280 | 76,4 | 78,0 | 270 | 280 | 8,0 | 13,0 | 244 | 196 |
| HEA 300 | 88,3 | 90,0 | 290 | 300 | 8,5 | 14,0 | 262 | 208 |
| HEA 320 | 97,6 | 100,0 | 310 | 300 | 9,0 | 15,5 | 279 | 225 |
| HEA 340 | 105,0 | 108,0 | 330 | 300 | 9,5 | 16,5 | 297 | 243 |
| HEA 360 | 112,0 | 115,0 | 350 | 300 | 10,0 | 17,5 | 315 | 261 |
| HEA 400 | 125,0 | 128,0 | 390 | 300 | 11,0 | 19,0 | 352 | 298 |
| HEA 450 | 140,0 | 143,0 | 440 | 300 | 11,5 | 21,0 | 398 | 344 |
| HEA 500 | 155,0 | 159,0 | 490 | 300 | 12,0 | 23,0 | 444 | 390 |
| HEA 550 | 166,0 | 170,0 | 540 | 300 | 12,5 | 24,0 | 492 | 438 |
| HEA 600 | 178,0 | 182,0 | 590 | 300 | 13,0 | 25,0 | 540 | 486 |
| HEA 650 | 190,0 | 195,0 | 640 | 300 | 13,5 | 26,0 | 588 | 534 |
| HEA 700 | 204,0 | 210,0 | 690 | 300 | 14,5 | 27,0 | 636 | 582 |
| HEA 800 | 224,0 | 230,0 | 790 | 300 | 15,0 | 28,0 | 634 | 674 |
| HEA 900 | 252,0 | 258,0 | 890 | 300 | 16,0 | 30,0 | 830 | 770 |
| HEA 1000 | 272,0 | 278,0 | 990 | 300 | 16,5 | 31,0 | 928 | 868 |
HEA Beam Section Area
| Name | Section | Section module | |
|---|---|---|---|
| cm² | cm³ | ||
| F | Wx | Wy | |
| HEA 100 | 21,24 | 72,76 | 26,7 |
| HEA 120 | 25,34 | 106,3 | 38,4 |
| HEA 140 | 31,42 | 155,4 | 55,6 |
| HEA 160 | 38,77 | 220,1 | 76,9 |
| HEA 180 | 45,25 | 293,6 | 102,7 |
| HEA 200 | 53,83 | 388,6 | 133,6 |
| HEA 220 | 64,34 | 515,2 | 177,7 |
| HEA 240 | 76,84 | 675,1 | 230,7 |
| HEA 260 | 86,82 | 836,4 | 282,1 |
| HEA 280 | 97,26 | 1013,0 | 340,2 |
| HEA 300 | 112,50 | 1260,0 | 420,6 |
| HEA 320 | 124,4 | 1479,0 | 465,7 |
| HEA 340 | 133,50 | 1678,0 | 495,7 |
| HEA 360 | 142,80 | 1891,0 | 525,8 |
| HEA 400 | 159,00 | 2311,0 | 570,9 |
| HEA 450 | 178,00 | 2896,0 | 631,0 |
| HEA 500 | 197,50 | 3550,0 | 691,1 |
| HEA 550 | 211,80 | 4146,0 | 721,3 |
| HEA 600 | 226,50 | 4787,0 | 751,4 |
| HEA 650 | 241,60 | 5474,0 | 781,6 |
| HEA 700 | 260,50 | 6241,0 | 811,9 |
| HEA 800 | 285,80 | 7682,0 | 842,6 |
| HEA 900 | 320,50 | 9485,0 | 903,2 |
| HEA 1000 | 346,80 | 11190,0 | 933,6 |
Buy High Quality HEA Beam
Buy High Quality HEA Beam
Request the latest IPE Profile Price List.
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.
IPE Profile Steel Available Types
| Sructural Steel HEA Beams Plate Supplier | Grade Carbon Steel Plate |
| Square HEA Beams PHEA Beams Manufacturers in India | HEA Beams Profile Steel Plate price |
| High Strength HEA Beams Profile Steel Plates | S355J2 HEA Beams Profile Stockist in Mumbai |
| Carbon Steel HEA Beams plate Plate Suppliers in Mumbai | HEA Beams Profile Steel Plate Supplier & Stockist in India |
| DIN 1026 HEA Beams PROFILES Standards | HEA Beams European Standard Profiles plate Plate |
| HEA Beams Profile half plate Exporter | Large Diameter Plates Trader |
| HEA Beams Profile plate in india | HEA Beams Parallel Flange Exporter |
| DIN 1026 plate price per kg at Best Price | high tensile 1026 HEA Beams Profile steel plate |
| S355J2 JIS Mild Steel Plate | Hot Rolled HEA Beams Profile Steel Plate |
| HEA Beams Profile Steel Plates | Plates Dealer in India |
DIN Profile – Application Industrty
- Petrochemical Industry
- Aerospace Industry
- Refineries
- Construcion
- Chemical Industry
- Railway Industry
- Oil & Gas Industry
- Ship Building
