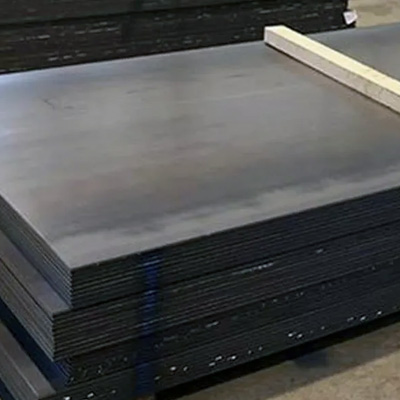

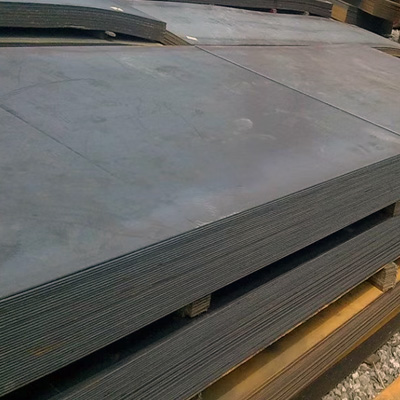

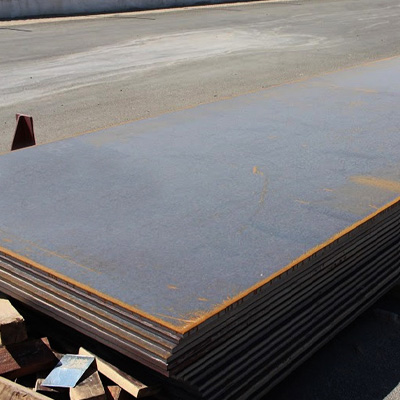

Ranfit Metal is a well-known manufacturer, supplier, and stockiest of Gr. EN8 Medium Carbon Steel Plates. EN8 is a medium carbon steel known for its good machinability, high strength, and excellent wear resistance.

EN8 Medium Carbon Steel Plates are widely used for engineering and industrial applications due to its excellent strength, toughness, and wear resistance.

EN8 steel plates have a high tensile strength. They are appropriate for applications requiring a strong and durable material. They have extraordinary hardness. Parts that degrade quickly require this level of hardness. The plates are quite durable. They can absorb a significant amount of energy before shattering. This capability is critical for applications involving impact and shock loads. EN8 CS Plates can be heat treated. This enhances their qualities, like as hardening and tempering, to fit specific needs. EN8 plates are both strong and durable. They make machine parts, gears, and crankshafts. They also manufacture numerous additional industrial components. You can easily cut, weld, and mill these plates. This gives manufacturers more options. EN8 plates have worse corrosion resistance than stainless steel.

The most frequent heat treatment techniques for EN8 Hot Rolled Carbon Plates are Annealing is the process of heating steel to a temperature of 800-900°C, followed by slow cooling to reduce the danger of cracking and enhance machinability. Normalizing is the process of heating steel to 850-950°C and then cooling it with air to enhance its microstructure and mechanical qualities. Quenching and tempering- This process involves heating the steel to 800-900°C, then rapidly cooling to increase hardness and strength.

Key Features of Gr. EN8 Specification

Steel Number: 1.0503

International Standards: EN8 (ISO) | 1045 (AISI/SAE) | G10450 (UNS) | AF65EN8/EN8 (AFNOR) | 080M46/50HS (BS) | EN8K (UNE) | 1650 (SIS) | EN8 (UNI) | S45C (JIS)

Gr. EN8 Medium Carbon Steel Plates Specifications

Gr. EN8 Medium Carbon Steel Plates Equivalent Grades

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	England BS	Italy UNI	Spain UNE	China GB	Sweden SS	Poland PN	Czechia CSN	Austria ONORM	Russia GOST	Inter ISO
EN8	1042/1045/Gr.1043	EN8	S45C	AF65EN8 EN8	070M46 50HS	1EN8 EN8	EN8k	45	1650	45	12050	EN8SW	45	EN8

EN8 Medium Carbon Steel Plates Chemical Composition

Carbon (C)	0.42 - 0.50%
Silicon (Si)	0.10 - 0.40%
Manganese (Mn)	0.50 - 0.80%
Phosphorus (P)	≤ 0.040%
Sulfur (S)	≤ 0.040%
Chromium (Cr)	0.20-0.40%
Copper (Cu)	0.25% max
Nickel (Ni)	0.30% max
Molybdenum (Mo)	0.10-0.30%

EN8 Medium Carbon Steel Plates Mechanical Properties in Quenched+Tempered Condition

Grade	Diameter d (mm)	Thickness t (mm)	0.2 % proof stress (N/mm2)	Tensile strength (N/mm2)	Elongation A5 (%)	Reduction Z (%)
EN8	16	8	min. 490	700-850	min. 14	min. 35
	17-40	8=20	min. 430	650-800	min. 16	min. 40
	41-100	20=60	min. 370	630-780	min. 17	min. 45

EN8 Medium Carbon Steel Plates Mechanical Properties in Normalized Condition

Grade	Diameter d (mm)	Thickness t (mm)	0.2 % proof stress (N/mm2)	Tensile strength (N/mm2)	Elongation A5 (%)
EN8 Medium Carbon Steel	16	16	min. 390	min. 620	min. 14
	17-100	16=100	min. 305	min. 305	min. 16
	101-250	100250	min. 275	min. 560	min. 16

EN8 Medium Carbon Steel Plates Physical Properties

Element	Density	Electrical conductivity	Coefficient of thermal expansion	Thermal conductivity	Specific heat capacity
EN8	7.85 g/cm	4.76 m/5 Ω/ mm.	11.5 K-1 / 10-6	34.2 W/m / K	480 J/Kg/K

Types of Gr. EN8 Hollow Section Square

EN8 Medium Carbon Steel Plates Size Range

Are you trying to find reliable EN8 Mediaum Carbon Steel Plates manufacturers?

You're in the proper location!
Please call us : +91 9987673092
mail us : sales@ranfitmetal.com
to request the updated price list and ready stock information along with your requirement.

Steel Plate EN8 RHS Available Types

EN8 Medium Carbon Steel Plates – Application Industrty
